Handwheels disc without grip

Item description/product images

DescriptionMaterial:

Black thermoset PF 31.
Hub nickel-plated steel or bright 1.4305 stainless steel.

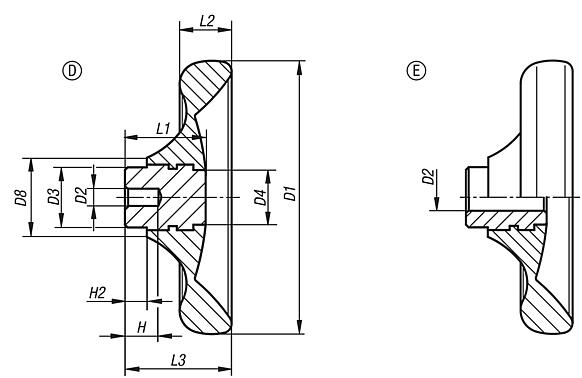

Version:High-gloss polished.On request:Other reamed hole sizes.Drawing reference:

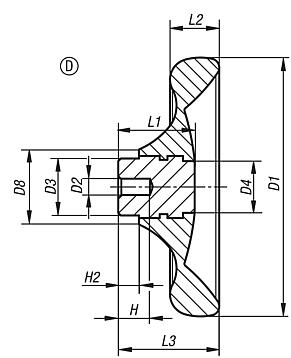

Form D: pilot hole

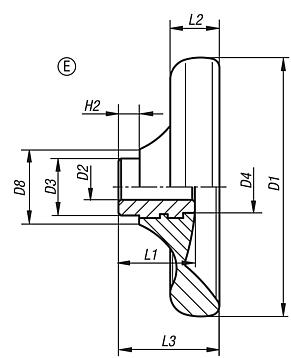

Form E: reamed hole

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Order No.	Version 1	Form	D1	D2	D3	D4	D8	H	H2	L1	L2	L3	Price
06288-0100X06	pre-drilled	D	100	6	22	20	29	12	8	29,5	19	39	on request
06288-0125X08	pre-drilled	D	125	8	26	21	34	15	8	34	24	46	on request
06288-0140X08	pre-drilled	D	140	8	30	25	39	16	8	38,5	27	52	on request
06288-0160X10	pre-drilled	D	160	10	33	30	43	20	8	41,3	30,1	57	on request

Order No.	Version 1	Form	D1	D2	D3	D4	D8	H2	L1	L2	L3	Price
06288-1100X10	reamed hole	E	100	10H8	22	20	29	8	29,5	19	39	on request
06288-1125X12	reamed hole	E	125	12H8	26	21	34	8	34	24	46	on request
06288-1140X14	reamed hole	E	140	14H8	30	25	39	8	38,5	27	52	on request
06288-1160X16	reamed hole	E	160	16H8	33	30	43	8	41,3	30,1	57	on request
06288-1160X18	reamed hole	E	160	18H8	33	30	43	8	41,3	30,1	57	on request

Order No.	Version 1	Form	D1	D2	D3	D4	D8	H	H2	L1	L2	L3	Price
06288-2100X06	pre-drilled	D	100	6	22	20	29	12	8	29,5	19	39	on request
06288-2125X08	pre-drilled	D	125	8	26	21	34	15	8	34	24	46	on request
06288-2140X08	pre-drilled	D	140	8	30	25	39	16	8	38,5	27	52	on request
06288-2160X10	pre-drilled	D	160	10	33	30	43	20	8	41,3	30,1	57	on request

Order No.	Version 1	Form	D1	D2	D3	D4	D8	H2	L1	L2	L3	Price
06288-3100X10	reamed hole	E	100	10H7	22	20	29	8	29,5	19	39	on request
06288-3125X12	reamed hole	E	125	12H7	26	21	34	8	34	24	46	on request
06288-3140X14	reamed hole	E	140	14H7	30	25	39	8	38,5	27	52	on request
06288-3160X16	reamed hole	E	160	16H7	33	30	43	8	41,3	30,1	57	on request
06288-3160X18	reamed hole	E	160	18H7	33	30	43	8	41,3	30,1	57	on request
