Conical griprevolving
 06314

Conical grip revolving

 go back

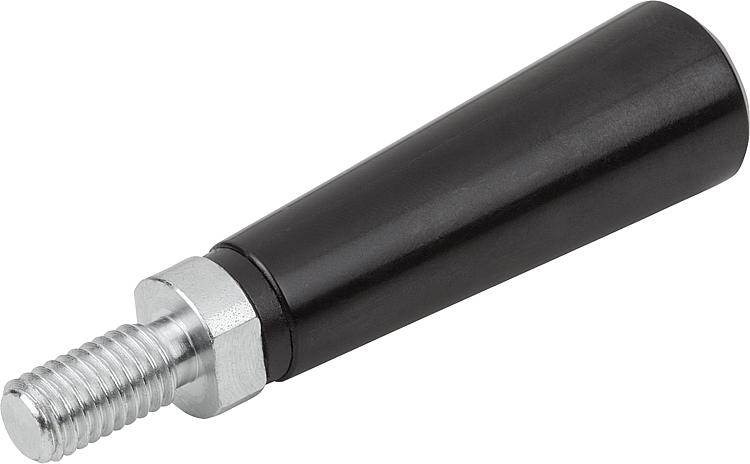

Item description/product images
DescriptionMaterial:Black thermoset PF 31.
Axle steel.Version:Centre pin electro zinc-plated.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 06314 Conical griprevolving 140 kB

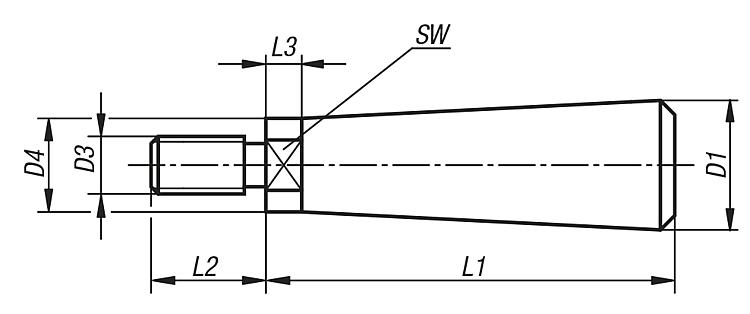

Drawings

Conical griprevolving

Item selection/filter
Order No.

D1D3D4L1L2L3SWCADAcc.PriceOrder
06314-1818M8135716511 on request
06314-2320M10166920513 on request
