        Taper grips

Item description/product images

Show/filter all items

DescriptionMaterial:Thermoset PF 31, black.
Steel bush and stud, electro zinc-plated.Version:High-gloss polished.On request:Other colours.Drawing reference:

Form C: moulded internal thread
Form E: tapped bush

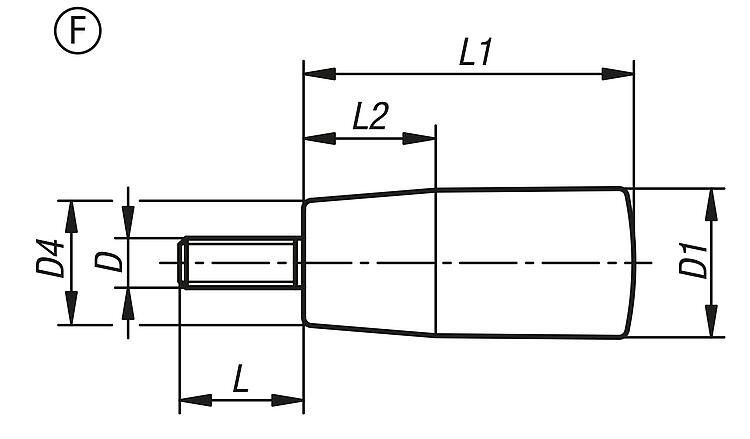

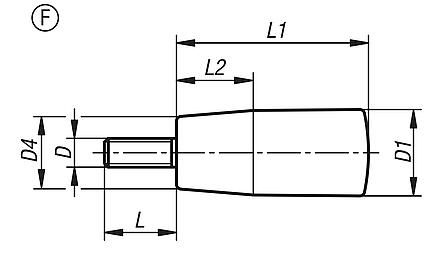

Form F: external thread

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06319 Taper grips

106 kB

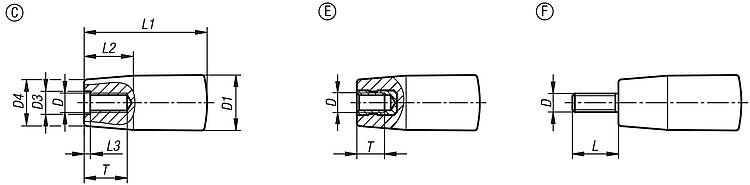

Drawings (total overview)

Taper grip with moulded thread, Form C

More information

Drawings

Item selection/filter

	C	M6 M8 M10	18 23 28	6,2 8,5 10,5	15 19 22	40 65 90	16 24 32	2 3,5	14 18 22				Reset
Order No.	Form	D	D1	D3	D4	L1	L2	L3	T	CAD	Acc.	Price	Order
06319-10618	C	M6	18	6,2	15	40	16	2	14			on request
06319-10818	C	M8	18	8,5	15	40	16	2	18			on request
06319-10823	C	M8	23	8,5	19	65	24	2	18			on request
06319-11028	C	M10	28	10,5	22	90	32	3,5	22			on request

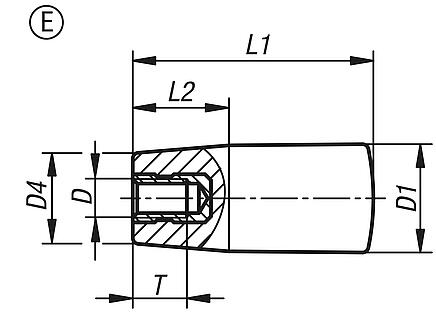

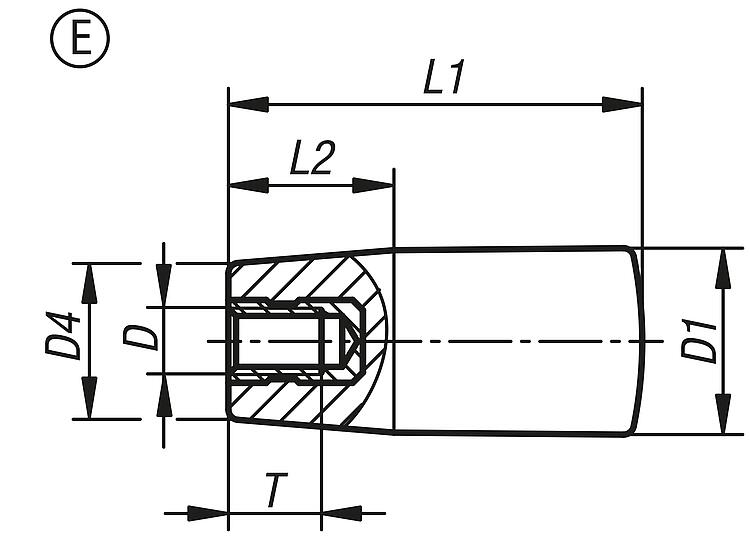

Taper grips with tapped bush, Form E

More information

Drawings

Item selection/filter

	E	M5 M6 M8 M10	18 23 28	15 19 22	40 65 90	16 24 32	7,5 9 12 15				Reset
Order No.	Form	D	D1	D4	L1	L2	T	CAD	Acc.	Price	Order
06319-20518	E	M5	18	15	40	16	7,5			on request
06319-20618	E	M6	18	15	40	16	9			on request
06319-20823	E	M8	23	19	65	24	12			on request
06319-20828	E	M8	28	22	90	32	12			on request
06319-21028	E	M10	28	22	90	32	15			on request
