06325-01Cylindrical grips, plastic revolving |
go back |
|
|
DescriptionProduct description:Cylindrical grips are supplied assembled and can be screwed onto handwheels, crank handles, etc.
The grooves and conical shape ensure that the cylindrical grips have optimised haptics and good grip.Material:Grip thermoplastic.
Centre pin steel grade 5.8 or stainless steel 1.4404. Version:Grip, black.
Steel parts, black oxidised.
Stainless steel bright.Advantages:Optimised haptics and good grip
Grips for handwheels and cranks
Various thread sizesSpecial features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

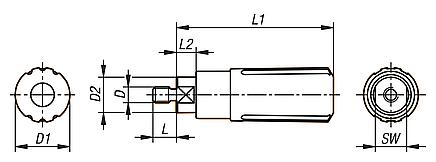

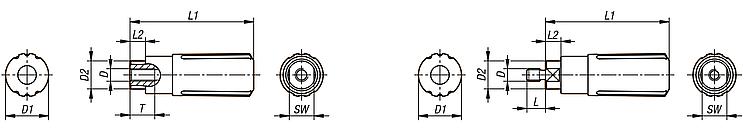

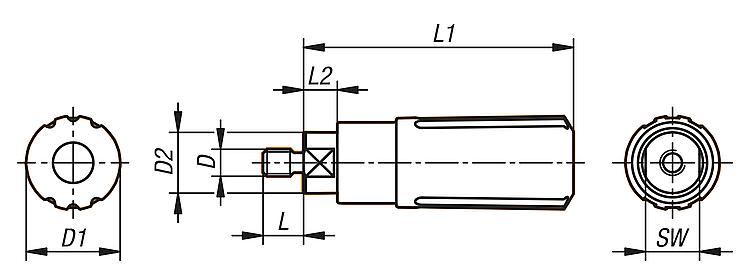

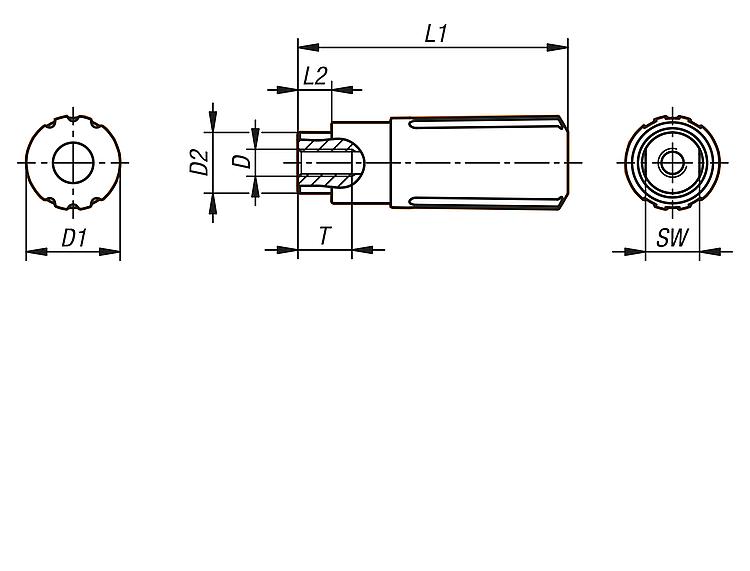

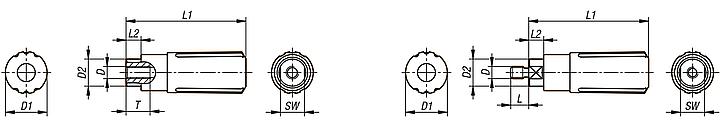

Drawings (total overview) |
| Order No. | Thread type | Component
material | Size | D
| D1 | D2 | L1 | L2 | T | SW | CAD | Acc. | Price | Order |
|---|
| 06325-01-1104 | internal thread | steel | 1 | M4 | 14 | 9 | 40 | 5 | 8 | 8 |  | | on request | | | 06325-01-1205 | internal thread | steel | 2 | M5 | 16 | 11 | 49,1 | 5,1 | 10 | 10 | | | on request | | | 06325-01-1306 | internal thread | steel | 3 | M6 | 20 | 14 | 61,4 | 6,4 | 12 | 12 | | | on request | | | 06325-01-1408 | internal thread | steel | 4 | M8 | 25 | 18 | 82,5 | 12,5 | 16 | 15 | | | on request | | | 06325-01-3104 | internal thread | stainless steel | 1 | M4 | 14 | 9 | 40 | 5 | 8 | 8 | | | on request | | | 06325-01-3205 | internal thread | stainless steel | 2 | M5 | 16 | 11 | 49,1 | 5,1 | 10 | 10 | | | on request | | | 06325-01-3306 | internal thread | stainless steel | 3 | M6 | 20 | 14 | 61,4 | 6,4 | 12 | 12 | | | on request | | | 06325-01-3408 | internal thread | stainless steel | 4 | M8 | 25 | 18 | 82,5 | 12,5 | 16 | 15 | | | on request | |
|
| Order No. | Thread type | Component
material | Size | D
| D1 | D2 | L | L1 | L2 | SW | CAD | Acc. | Price | Order |
|---|
| 06325-01-104 | external thread | steel | 1 | M4 | 14 | 9 | 6 | 40 | 5 | 8 | | | on request | | | 06325-01-205 | external thread | steel | 2 | M5 | 16 | 11 | 7,5 | 49,1 | 5,1 | 10 | | | on request | | | 06325-01-306 | external thread | steel | 3 | M6 | 20 | 14 | 9 | 61,4 | 6,4 | 12 | | | on request | | | 06325-01-408 | external thread | steel | 4 | M8 | 25 | 18 | 12 | 82,5 | 12,5 | 15 | | | on request | | | 06325-01-2104 | external thread | stainless steel | 1 | M4 | 14 | 9 | 6 | 40 | 5 | 8 | | | on request | | | 06325-01-2205 | external thread | stainless steel | 2 | M5 | 16 | 11 | 7,5 | 49,1 | 5,1 | 10 | | | on request | | | 06325-01-2306 | external thread | stainless steel | 3 | M6 | 20 | 14 | 9 | 61,4 | 6,4 | 12 | | | on request | | | 06325-01-2408 | external thread | stainless steel | 4 | M8 | 25 | 18 | 12 | 82,5 | 12,5 | 15 | | | on request | |
|
