Ball grips revolving

Item description/product images

DescriptionMaterial:

Ball thermoset PF 31.
Bush and screw steel or stainless steel 1.4305.

Version:Ball black glossy.
Steel trivalent blue passivated.
Stainless steel bright.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

	steel stainless steel	5 6 8 10	M6 M8 M10 M12	25 32 40 50	10 13 16 20	22,5 29,5 37 47	15 19 24 31	5 6 8 12	11 13 14 21	8 10 13 17	3 4 5 6				Reset

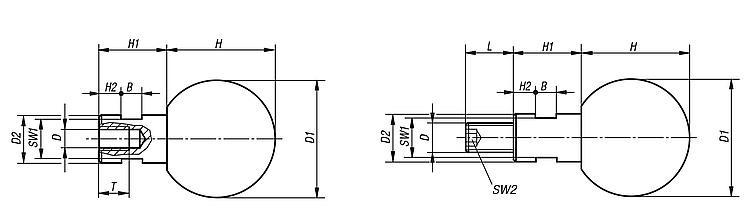

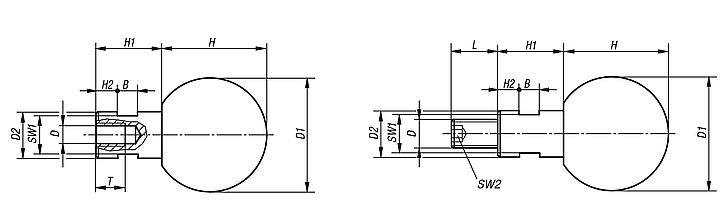

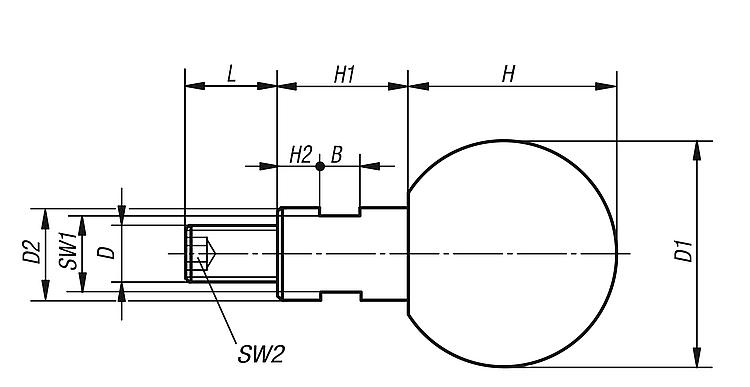

Order No.	Component material	B	D	D1	D2	H	H1	H2	L	SW1	SW2	CAD	Acc.	Price	Order
06353-061	steel	5	M6	25	10	22,5	15	5	11	8	3			on request
06353-081	steel	6	M8	32	13	29,5	19	6	13	10	4			on request
06353-101	steel	8	M10	40	16	37	24	8	14	13	5			on request
06353-121	steel	10	M12	50	20	47	31	12	21	17	6			on request
06353-1061	stainless steel	5	M6	25	10	22,5	15	5	11	8	3			on request
06353-1081	stainless steel	6	M8	32	13	29,5	19	6	13	10	4			on request
06353-1101	stainless steel	8	M10	40	16	37	24	8	14	13	5			on request
06353-1121	stainless steel	10	M12	50	20	47	31	12	21	17	6			on request

	steel stainless steel	5 6 8 10	M6 M8 M10 M12	25 32 40 50	10 13 16 20	22,5 29,5 37 47	15 19 24 31	5 6 8 12	8 10 13 17	12,5 15 19 21,5				Reset

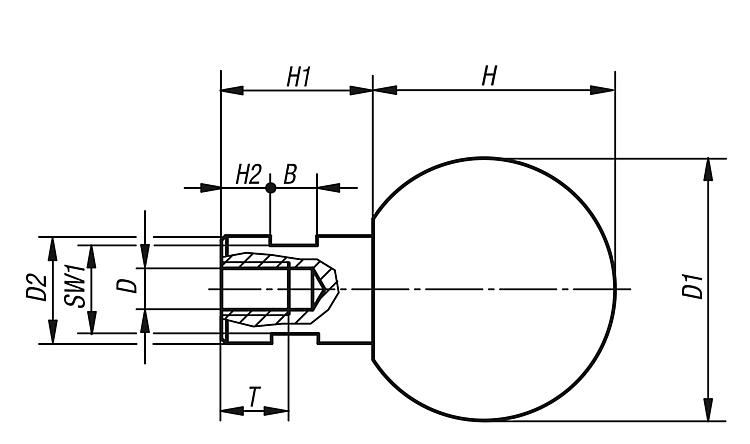

Order No.	Component material	B	D	D1	D2	H	H1	H2	SW1	T	CAD	Acc.	Price	Order
06353-060	steel	5	M6	25	10	22,5	15	5	8	12,5			on request
06353-080	steel	6	M8	32	13	29,5	19	6	10	15			on request
06353-100	steel	8	M10	40	16	37	24	8	13	19			on request
06353-120	steel	10	M12	50	20	47	31	12	17	21,5			on request
06353-1060	stainless steel	5	M6	25	10	22,5	15	5	8	12,5			on request
06353-1080	stainless steel	6	M8	32	13	29,5	19	6	10	15			on request
06353-1100	stainless steel	8	M10	40	16	37	24	8	13	19			on request
06353-1120	stainless steel	10	M12	50	20	47	31	12	17	21,5			on request
