        Crank handles aluminium with fold-away cylinder grip

Item description/product images

Show/filter all items

DescriptionMaterial:Crank aluminium.
Cylinder grip thermoplastic and steel.Version:Crank black powder-coated.
Thermoplastic black grey.
Steel parts black oxidised.Note:Similar to DIN 469.
Versions with transverse bore are secured using the ISO 4027 (DIN 914) grub screw.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06503 Crank handles aluminium with fold-away cylinder grip

238 kB

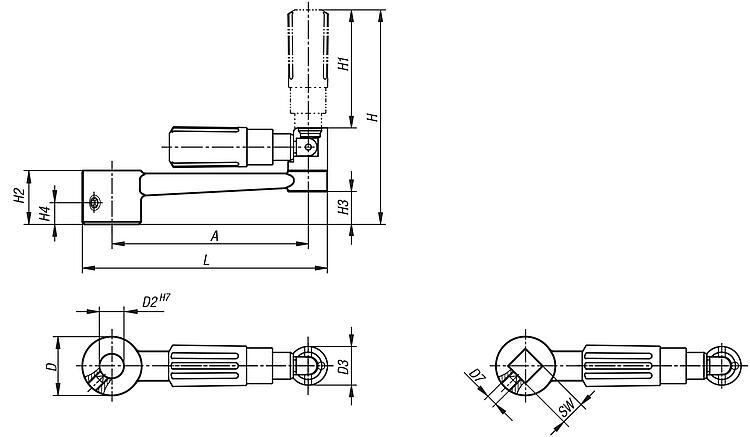

Drawings (total overview)

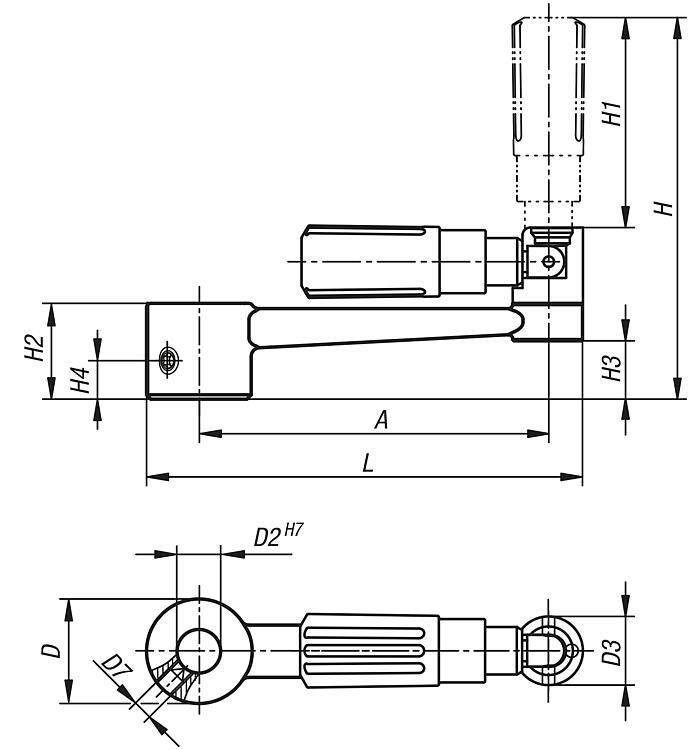

Crank handles aluminium with fold-away cylinder grip and reamed hole

More information

Drawings

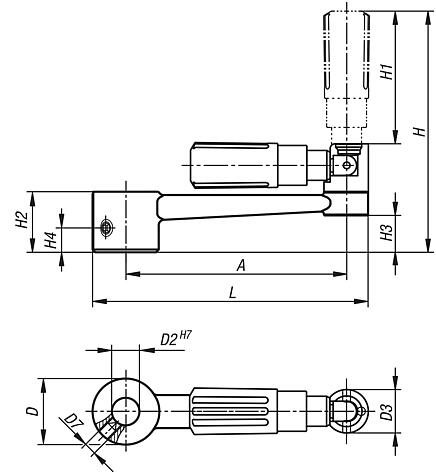

Crank handles aluminium with fold-away cylinder grip and reamed hole

Item selection/filter

Order No.	Version 1	Version 2	A	D	D2	D3	D7	H	H1	H2	H3	H4	L	Price
06503-1110	reamed hole	without transverse hole	80	24	10	16	-	89	49	22	13,4	-	100	on request
06503-1212	reamed hole	without transverse hole	100	28	12	20	-	108	59,5	26	16	-	124	on request
06503-1314	reamed hole	without transverse hole	125	30	14	25	-	140	83	28	15,8	-	153	on request
06503-1417	reamed hole	without transverse hole	160	34	17	25	-	144	83	32	19,6	-	190	on request
06503-11106	reamed hole	with transverse bore	80	24	10	16	M6	89	49	22	13,4	7,5	100	on request
06503-12126	reamed hole	with transverse bore	100	28	12	20	M6	107,9	59,4	26	16	7,5	124	on request
06503-13146	reamed hole	with transverse bore	125	30	14	26	M6	140,5	83,5	28	15,8	7,5	153	on request
06503-14176	reamed hole	with transverse bore	160	34	17	26	M6	144,5	83,5	32	19,6	7,5	190	on request

Crank handles aluminium with safety cylinder grip and square socket

More information

Drawings

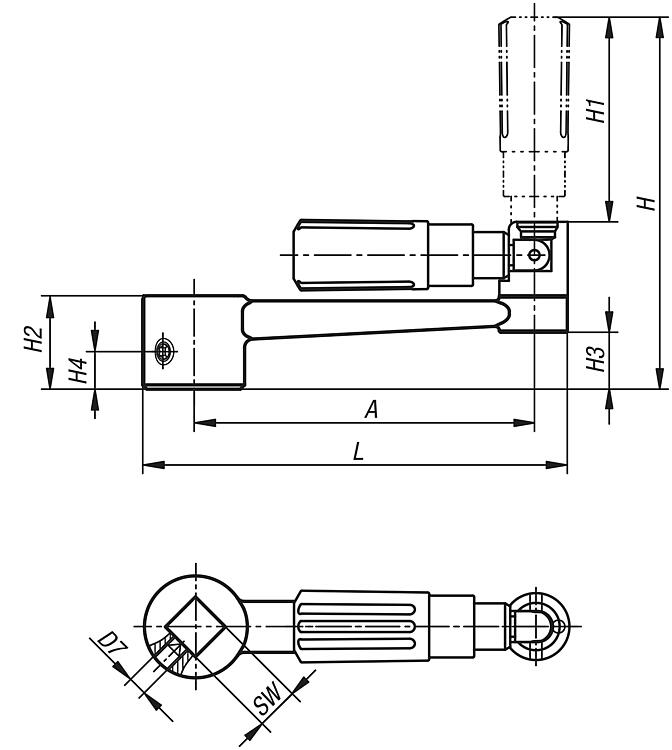

Crank handles aluminium with safety cylinder grip and square socket

Item selection/filter

Order No.	Version 1	Version 2	A	D	D3	D7	H	H1	H2	H3	H4	L	SW	Price
06503-2110	square socket	without transverse hole	80	24	16	-	89	49	22	13,4	-	100	10	on request
06503-2212	square socket	without transverse hole	100	28	20	-	108	59,5	26	16	-	124	12	on request
06503-2314	square socket	without transverse hole	125	30	25	-	140	83	28	15,8	-	153	14	on request
06503-2417	square socket	without transverse hole	160	34	25	-	144	83	32	19,6	-	190	17	on request
06503-21106	square socket	with transverse bore	80	24	16	M6	89	49	22	13,4	7,5	100	10	on request
06503-22126	square socket	with transverse bore	100	28	20	M6	107,9	59,4	26	16	7,5	124	12	on request
06503-23146	square socket	with transverse bore	125	30	26	M6	140,5	83,5	28	15,8	7,5	153	14	on request
06503-24176	square socket	with transverse bore	160	34	26	M6	144,5	83,5	32	19,6	7,5	190	17	on request
