Pull handles, round cast iron

06895

Pull handles, round cast iron

Products
- Product overview
  - Flexible standard component system
    - Operating parts
      - Pull handles, tubular handles and recessed handles
        Pull handles, round cast iron

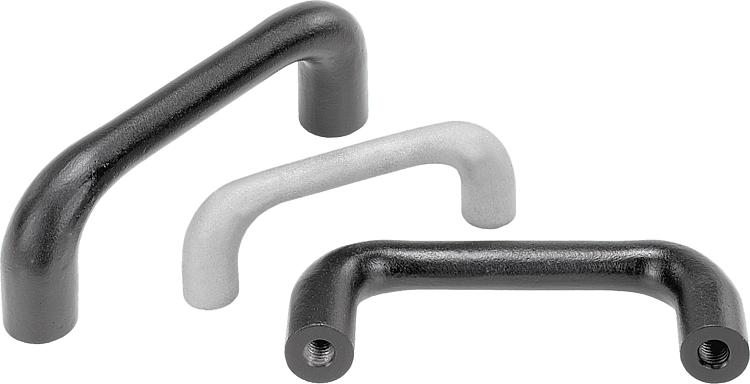

Item description/product images

DescriptionMaterial:GJS 400Version:Vibratory ground or black powder-coated.
End faces machined.Assembly:From the rear.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06895 Pull handles, round cast iron

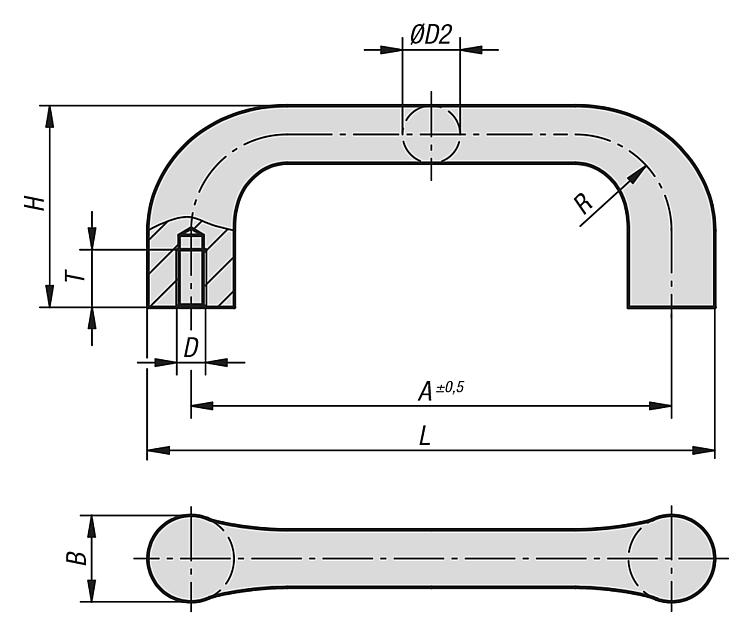

Drawings

Pull handles, round cast iron

Item selection/filter

Order No.	Main colour	A	B	D	D2	H	L	R	T	Load capacity N	CAD	Acc.	Price	Order
06895-10006	bright	100	18	M6	12	42	118	20	12	1000			on request
06895-11208	bright	112	20	M8	14	47	132	22	15	1000			on request
06895-12510	bright	125	22	M10	16	53	147	24	18	1000			on request
06895-14012	bright	140	25	M12	18	59	165	26	20	1000			on request
06895-100061	black	100	18	M6	12	42	118	20	12	1000			on request
06895-112081	black	112	20	M8	14	47	132	22	15	1000			on request
06895-125101	black	125	22	M10	16	53	147	24	18	1000			on request
06895-140121	black	140	25	M12	18	59	165	26	20	1000			on request
