        Pull handles, plastic, round, slanted both sides

Item description/product images

DescriptionMaterial:Thermoset PF 31, black.
Bushes brass or electro zinc-plated steel.Version:High-gloss polished.Assembly:From the rear.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06901 Pull handles, plastic, round, slanted both sides

244 kB

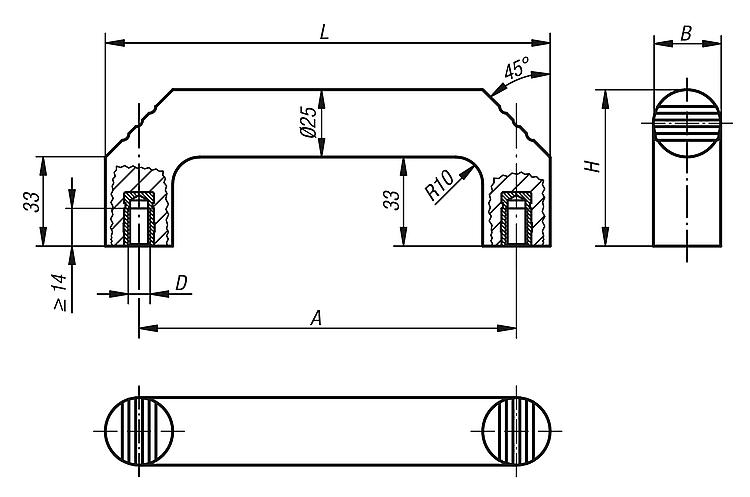

Drawings

Item selection/filter

Order No.	Component material	A	B	D	H	L	Load capacity N	CAD	Acc.	Price	Order
06901-114008	brass	140	25	M8	58	165	500			on request
06901-214008	steel	140	25	M8	58	165	500			on request
