07105Ball-end thrust screws without head with flattened ball, with... |
go back |
|
Item description/product images |
|
|

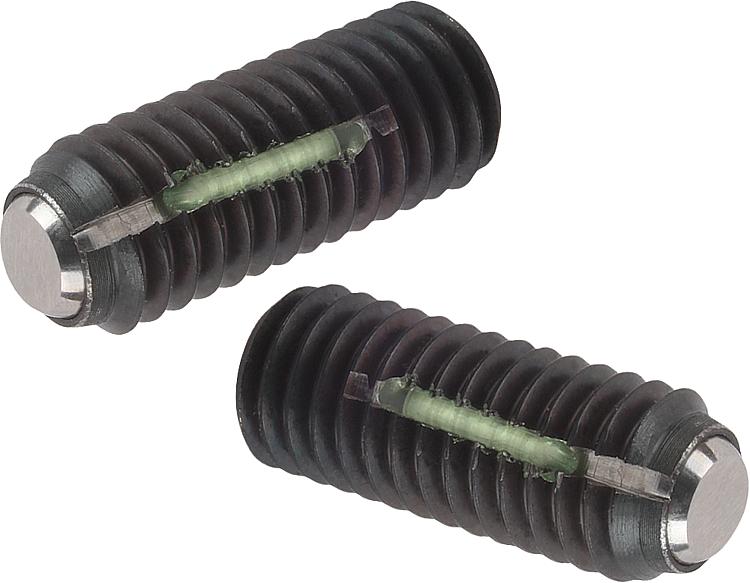

DescriptionMaterial:Screw carbon steel, grade 10.9
Ball, ball-bearing steel.
Thread lock nylon.Version:Screw black.

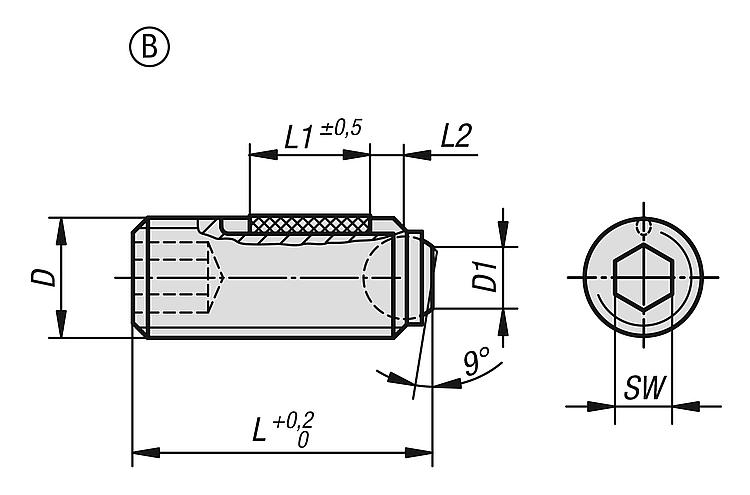

Ball hardened, bright.Note:Surfaces which are not flat and parallel can be firmly clamped or supported with a flattened ball, the movable ball can adapt itself up to 9°.Drawing reference:Form B: with flattened ball
L2 = approx. 2x pitch DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| | | | | | -
- 10,1
- 16,1
- 20,1
- 25,1
- 50,1
- 60,1
- 10,3
- 12,3
- 20,3
- 25,3
- 30,3
- 50,3
- 60,3
- 80,3
- 16,3
- 35,3
- 16,2
- 20,2
- 30,2
- 40,2
- 20
- 25
- 35
- 50
| | | | | | | | Reset |
|---|
| Order No. | Form | Component
material | D | D1 | L | L1 | Ball-Ø | SW | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| 07105-20610 | B | ball-bearing steel | M6 | 3 | 10,1 | 3,5 | 4 | 3 | 9 |  | | on request | | | 07105-20616 | B | ball-bearing steel | M6 | 3 | 16,1 | 7 | 4 | 3 | 9 | | | on request | | | 07105-20620 | B | ball-bearing steel | M6 | 3 | 20,1 | 7 | 4 | 3 | 9 | | | on request | | | 07105-20625 | B | ball-bearing steel | M6 | 3 | 25,1 | 7 | 4 | 3 | 9 | | | on request | | | 07105-20650 | B | ball-bearing steel | M6 | 3 | 50,1 | 7 | 4 | 3 | 9 | | | on request | | | 07105-20660 | B | ball-bearing steel | M6 | 3 | 60,1 | 7 | 4 | 3 | 9 | | | on request | | | 07105-20810 | B | ball-bearing steel | M8 | 4,1 | 10,3 | 3,5 | 5,5 | 4 | 10 | | | on request | | | 07105-20812 | B | ball-bearing steel | M8 | 4,1 | 12,3 | 5 | 5,5 | 4 | 10 | | | on request | | | 07105-20820 | B | ball-bearing steel | M8 | 4,1 | 20,3 | 8 | 5,5 | 4 | 15 | | | on request | | | 07105-20825 | B | ball-bearing steel | M8 | 4,1 | 25,3 | 8 | 5,5 | 4 | 15 | | | on request | | | 07105-20830 | B | ball-bearing steel | M8 | 4,1 | 30,3 | 8 | 5,5 | 4 | 15 | | | on request | | | 07105-20850 | B | ball-bearing steel | M8 | 4,1 | 50,3 | 8 | 5,5 | 4 | 15 | | | on request | | | 07105-20860 | B | ball-bearing steel | M8 | 4,1 | 60,3 | 8 | 5,5 | 4 | 15 | | | on request | | | 07105-20880 | B | ball-bearing steel | M8 | 4,1 | 80,3 | 8 | 5,5 | 4 | 15 | | | on request | | | 07105-21012 | B | ball-bearing steel | M10 | 5,6 | 12,3 | 5 | 7 | 5 | 20 | | | on request | | | 07105-21016 | B | ball-bearing steel | M10 | 5,6 | 16,3 | 9 | 7 | 5 | 20 | | | on request | | | 07105-21020 | B | ball-bearing steel | M10 | 5,6 | 20,3 | 9 | 7 | 5 | 20 | | | on request | | | 07105-21025 | B | ball-bearing steel | M10 | 5,6 | 25,3 | 9 | 7 | 5 | 20 | | | on request | | | 07105-21035 | B | ball-bearing steel | M10 | 5,6 | 35,3 | 9 | 7 | 5 | 20 | | | on request | | | 07105-21216 | B | ball-bearing steel | M12 | 7 | 16,2 | 8 | 8,5 | 6 | 30 | | | on request | | | 07105-21220 | B | ball-bearing steel | M12 | 7 | 20,2 | 10 | 8,5 | 6 | 30 | | | on request | | | 07105-21230 | B | ball-bearing steel | M12 | 7 | 30,2 | 10 | 8,5 | 6 | 30 | | | on request | | | 07105-21240 | B | ball-bearing steel | M12 | 7 | 40,2 | 10 | 8,5 | 6 | 30 | | | on request | | | 07105-21620 | B | ball-bearing steel | M16 | 10,7 | 20 | 10 | 12 | 8 | 60 | | | on request | | | 07105-21625 | B | ball-bearing steel | M16 | 10,7 | 25 | 14 | 12 | 8 | 60 | | | on request | | | 07105-21635 | B | ball-bearing steel | M16 | 10,7 | 35 | 14 | 12 | 8 | 60 | | | on request | | | 07105-21650 | B | ball-bearing steel | M16 | 10,7 | 50 | 14 | 12 | 8 | 60 | | | on request | |
