Ball-end thrust screws without head short version
 07109

Ball-end thrust screws without head short version

 go back

Item description/product images
DescriptionMaterial:Screw carbon steel, ball ball-bearing steel.Version:Screw grade 12.9, black oxidised.

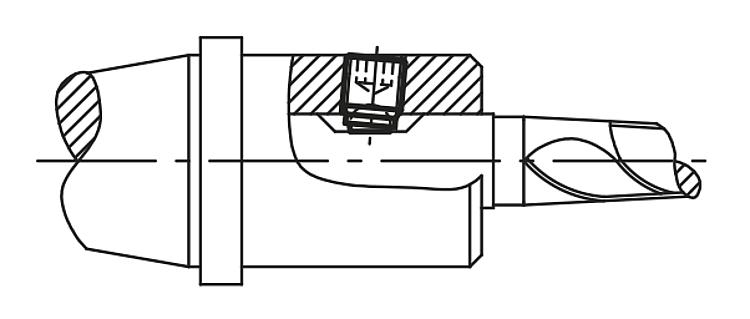

Ball hardened, bright.Note:Short ball-end thrust screws are particularly suited to DIN 1835 E straight milling cutter shanks together with e.g. Whistle Notch or Weldon tool holders.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 07109 Ball-end thrust screws without head short version 225 kB
Grades 124 kB

Drawings

Ball-end thrust screws without head short version

Item selection/filter
Order No.

DD1LBall-ØSWLoad rating
max. kN
(static load only)		CADAcc.PriceOrder
07109-1416M147,2168,5630 on request
07109-1616M167,2168,5830 on request
07109-1820M18X210,720121060 on request
07109-2020M20X210,720121060 on request
07109-2025M20X210,725121060 on request
07109-2425M24x213,525151290 on request
