Ball-end thrust screws with head

07100

Ball-end thrust screws with head

Products
- Product overview
  - Flexible standard component system
    - Fasteners Ball-end thrust screws Thrust screws and thrust pads Grippers Torque bolts Threaded inserts Lifting bolts Swivel bales Ring bolts
      - Thrust screws / ball-end thrust screws
        Ball-end thrust screws with head

Item description/product images

Show/filter all items

DescriptionMaterial:Screw carbon steel.
Ball ball-bearing steel.Version:Screw grade min. 10.9, black.
Ball hardened, bright.Note:Form A with full ball is used when a clean, polished contact surface is required. Surfaces which are not flat and parallel can be firmly clamped or supported with Form B with flattened ball, the movable ball can adapt itself up to 9°.Drawing reference:

Form A: full ball
Form B: flattened ball
Form BV: flattened ball, rotation lock
Form F: serrated flattened ball
Form FV: serrated flattened ball, rotation lock

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07100 Ball-end thrust screws with head

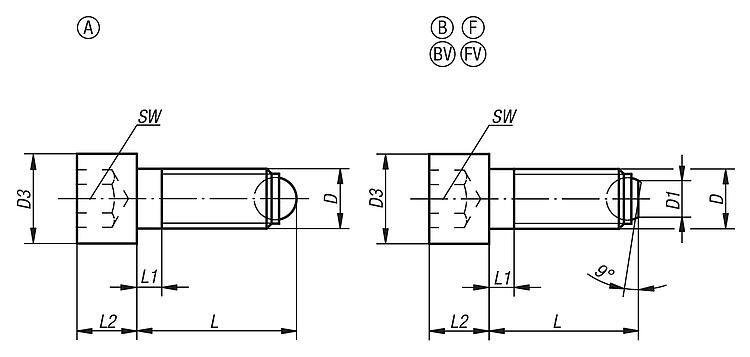

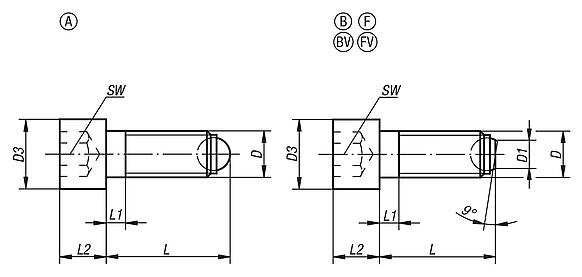

Drawings (total overview)

Ball-end thrust screws with head

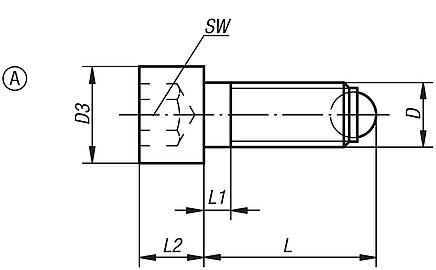

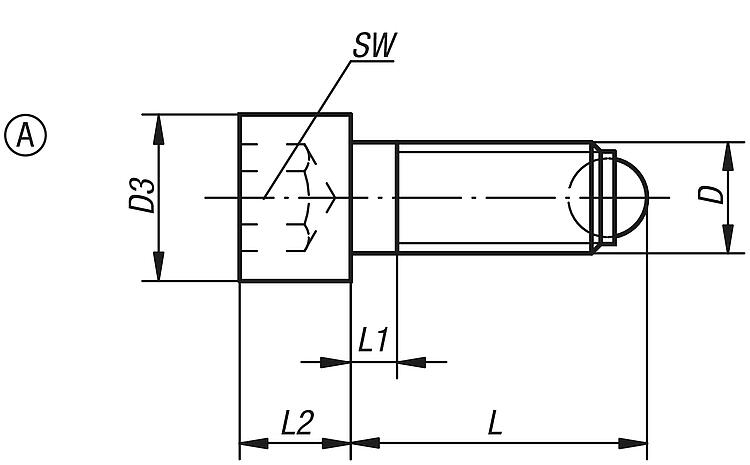

Ball-end thrust screws with head Form A, with full ball

More information

Drawings

Ball-end thrust screws with head Form A, with full ball

Item selection/filter

Order No.	Form	D	D3	L	L1	L2	Ball-Ø	SW	Load rating max. kN (static load only)	CAD	Acc.	Price	Order
07100-10410	A	M4	7	9,9	2,1	4	2,5	3	3,5			on request
07100-10416	A	M4	7	15,9	2,1	4	2,5	3	3,5			on request
07100-10420	A	M4	7	19,9	2,1	4	2,5	3	3,5			on request
07100-10512	A	M5	8,5	12,1	2,4	5	3	4	4,5			on request
07100-10516	A	M5	8,5	16,1	2,4	5	3	4	4,5			on request
07100-10520	A	M5	8,5	20,1	2,4	5	3	4	4,5			on request
07100-10620	A	M6	10	20,8	3	6	4	5	9			on request
07100-10630	A	M6	10	30,8	3	6	4	5	9			on request
07100-10640	A	M6	10	40,8	16	6	4	5	9			on request
07100-10820	A	M8	13	21,2	3,5	8	5,5	6	15			on request
07100-10835	A	M8	13	36,2	3,5	8	5,5	6	15			on request
07100-10850	A	M8	13	51,2	22	8	5,5	6	15			on request
07100-11025	A	M10	16	26,7	4,5	10	7	8	20			on request
07100-11040	A	M10	16	41,7	4,5	10	7	8	20			on request
07100-11060	A	M10	16	61,7	28	10	7	8	20			on request
07100-11230	A	M12	18	32	5	12	8,5	10	30			on request
07100-11250	A	M12	18	52	5	12	8,5	10	30			on request
07100-11280	A	M12	18	82	44	12	8,5	10	30			on request
07100-11640	A	M16	24	43,3	6	16	12	14	60			on request
07100-11660	A	M16	24	63,3	6	16	12	14	60			on request
07100-11680	A	M16	24	83,3	36	16	12	14	60			on request
07100-120100	A	M20	30	104,2	48	20	15	17	90			on request
07100-12050	A	M20	30	54,2	7,5	20	15	17	90			on request
07100-12080	A	M20	30	84,2	28	20	15	17	90			on request
07100-124120	A	M24	36	124,7	60	24	18	19	120			on request
07100-12460	A	M24	36	64,7	9	24	18	19	120			on request
07100-12490	A	M24	36	94,7	30	24	18	19	120			on request

Ball-end thrust screws with head Form B, with flattened ball

More information

Drawings

Ball-end thrust screws with head Form B, with flattened ball

Item selection/filter

Order No.	Form	D	D1	D3	L	L1	L2	Ball-Ø	SW	Load rating max. kN (static load only)	CAD	Acc.	Price	Order
07100-20410	B	M4	1,4	7	9.7	2,1	4	2,5	3	3,5			on request
07100-20416	B	M4	1,4	7	15,7	2,1	4	2,5	3	3,5			on request
07100-20420	B	M4	1,4	7	19,7	2,1	4	2,5	3	3,5			on request
07100-20512	B	M5	2	8,5	11,7	2,4	5	3	4	4,5			on request
07100-20516	B	M5	2	8,5	15,7	2,4	5	3	4	4,5			on request
07100-20520	B	M5	2	8,5	19,7	2,4	5	3	4	4,5			on request
07100-20620	B	M6	3,2	10	20	3	6	4	5	9			on request
07100-20630	B	M6	3,2	10	30	3	6	4	5	9			on request
07100-20640	B	M6	3,2	10	40	16	6	4	5	9			on request
07100-20820	B	M8	4,5	13	20	3,5	8	5,5	6	15			on request
07100-20835	B	M8	4,5	13	35	3,5	8	5,5	6	15			on request
07100-20850	B	M8	4,5	13	50	22	8	5,5	6	15			on request
07100-21025	B	M10	6	16	25	4,5	10	7	8	20			on request
07100-21040	B	M10	6	16	40	4,5	10	7	8	20			on request
07100-21060	B	M10	6	16	60	28	10	7	8	20			on request
07100-21230	B	M12	7,2	18	30	5	12	8,5	10	30			on request
07100-21250	B	M12	7,2	18	50	5	12	8,5	10	30			on request
07100-21280	B	M12	7,2	18	80	44	12	8,5	10	30			on request
07100-21640	B	M16	10,7	24	40	6	16	12	14	60			on request
07100-21660	B	M16	10,7	24	60	6	16	12	14	60			on request
07100-21680	B	M16	10,7	24	80	36	16	12	14	60			on request
07100-220100	B	M20	13,5	30	100	48	20	15	17	90			on request
07100-22050	B	M20	13,5	30	50	7,5	20	15	17	90			on request
07100-22080	B	M20	13,5	30	80	28	20	15	17	90			on request
07100-224120	B	M24	15,8	36	120	60	24	18	19	120			on request
07100-22460	B	M24	15,8	36	60	9	24	18	19	120			on request
07100-22490	B	M24	15,8	36	90	30	24	18	19	120			on request

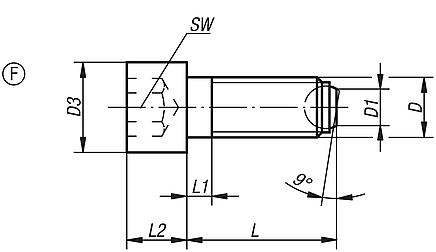

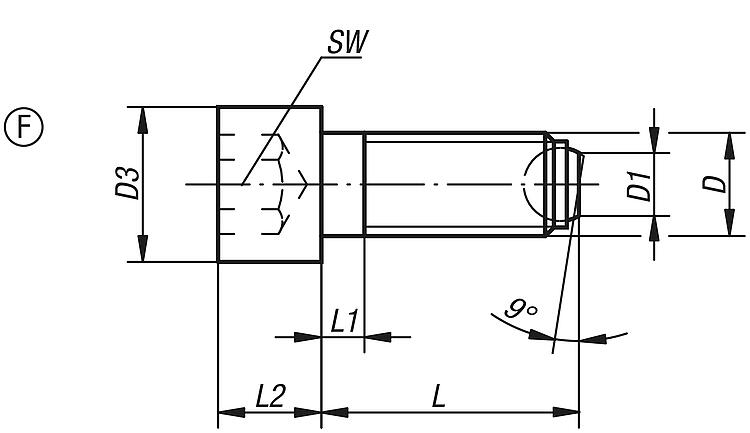

Ball-end thrust screws with head Form F, with flattened and serrated ball

More information

Drawings

Ball-end thrust screws with head Form F, with flattened and serrated ball

Item selection/filter

Order No.	Form	D	D1	D3	L	L1	L2	Ball-Ø	SW	Load rating max. kN (static load only)	CAD	Acc.	Price	Order
07100-30820	F	M8	4,5	13	20	3,5	8	5,5	6	15			on request
07100-30835	F	M8	4,5	13	35	3,5	8	5,5	6	15			on request
07100-30850	F	M8	4,5	13	50	22	8	5,5	6	15			on request
07100-31025	F	M10	6	16	25	4,5	10	7	8	20			on request
07100-31040	F	M10	6	16	40	4,5	10	7	8	20			on request
07100-31060	F	M10	6	16	60	28	10	7	8	20			on request
07100-31230	F	M12	7,2	18	30	5	12	8,5	10	30			on request
07100-31250	F	M12	7,2	18	50	5	12	8,5	10	30			on request
07100-31280	F	M12	7,2	18	80	44	12	8,5	10	30			on request
07100-31640	F	M16	10,7	24	40	6	16	12	14	60			on request
07100-31660	F	M16	10,7	24	60	6	16	12	14	60			on request
07100-31680	F	M16	10,7	24	80	36	16	12	14	60			on request
07100-32050	F	M20	13,5	30	50	7,5	20	15	17	90			on request
07100-32080	F	M20	13,5	30	80	28	20	15	17	90			on request
07100-320100	F	M20	13,5	30	100	48	20	15	17	90			on request
07100-32460	F	M24	15,8	36	60	9	24	18	19	120			on request
07100-32490	F	M24	15,8	36	90	30	24	18	19	120			on request
07100-324120	F	M24	15,8	36	120	60	24	18	19	120			on request

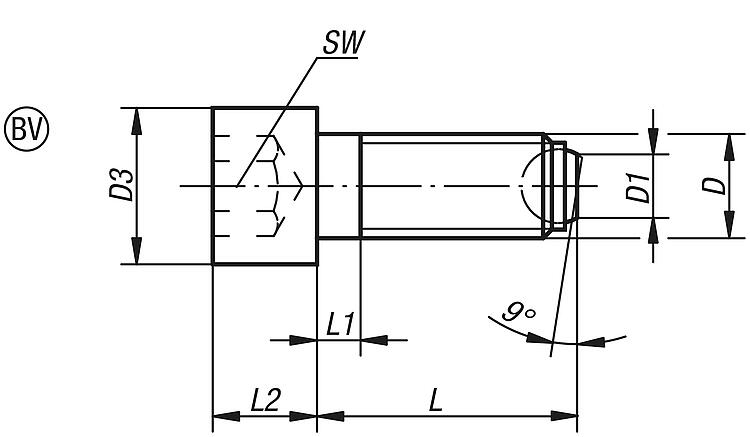

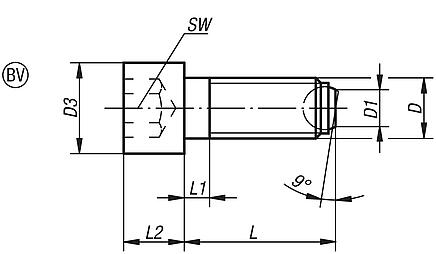

Ball-end thrust screws with head Form BV, flattened ball with rotation lock

More information

Drawings

Ball-end thrust screws with head Form BV, flattened ball with rotation lock

Item selection/filter

Order No.	Form	D	D1	D3	L	L1	L2	Ball-Ø	SW	Load rating max. kN (static load only)	CAD	Acc.	Price	Order
07100-40620	BV	M6	3,2	10	20	3	6	4	5	6			on request
07100-40630	BV	M6	3,2	10	30	3	6	4	5	6			on request
07100-40640	BV	M6	3,2	10	40	16	6	4	5	6			on request
07100-40820	BV	M8	4,5	13	20	3,5	8	5,5	6	9			on request
07100-40835	BV	M8	4,5	13	35	3,5	8	5,5	6	9			on request
07100-40850	BV	M8	4,5	13	50	22	8	5,5	6	9			on request
07100-41025	BV	M10	6	16	25	4,5	10	7	8	12			on request
07100-41040	BV	M10	6	16	40	4,5	10	7	8	12			on request
07100-41060	BV	M10	6	16	60	28	10	7	8	12			on request
07100-41230	BV	M12	7,2	18	30	5	12	8,5	10	18			on request
07100-41250	BV	M12	7,2	18	50	5	12	8,5	10	18			on request
07100-41280	BV	M12	7,2	18	80	44	12	8,5	10	18			on request
07100-41640	BV	M16	10,7	24	40	6	16	12	14	36			on request
07100-41660	BV	M16	10,7	24	60	6	16	12	14	36			on request
07100-41680	BV	M16	10,7	24	80	36	16	12	14	36			on request
07100-42050	BV	M20	13,5	30	50	7,5	20	15	17	60			on request
07100-42460	BV	M24	15,8	36	60	9	24	18	19	80			on request
07100-42080	BV	M20	13,5	30	80	28	20	15	17	60			on request
07100-42490	BV	M24	15,8	36	90	30	24	18	19	80			on request
07100-420100	BV	M20	13,5	30	100	48	20	15	17	60			on request
07100-424120	BV	M24	15,8	36	120	60	24	18	19	80			on request

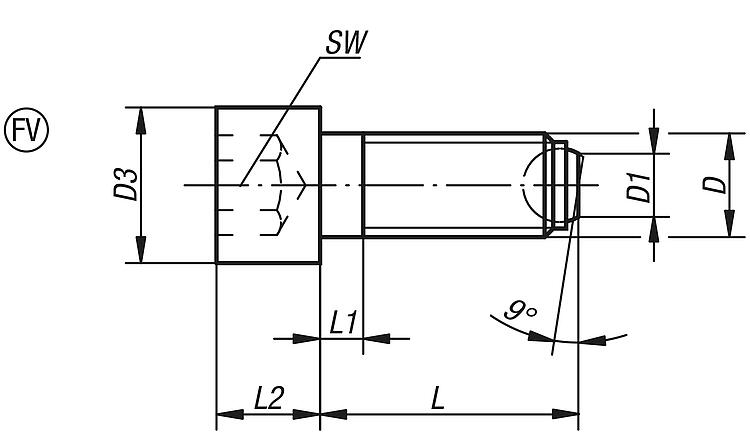

Ball-end thrust screws with head Form FV, flattened and serrated ball with rotation lock

More information

Drawings

Ball-end thrust screws with head Form FV, flattened and serrated ball with rotation lock

Item selection/filter

Order No.	Form	D	D1	D3	L	L1	L2	Ball-Ø	SW	Load rating max. kN (static load only)	CAD	Acc.	Price	Order
07100-50820	FV	M8	4,5	13	20	3,5	8	5,5	6	9			on request
07100-50835	FV	M8	4,5	13	35	3,5	8	5,5	6	9			on request
07100-50850	FV	M8	4,5	13	50	22	8	5,5	6	9			on request
07100-51025	FV	M10	6	16	25	4,5	10	7	8	12			on request
07100-51040	FV	M10	6	16	40	4,5	10	7	8	12			on request
07100-51060	FV	M10	6	16	60	28	10	7	8	12			on request
07100-51230	FV	M12	7,2	18	30	5	12	8,5	10	18			on request
07100-51250	FV	M12	7,2	18	50	5	12	8,5	10	18			on request
07100-51280	FV	M12	7,2	18	80	44	12	8,5	10	18			on request
07100-51640	FV	M16	10,7	24	40	6	16	12	14	36			on request
07100-51660	FV	M16	10,7	24	60	6	16	12	14	36			on request
07100-51680	FV	M16	10,7	24	80	36	16	12	14	36			on request
07100-52050	FV	M20	13,5	30	50	7,5	20	15	17	60			on request
07100-52080	FV	M20	13,5	30	80	28	20	15	17	60			on request
07100-520100	FV	M20	13,5	30	100	48	20	15	17	60			on request
07100-52460	FV	M24	15,8	36	60	9	24	18	19	80			on request
07100-52490	FV	M24	15,8	36	90	30	24	18	19	80			on request
07100-524120	FV	M24	15,8	36	120	60	24	18	19	80			on request
