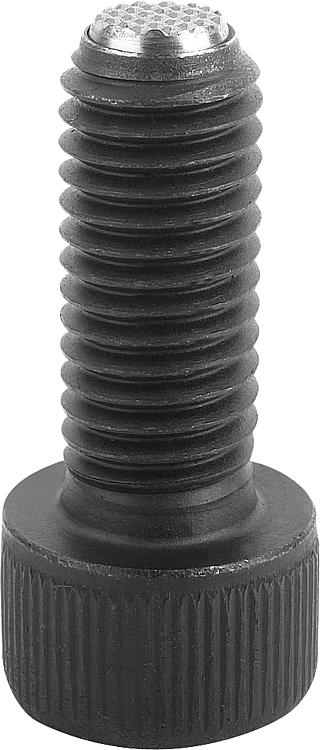

Ball-end thrust screws with head Form FV, flattened and serrated ball with rotation lock

07100_FV

Ball-end thrust screws with head Form FV, flattened and serrated...

Products
- Product overview
  - Flexible standard component system
    - Fasteners Ball-end thrust screws Thrust screws and thrust pads Grippers Torque bolts Threaded inserts Lifting bolts Swivel bales Ring bolts
      - Thrust screws / ball-end thrust screws
        Ball-end thrust screws with head
        Ball-end thrust screws with head Form FV, flattened and serrated ball with rotation lock

Item description/product images

DescriptionMaterial:Screw carbon steel.
Ball ball-bearing steel.Version:Screw grade min. 10.9, black.
Ball hardened, bright.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07100_FV Ball-end thrust screws with head Form FV, flattened and serrated ball with rotation lock

Drawings

Ball-end thrust screws with head Form FV, flattened and serrated ball with rotation lock

Item selection/filter

Order No.	Form	D	D1	D3	L	L1	L2	Ball-Ø	SW	Load rating max. kN (static load only)	CAD	Acc.	Price	Order
07100-50820	FV	M8	4,5	13	20	3,5	8	5,5	6	9			on request
07100-50835	FV	M8	4,5	13	35	3,5	8	5,5	6	9			on request
07100-50850	FV	M8	4,5	13	50	22	8	5,5	6	9			on request
07100-51025	FV	M10	6	16	25	4,5	10	7	8	12			on request
07100-51040	FV	M10	6	16	40	4,5	10	7	8	12			on request
07100-51060	FV	M10	6	16	60	28	10	7	8	12			on request
07100-51230	FV	M12	7,2	18	30	5	12	8,5	10	18			on request
07100-51250	FV	M12	7,2	18	50	5	12	8,5	10	18			on request
07100-51280	FV	M12	7,2	18	80	44	12	8,5	10	18			on request
07100-51640	FV	M16	10,7	24	40	6	16	12	14	36			on request
07100-51660	FV	M16	10,7	24	60	6	16	12	14	36			on request
07100-51680	FV	M16	10,7	24	80	36	16	12	14	36			on request
07100-52050	FV	M20	13,5	30	50	7,5	20	15	17	60			on request
07100-52080	FV	M20	13,5	30	80	28	20	15	17	60			on request
07100-520100	FV	M20	13,5	30	100	48	20	15	17	60			on request
07100-52460	FV	M24	15,8	36	60	9	24	18	19	80			on request
07100-52490	FV	M24	15,8	36	90	30	24	18	19	80			on request
07100-524120	FV	M24	15,8	36	120	60	24	18	19	80			on request
