        Ball-end thrust screws without head with flattened ball and rotation lock

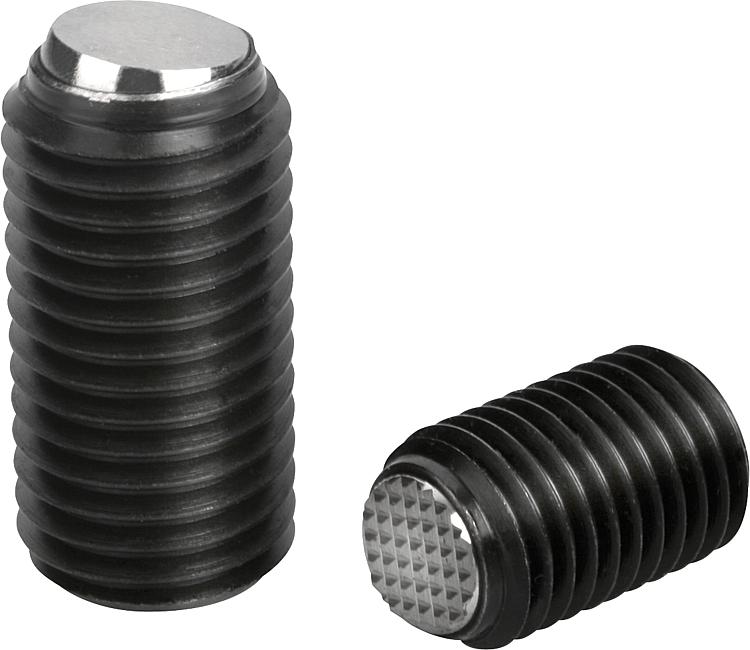

Item description/product images

DescriptionMaterial:Screw carbon steel, grade min. 10.9
Ball, ball-bearing steel.Version:Screw black.
Ball hardened and bright.Note:Surfaces which are not flat and parallel can be firmly clamped or supported with a flattened ball, the movable ball can adapt itself up to 9°.

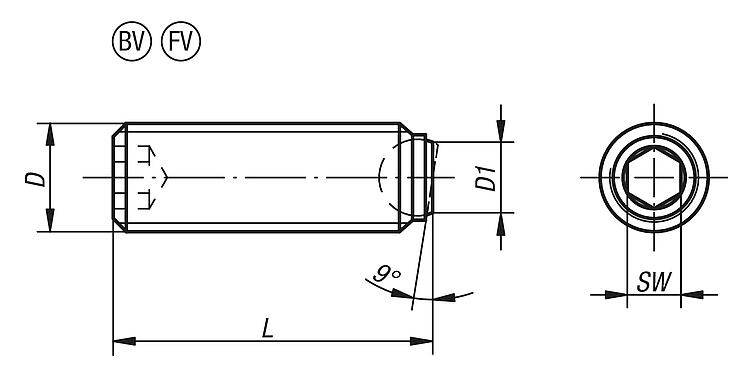

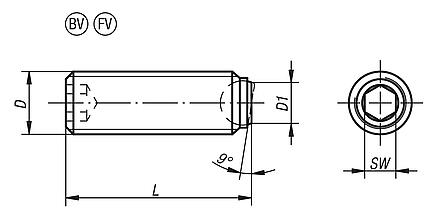

Longer versions have been designed especially to be glued in. This enables mechanical connecting elements with external thread to be made cost-effectively for small and medium-sized series.Drawing reference:

Form BV: flattened ball non-rotating
Form FV: flattened ball diamond grip non-rotating

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07110 Ball-end thrust screws without head with flattened ball and rotation lock

152 kB

Grades

124 kB

Drawings

Overview of items (compressed)

Item selection/filter

Order No.	Form	D	D1	L	Ball-Ø	SW	Load rating max. kN (static load only)	Price
07110-50612	BV	M6	3	12,1	4	3	6	on request
07110-50616	BV	M6	3	16,1	4	3	6	on request
07110-50620	BV	M6	3	20,1	4	3	6	on request
07110-50625	BV	M6	3	25,1	4	3	6	on request
07110-50816	BV	M8	4,1	16,3	5,5	4	9	on request
07110-50820	BV	M8	4,1	20,3	5,5	4	9	on request
07110-50825	BV	M8	4,1	25,3	5,5	4	9	on request
07110-50830	BV	M8	4,1	30,3	5,5	4	9	on request
07110-51020	BV	M10	5,6	20,3	7	5	12	on request
07110-51025	BV	M10	5,6	25,3	7	5	12	on request
07110-51035	BV	M10	5,6	35,3	7	5	12	on request
07110-51040	BV	M10	5,6	40,2	7	5	12	on request
07110-51230	BV	M12	7	30,2	8,5	6	18	on request
07110-51220	BV	M12	7	20,2	8,5	6	18	on request
07110-51240	BV	M12	7	40,2	8,5	6	18	on request
07110-51250	BV	M12	7	50	8,5	6	18	on request
07110-51620	BV	M16	10,7	20	12	8	36	on request
07110-51625	BV	M16	10,7	25	12	8	36	on request
07110-51635	BV	M16	10,7	35	12	8	36	on request
07110-51650	BV	M16	10,7	50	12	8	36	on request
07110-52030	BV	M20	13,5	30	15	10	60	on request
07110-52040	BV	M20	13,5	40	15	10	60	on request
07110-52050	BV	M20	13,5	50	15	10	60	on request
07110-52060	BV	M20	13,5	60	15	10	60	on request
07110-52435	BV	M24	15,8	35	18	12	80	on request
07110-52450	BV	M24	15,8	50	18	12	80	on request
07110-52480	BV	M24	15,8	80	18	12	80	on request
07110-60816	FV	M8	4,1	16,3	5,5	4	9	on request
07110-60820	FV	M8	4,1	20,3	5,5	4	9	on request
07110-60825	FV	M8	4,1	25,3	5,5	4	9	on request
07110-60830	FV	M8	4,1	30,3	5,5	4	9	on request
07110-61020	FV	M10	5,6	20,3	7	5	12	on request
07110-61025	FV	M10	5,6	25,3	7	5	12	on request
07110-61035	FV	M10	5,6	35,3	7	5	12	on request
07110-61040	FV	M10	5,6	40,2	7	5	12	on request
07110-61220	FV	M12	7	20,2	8,5	6	18	on request
07110-61230	FV	M12	7	30,2	8,5	6	18	on request
07110-61240	FV	M12	7	40,2	8,5	6	18	on request
07110-61250	FV	M12	7	50	8,5	6	18	on request
07110-61620	FV	M16	10,7	20	12	8	36	on request
07110-61625	FV	M16	10,7	25	12	8	36	on request
07110-61635	FV	M16	10,7	35	12	8	36	on request
07110-61650	FV	M16	10,7	50	12	8	36	on request
07110-62030	FV	M20	13,5	30	15	10	60	on request
07110-62040	FV	M20	13,5	40	15	10	60	on request
07110-62050	FV	M20	13,5	50	15	10	60	on request
07110-62060	FV	M20	13,5	60	15	10	60	on request
07110-62435	FV	M24	15,8	35	18	12	80	on request
07110-62450	FV	M24	15,8	50	18	12	80	on request
07110-62480	FV	M24	15,8	80	18	12	80	on request
