        Wing screws

Item description/product images

Show/filter all items

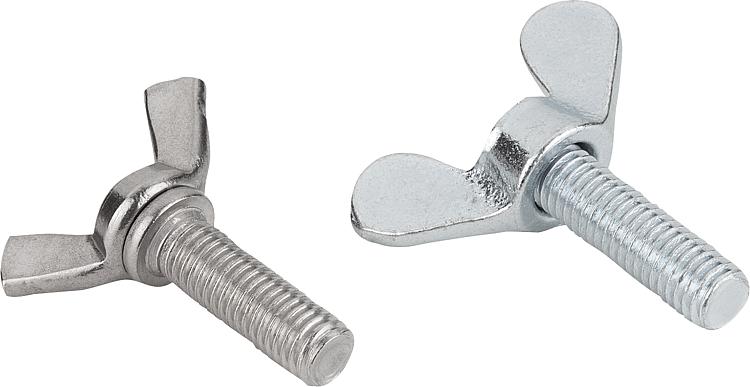

DescriptionMaterial:Steel (German type: malleable iron head, steel shaft) min. grade 4.6 or stainless steel A2.Version:Electro zinc-plated steel.
Bright stainless steel.Note:The wing screws can be tightened and (generally) loosened by hand.Drawing reference:

DE = German style similar to DIN 316
AM = US style

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07199 Wing screws

142 kB

Grades

124 kB

Drawings (total overview)

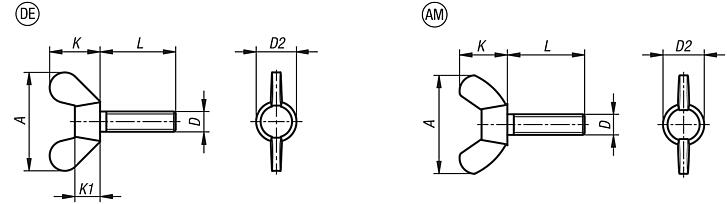

Wing screws, Form DE, German style similar to DIN 316

More information

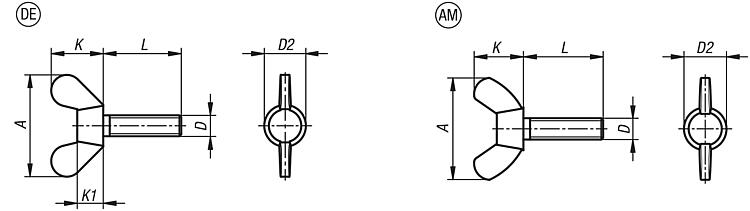

Drawings

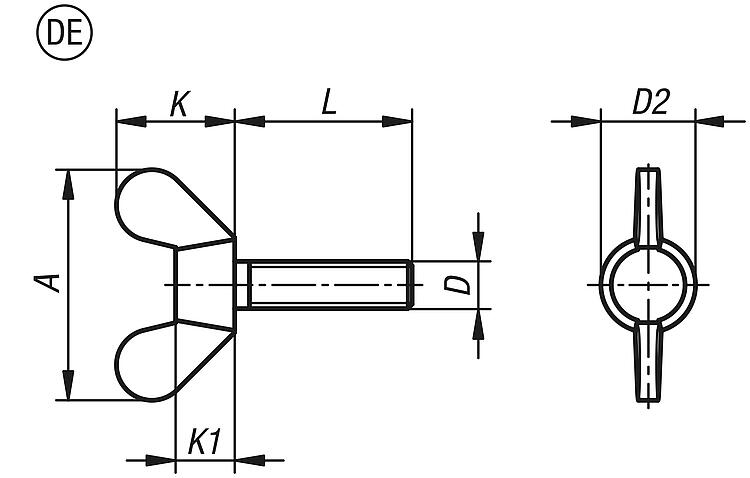

Wing screws, Form DE, German style similar to DIN 316

Item selection/filter

Order No.	Form	Main material	D	L	A max.	D2 max.	K	K1	Price
07199-104X8	DE	steel	M4	8	20	7	9,5	3,9	on request
07199-104X10	DE	steel	M4	10	20	7	9,5	3,9	on request
07199-104X12	DE	steel	M4	12	20	7	9,5	3,9	on request
07199-104X16	DE	steel	M4	16	20	7	9,5	3,9	on request
07199-104X20	DE	steel	M4	20	20	7	9,5	3,9	on request
07199-104X25	DE	steel	M4	25	20	7	9,5	3,9	on request
07199-104X30	DE	steel	M4	30	20	7	9,5	3,9	on request
07199-105X10	DE	steel	M5	10	25	9,5	12	5,3	on request
07199-105X12	DE	steel	M5	12	25	9,5	12	5,3	on request
07199-105X16	DE	steel	M5	16	25	9,5	12	5,3	on request
07199-105X20	DE	steel	M5	20	25	9,5	12	5,3	on request
07199-105X25	DE	steel	M5	25	25	9,5	12	5,3	on request
07199-105X30	DE	steel	M5	30	25	9,5	12	5,3	on request
07199-105X35	DE	steel	M5	35	25	9,5	12	5,3	on request
07199-105X40	DE	steel	M5	40	25	9,5	12	5,3	on request
07199-105X50	DE	steel	M5	50	25	9,5	12	5,3	on request
07199-106X10	DE	steel	M6	10	31,5	11,5	16	6,5	on request
07199-106X12	DE	steel	M6	12	31,5	11,5	16	6,5	on request
07199-106X16	DE	steel	M6	16	31,5	11,5	16	6,5	on request
07199-106X20	DE	steel	M6	20	31,5	11,5	16	6,5	on request
07199-106X25	DE	steel	M6	25	31,5	11,5	16	6,5	on request
07199-106X30	DE	steel	M6	30	31,5	11,5	16	6,5	on request
07199-106X35	DE	steel	M6	35	31,5	11,5	16	6,5	on request
07199-106X40	DE	steel	M6	40	31,5	11,5	16	6,5	on request
07199-106X50	DE	steel	M6	50	31,5	11,5	16	6,5	on request
07199-108X10	DE	steel	M8	10	37	14,5	19	8,3	on request
07199-108X12	DE	steel	M8	12	37	14,5	19	8,3	on request
07199-108X16	DE	steel	M8	16	37	14,5	19	8,3	on request
07199-108X20	DE	steel	M8	20	37	14,5	19	8,3	on request
07199-108X25	DE	steel	M8	25	37	14,5	19	8,3	on request
07199-108X30	DE	steel	M8	30	37	14,5	19	8,3	on request
07199-108X35	DE	steel	M8	35	37	14,5	19	8,3	on request
07199-108X40	DE	steel	M8	40	37	14,5	19	8,3	on request
07199-108X50	DE	steel	M8	50	37	14,5	19	8,3	on request
07199-108X60	DE	steel	M8	60	37	14,5	19	8,3	on request
07199-110X16	DE	steel	M10	16	49,5	18,5	24	10	on request
07199-110X20	DE	steel	M10	20	49,5	18,5	24	10	on request
07199-110X25	DE	steel	M10	25	49,5	18,5	24	10	on request
07199-110X30	DE	steel	M10	30	49,5	18,5	24	10	on request
07199-110X35	DE	steel	M10	35	49,5	18,5	24	10	on request
07199-110X40	DE	steel	M10	40	49,5	18,5	24	10	on request
07199-110X50	DE	steel	M10	50	49,5	18,5	24	10	on request
07199-110X60	DE	steel	M10	60	49,5	18,5	24	10	on request
07199-110X70	DE	steel	M10	70	49,5	18,5	24	10	on request
07199-112X16	DE	steel	M12	16	63,5	21,5	32,3	12	on request
07199-112X20	DE	steel	M12	20	63,5	21,5	32,3	12	on request
07199-112X25	DE	steel	M12	25	63,5	21,5	32,3	12	on request
07199-112X30	DE	steel	M12	30	63,5	21,5	32,3	12	on request
07199-112X40	DE	steel	M12	40	63,5	21,5	32,3	12	on request
07199-112X50	DE	steel	M12	50	63,5	21,5	32,3	12	on request
07199-112X60	DE	steel	M12	60	63,5	21,5	32,3	12	on request
07199-112X70	DE	steel	M12	70	63,5	21,5	32,3	12	on request
07199-112X80	DE	steel	M12	80	63,5	21,5	32,3	12	on request

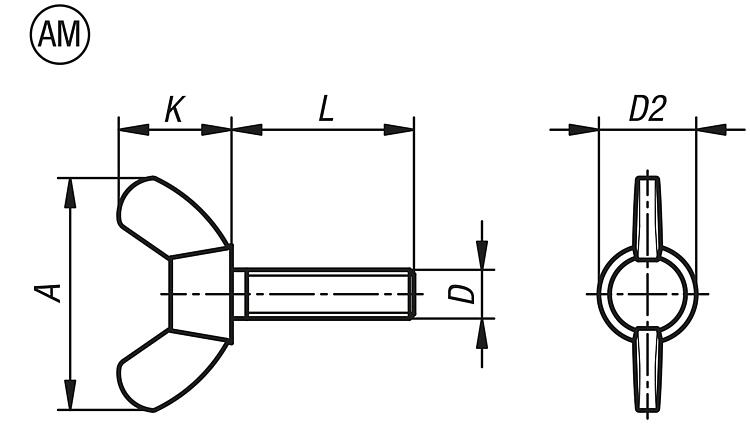

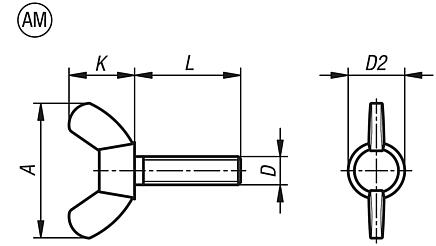

Wing screws, Form AM, American style

More information

Drawings

Item selection/filter

Order No.	Form	Main material	D	L	A max.	D2 max.	K	Price
07199-204X10	AM	steel	M4	10	22	9,5	10,5	on request
07199-204X12	AM	steel	M4	12	22	9,5	10,5	on request
07199-204X15	AM	steel	M4	15	22	9,5	10,5	on request
07199-204X20	AM	steel	M4	20	22	9,5	10,5	on request
07199-204X25	AM	steel	M4	25	22	9,5	10,5	on request
07199-204X30	AM	steel	M4	30	22	9,5	10,5	on request
07199-205X10	AM	steel	M5	10	22	9,5	10,5	on request
07199-205X12	AM	steel	M5	12	22	9,5	10,5	on request
07199-205X15	AM	steel	M5	15	22	9,5	10,5	on request
07199-205X20	AM	steel	M5	20	22	9,5	10,5	on request
07199-205X25	AM	steel	M5	25	22	9,5	10,5	on request
07199-205X30	AM	steel	M5	30	22	9,5	10,5	on request
07199-205X35	AM	steel	M5	35	22	9,5	10,5	on request
07199-205X40	AM	steel	M5	40	22	9,5	10,5	on request
07199-206X10	AM	steel	M6	10	26,8	11,9	12,9	on request
07199-206X12	AM	steel	M6	12	26,8	11,9	12,9	on request
07199-206X15	AM	steel	M6	15	26,8	11,9	12,9	on request
07199-206X20	AM	steel	M6	20	26,8	11,9	12,9	on request
07199-206X25	AM	steel	M6	25	26,8	11,9	12,9	on request
07199-206X30	AM	steel	M6	30	26,8	11,9	12,9	on request
07199-206X35	AM	steel	M6	35	26,8	11,9	12,9	on request
07199-206X40	AM	steel	M6	40	26,8	11,9	12,9	on request
07199-206X50	AM	steel	M6	50	26,8	11,9	12,9	on request
07199-208X10	AM	steel	M8	10	30,3	13,5	14,8	on request
07199-208X12	AM	steel	M8	12	30,3	13,5	14,8	on request
07199-208X15	AM	steel	M8	15	30,3	13,5	14,8	on request
07199-208X20	AM	steel	M8	20	30,3	13,5	14,8	on request
07199-208X25	AM	steel	M8	25	30,3	13,5	14,8	on request
07199-208X30	AM	steel	M8	30	30,3	13,5	14,8	on request
07199-208X35	AM	steel	M8	35	30,3	13,5	14,8	on request
07199-208X40	AM	steel	M8	40	30,3	13,5	14,8	on request
07199-208X45	AM	steel	M8	45	30,3	13,5	14,8	on request
07199-208X50	AM	steel	M8	50	30,3	13,5	14,8	on request
07199-208X60	AM	steel	M8	60	30,3	13,5	14,8	on request
07199-210X15	AM	steel	M10	15	35,3	15,3	17,3	on request
07199-210X20	AM	steel	M10	20	35,3	15,3	17,3	on request
07199-210X25	AM	steel	M10	25	35,3	15,3	17,3	on request
07199-210X30	AM	steel	M10	30	35,3	15,3	17,3	on request
07199-210X35	AM	steel	M10	35	35,3	15,3	17,3	on request
07199-210X40	AM	steel	M10	40	35,3	15,3	17,3	on request
07199-210X50	AM	steel	M10	50	35,3	15,3	17,3	on request
07199-210X60	AM	steel	M10	60	35,3	15,3	17,3	on request
07199-212X20	AM	steel	M12	20	47,5	20,5	22,5	on request
07199-212X25	AM	steel	M12	25	47,5	20,5	22,5	on request
07199-212X30	AM	steel	M12	30	47,5	20,5	22,5	on request
07199-212X35	AM	steel	M12	35	47,5	20,5	22,5	on request
07199-212X40	AM	steel	M12	40	47,5	20,5	22,5	on request
07199-212X50	AM	steel	M12	50	47,5	20,5	22,5	on request
07199-212X60	AM	steel	M12	60	47,5	20,5	22,5	on request
07199-1204X10	AM	stainless steel A2	M4	10	22	9,5	10,5	on request
07199-1204X12	AM	stainless steel A2	M4	12	22	9,5	10,5	on request
07199-1204X16	AM	stainless steel A2	M4	16	22	9,5	10,5	on request
07199-1204X20	AM	stainless steel A2	M4	20	22	9,5	10,5	on request
07199-1204X25	AM	stainless steel A2	M4	25	22	9,5	10,5	on request
07199-1204X30	AM	stainless steel A2	M4	30	22	9,5	10,5	on request
07199-1205X10	AM	stainless steel A2	M5	10	22	9,5	10,5	on request
07199-1205X12	AM	stainless steel A2	M5	12	22	9,5	10,5	on request
07199-1205X16	AM	stainless steel A2	M5	16	22	9,5	10,5	on request
07199-1205X20	AM	stainless steel A2	M5	20	22	9,5	10,5	on request
07199-1205X25	AM	stainless steel A2	M5	25	22	9,5	10,5	on request
07199-1205X30	AM	stainless steel A2	M5	30	22	9,5	10,5	on request
07199-1205X35	AM	stainless steel A2	M5	35	22	9,5	10,5	on request
07199-1205X40	AM	stainless steel A2	M5	40	22	9,5	10,5	on request
07199-1206X10	AM	stainless steel A2	M6	10	26,8	11,9	12,9	on request
07199-1206X12	AM	stainless steel A2	M6	12	26,8	11,9	12,9	on request
07199-1206X16	AM	stainless steel A2	M6	16	26,8	11,9	12,9	on request
07199-1206X20	AM	stainless steel A2	M6	20	26,8	11,9	12,9	on request
07199-1206X25	AM	stainless steel A2	M6	25	26,8	11,9	12,9	on request
07199-1206X30	AM	stainless steel A2	M6	30	26,8	11,9	12,9	on request
07199-1206X35	AM	stainless steel A2	M6	35	26,8	11,9	12,9	on request
07199-1206X40	AM	stainless steel A2	M6	40	26,8	11,9	12,9	on request
07199-1206X45	AM	stainless steel A2	M6	45	26,8	11,9	12,9	on request
07199-1206X50	AM	stainless steel A2	M6	50	26,8	11,9	12,9	on request
07199-1208X10	AM	stainless steel A2	M8	10	30,3	13,5	14,8	on request
07199-1208X12	AM	stainless steel A2	M8	12	30,3	13,5	14,8	on request
07199-1208X16	AM	stainless steel A2	M8	16	30,3	13,5	14,8	on request
07199-1208X20	AM	stainless steel A2	M8	20	30,3	13,5	14,8	on request
07199-1208X25	AM	stainless steel A2	M8	25	30,3	13,5	14,8	on request
07199-1208X30	AM	stainless steel A2	M8	30	30,3	13,5	14,8	on request
07199-1208X35	AM	stainless steel A2	M8	35	30,3	13,5	14,8	on request
07199-1208X40	AM	stainless steel A2	M8	40	30,3	13,5	14,8	on request
07199-1208X45	AM	stainless steel A2	M8	45	30,3	13,5	14,8	on request
07199-1208X50	AM	stainless steel A2	M8	50	30,3	13,5	14,8	on request
07199-1208X60	AM	stainless steel A2	M8	60	30,3	13,5	14,8	on request
07199-1210X16	AM	stainless steel A2	M10	16	35,3	15,3	17,3	on request
07199-1210X20	AM	stainless steel A2	M10	20	35,3	15,3	17,3	on request
07199-1210X25	AM	stainless steel A2	M10	25	35,3	15,3	17,3	on request
07199-1210X30	AM	stainless steel A2	M10	30	35,3	15,3	17,3	on request
07199-1210X35	AM	stainless steel A2	M10	35	35,3	15,3	17,3	on request
07199-1210X40	AM	stainless steel A2	M10	40	35,3	15,3	17,3	on request
07199-1210X45	AM	stainless steel A2	M10	45	35,3	15,3	17,3	on request
07199-1210X50	AM	stainless steel A2	M10	50	35,3	15,3	17,3	on request
07199-1210X60	AM	stainless steel A2	M10	60	35,3	15,3	17,3	on request
