        Wing nuts

Item description/product images

Show/filter all items

DescriptionMaterial:Steel (German type from M12 malleable iron) or stainless steel A2.Version:Steel and malleable iron electro zinc-plated.
Stainless steel bright.Note:The wing nuts can be tightened and (generally) loosened tool-free.Drawing reference:

DE = German style similar to DIN 315
AM = US style

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07200 Wing nuts

131 kB

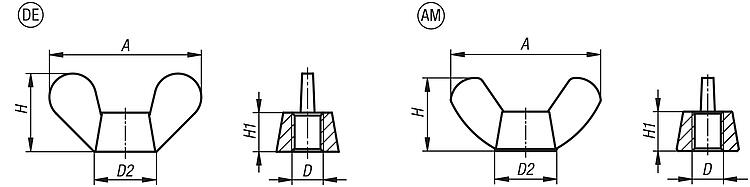

Drawings (total overview)

Wing nuts, Form DE, German style similar to DIN 315

More information

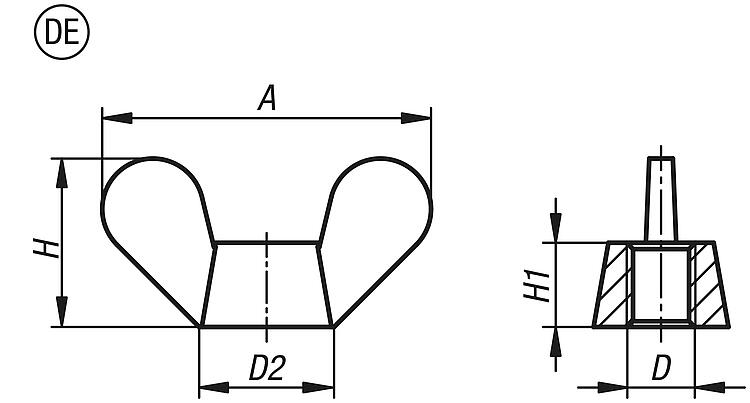

Drawings

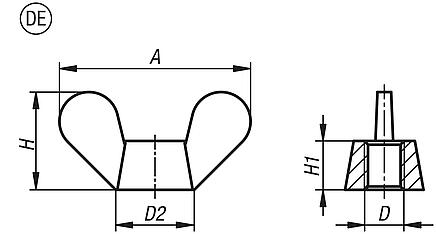

Wing nuts, Form DE, German style similar to DIN 315

Item selection/filter

	DE	steel malleable iron stainless steel A2	M4 M5 M6 M8 M10 M12 M16 M20	20 26 33 39 51 65 73 90	8 11 13 16 20 23 29 35	10,5 13 17 20 25 33,5 37,5 46,5	4,6 6,5 8 10 12 14 17 21				Reset
Order No.	Form	Main material	D	A max.	D2 max.	H	H1	CAD	Acc.	Price	Order
07200-104	DE	steel	M4	20	8	10,5	4,6			on request
07200-105	DE	steel	M5	26	11	13	6,5			on request
07200-106	DE	steel	M6	33	13	17	8			on request
07200-108	DE	steel	M8	39	16	20	10			on request
07200-110	DE	steel	M10	51	20	25	12			on request
07200-112	DE	malleable iron	M12	65	23	33,5	14			on request
07200-116	DE	malleable iron	M16	73	29	37,5	17			on request
07200-120	DE	malleable iron	M20	90	35	46,5	21			on request
07200-1104	DE	stainless steel A2	M4	20	8	10,5	4,6			on request
07200-1105	DE	stainless steel A2	M5	26	11	13	6,5			on request
07200-1106	DE	stainless steel A2	M6	33	13	17	8			on request
07200-1108	DE	stainless steel A2	M8	39	16	20	10			on request
07200-1110	DE	stainless steel A2	M10	51	20	25	12			on request
07200-1112	DE	stainless steel A2	M12	65	23	33,5	14			on request
07200-1116	DE	stainless steel A2	M16	73	29	37,5	17			on request
07200-1120	DE	stainless steel A2	M20	90	35	46,5	21			on request

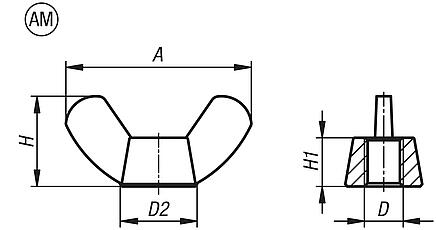

Wing nuts, Form AM, American style

More information

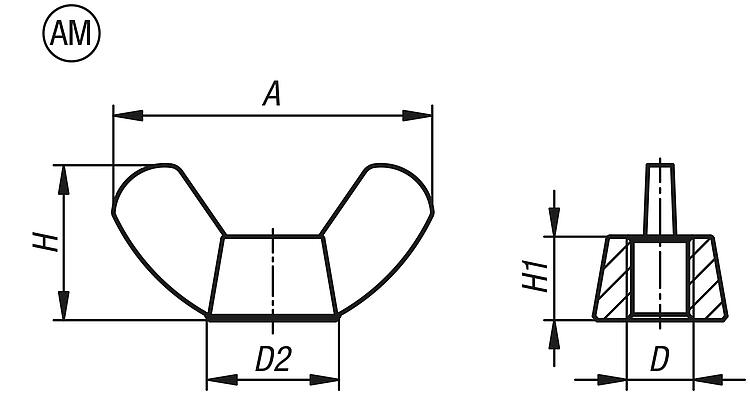

Drawings

Item selection/filter

	AM	steel stainless steel A2	M4 M5 M6 M8 M10 M12	18,5 22 26,8 30,3 35,3 47,5	8 11 13 14 16,5 22,5	8,8 10,5 12,9 14,8 17,3 22,5	3 4 4,9 5,4 6,3 7,9				Reset
Order No.	Form	Main material	D	A max.	D2 max.	H	H1	CAD	Acc.	Price	Order
07200-204	AM	steel	M4	18,5	8	8,8	3			on request
07200-205	AM	steel	M5	22	11	10,5	4			on request
07200-206	AM	steel	M6	26,8	13	12,9	4,9			on request
07200-208	AM	steel	M8	30,3	14	14,8	5,4			on request
07200-210	AM	steel	M10	35,3	16,5	17,3	6,3			on request
07200-212	AM	steel	M12	47,5	22,5	22,5	7,9			on request
07200-1204	AM	stainless steel A2	M4	18,5	8	8,8	3			on request
07200-1205	AM	stainless steel A2	M5	22	11	10,5	4			on request
07200-1206	AM	stainless steel A2	M6	26,8	13	12,9	4,9			on request
07200-1208	AM	stainless steel A2	M8	30,3	14	14,8	5,4			on request
07200-1210	AM	stainless steel A2	M10	35,3	16,5	17,3	6,3			on request
07200-1212	AM	stainless steel A2	M12	47,5	22,5	22,5	7,9			on request
