        Hexagon nuts DIN 934

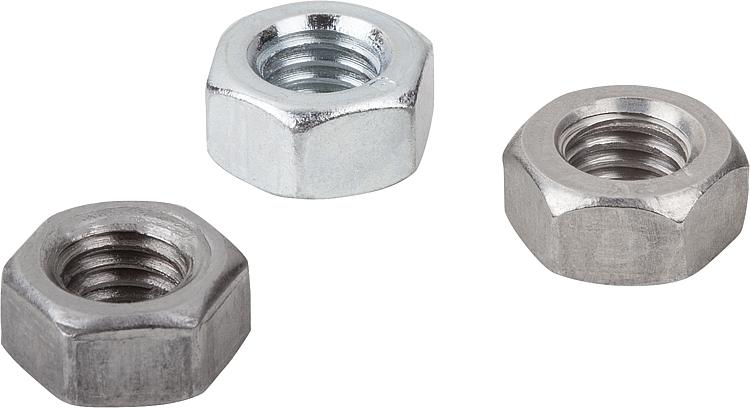

Item description/product images

Show/filter all items

DescriptionMaterial:Steel, stainless steel A2 or stainless steel A4.Version:Steel grade 8, bright or electro zinc-plated.
Steel grade 10, bright or electro zinc-plated.
Steel grade 12, bright.
Stainless steel A2-70, bright.
Stainless steel A4-70, bright.Note:The grade of a nut must always be the same or higher than the grade of a bolt. That is, bolts in grade 8.8 are always paired with a nut in grade 8 (or higher, but never lower).
The maximum nut height H max. is shown in the table.On request:DIN ISO 272 spanner sizes.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07210 Hexagon nutsDIN 934

206 kB

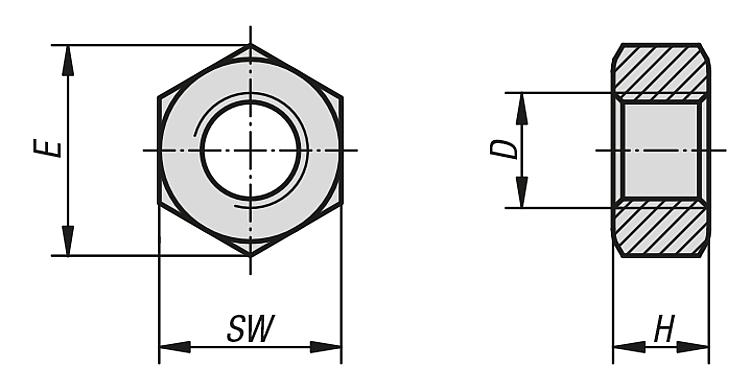

Drawings (total overview)

Hexagon nuts DIN 934, steel

More information

Drawings

Item selection/filter

Order No.	Material	Surface finish body	Grade	D	E	H	SW	DIN	Price
07210-025	steel	bright (black)	8	M2,5	5,45	2	5	DIN 934	on request
07210-03	steel	bright (black)	8	M3	6,01	2,4	5,5	DIN 934	on request
07210-04	steel	bright (black)	8	M4	7,66	3,2	7	DIN 934	on request
07210-05	steel	bright (black)	8	M5	8,79	4	8	DIN 934	on request
07210-06	steel	bright (black)	8	M6	11,05	5	10	DIN 934	on request
07210-08	steel	bright (black)	8	M8	14,38	6,5	13	DIN 934	on request
07210-10	steel	bright (black)	8	M10	18,9	8	17	DIN 934	on request
07210-12	steel	bright (black)	8	M12	21,1	10	19	DIN 934	on request
07210-14	steel	bright (black)	8	M14	23,9	11	22	DIN 934	on request
07210-16	steel	bright (black)	8	M16	26,76	13	24	DIN 934	on request
07210-20	steel	bright (black)	8	M20	32,95	16	30	DIN 934	on request
07210-22	steel	bright (black)	8	M22	35	18	32	DIN 934	on request
07210-24	steel	bright (black)	8	M24	39,6	19	36	DIN 934	on request
07210-27	steel	bright (black)	8	M27	45,2	22	41	DIN 934	on request
07210-30	steel	bright (black)	8	M30	50,9	24	46	DIN 934	on request
07210-33	steel	bright (black)	8	M33	55,4	26	50	DIN 934	on request
07210-36	steel	bright (black)	8	M36	60,8	29	55	DIN 934	on request
07210-2025	steel	galvanised	8	M2,5	5,45	2	5	DIN 934	on request
07210-203	steel	galvanised	8	M3	6,01	2,4	5,5	DIN 934	on request
07210-204	steel	galvanised	8	M4	7,66	3,2	7	DIN 934	on request
07210-205	steel	galvanised	8	M5	8,79	4	8	DIN 934	on request
07210-206	steel	galvanised	8	M6	11,05	5	10	DIN 934	on request
07210-208	steel	galvanised	8	M8	14,38	6,5	13	DIN 934	on request
07210-210	steel	galvanised	8	M10	18,9	8	17	DIN 934	on request
07210-212	steel	galvanised	8	M12	21,1	10	19	DIN 934	on request
07210-214	steel	galvanised	8	M14	23,9	11	22	DIN 934	on request
07210-216	steel	galvanised	8	M16	26,76	13	24	DIN 934	on request
07210-220	steel	galvanised	8	M20	32,95	16	30	DIN 934	on request
07210-222	steel	galvanised	8	M22	35	18	32	DIN 934	on request
07210-224	steel	galvanised	8	M24	39,6	19	36	DIN 934	on request
07210-227	steel	galvanised	8	M27	45,2	22	41	DIN 934	on request
07210-230	steel	galvanised	8	M30	50,9	24	46	DIN 934	on request
07210-233	steel	galvanised	8	M33	55,4	26	50	DIN 934	on request
07210-236	steel	galvanised	8	M36	60,8	29	55	DIN 934	on request
07210-403	steel	bright (black)	10	M3	6,01	2,4	5,5	DIN 934	on request
07210-404	steel	bright (black)	10	M4	7,66	3,2	7	DIN 934	on request
07210-405	steel	bright (black)	10	M5	8,79	4	8	DIN 934	on request
07210-406	steel	bright (black)	10	M6	11,05	5	10	DIN 934	on request
07210-408	steel	bright (black)	10	M8	14,38	6,5	13	DIN 934	on request
07210-410	steel	bright (black)	10	M10	18,9	8	17	DIN 934	on request
07210-412	steel	bright (black)	10	M12	21,1	10	19	DIN 934	on request
07210-414	steel	bright (black)	10	M14	23,9	11	22	DIN 934	on request
07210-416	steel	bright (black)	10	M16	26,76	13	24	DIN 934	on request
07210-420	steel	bright (black)	10	M20	32,95	16	30	DIN 934	on request
07210-422	steel	bright (black)	10	M22	35	18	32	DIN 934	on request
07210-424	steel	bright (black)	10	M24	39,6	19	36	DIN 934	on request
07210-427	steel	bright (black)	10	M27	45,2	22	41	DIN 934	on request
07210-430	steel	bright (black)	10	M30	50,9	24	46	DIN 934	on request
07210-433	steel	bright (black)	10	M33	55,4	26	50	DIN 934	on request
07210-436	steel	bright (black)	10	M36	60,8	29	55	DIN 934	on request
07210-304	steel	galvanised	10	M4	7,66	3,2	7	DIN 934	on request
07210-305	steel	galvanised	10	M5	8,79	4	8	DIN 934	on request
07210-306	steel	galvanised	10	M6	11,05	5	10	DIN 934	on request
07210-308	steel	galvanised	10	M8	14,38	6,5	13	DIN 934	on request
07210-310	steel	galvanised	10	M10	18,9	8	17	DIN 934	on request
07210-312	steel	galvanised	10	M12	21,1	10	19	DIN 934	on request
07210-314	steel	galvanised	10	M14	23,9	11	22	DIN 934	on request
07210-316	steel	galvanised	10	M16	26,76	13	24	DIN 934	on request
07210-320	steel	galvanised	10	M20	32,95	16	30	DIN 934	on request
07210-322	steel	galvanised	10	M22	35	18	32	DIN 934	on request
07210-324	steel	galvanised	10	M24	39,6	19	36	DIN 934	on request
07210-327	steel	galvanised	10	M27	45,2	22	41	DIN 934	on request
07210-330	steel	galvanised	10	M30	50,9	24	46	DIN 934	on request
07210-333	steel	galvanised	10	M33	55,4	26	50	DIN 934	on request
07210-336	steel	galvanised	10	M36	60,8	29	55	DIN 934	on request
07210-506	steel	bright (black)	12	M6	11,05	5	10	DIN 934	on request
07210-508	steel	bright (black)	12	M8	14,38	6,5	13	DIN 934	on request
07210-510	steel	bright (black)	12	M10	18,9	8	17	DIN 934	on request
07210-512	steel	bright (black)	12	M12	21,1	10	19	DIN 934	on request
07210-516	steel	bright (black)	12	M16	26,76	13	24	DIN 934	on request
07210-520	steel	bright (black)	12	M20	32,95	16	30	DIN 934	on request
07210-524	steel	bright (black)	12	M24	39,6	19	36	DIN 934	on request
07210-527	steel	bright (black)	12	M27	45,2	22	41	DIN 934	on request
07210-530	steel	bright (black)	12	M30	50,9	24	46	DIN 934	on request
07210-536	steel	bright (black)	12	M36	60,8	29	55	DIN 934	on request

Hexagon nuts DIN 934, stainless steel

More information

Drawings

Item selection/filter

Order No.	Main material	Grade	D	E	H	SW	DIN	Price
07210-1025	stainless steel A2	70	M2,5	5,45	2	5	DIN 934	on request
07210-103	stainless steel A2	70	M3	6,01	2,4	5,5	DIN 934	on request
07210-104	stainless steel A2	70	M4	7,66	3,2	7	DIN 934	on request
07210-105	stainless steel A2	70	M5	8,79	4	8	DIN 934	on request
07210-106	stainless steel A2	70	M6	11,05	5	10	DIN 934	on request
07210-108	stainless steel A2	70	M8	14,38	6,5	13	DIN 934	on request
07210-110	stainless steel A2	70	M10	18,9	8	17	DIN 934	on request
07210-112	stainless steel A2	70	M12	21,1	10	19	DIN 934	on request
07210-116	stainless steel A2	70	M16	26,76	13	24	DIN 934	on request
07210-120	stainless steel A2	70	M20	32,95	16	30	DIN 934	on request
07210-130	stainless steel A2	70	M30	50,9	24	46	DIN 934	on request
07210-136	stainless steel A2	70	M36	60,8	29	55	DIN 934	on request
07210-114	stainless steel A2	70	M14	23,9	11	22	DIN 934	on request
07210-122	stainless steel A2	70	M22	35	18	32	DIN 934	on request
07210-124	stainless steel A2	70	M24	39,6	19	36	DIN 934	on request
07210-127	stainless steel A2	70	M27	45,2	22	41	DIN 934	on request
07210-133	stainless steel A2	70	M33	55,4	26	50	DIN 934	on request
07210-5025	stainless steel A4	70	M2,5	5,45	2	5	DIN 934	on request
07210-603	stainless steel A4	70	M3	6,01	2,4	5,5	DIN 934	on request
07210-604	stainless steel A4	70	M4	7,66	3,2	7	DIN 934	on request
07210-605	stainless steel A4	70	M5	8,79	4	8	DIN 934	on request
07210-606	stainless steel A4	70	M6	11,05	5	10	DIN 934	on request
07210-608	stainless steel A4	70	M8	14,38	6,5	13	DIN 934	on request
07210-610	stainless steel A4	70	M10	18,9	8	17	DIN 934	on request
07210-612	stainless steel A4	70	M12	21,1	10	19	DIN 934	on request
07210-614	stainless steel A4	70	M14	23,9	11	22	DIN 934	on request
07210-616	stainless steel A4	70	M16	26,76	13	24	DIN 934	on request
07210-620	stainless steel A4	70	M20	32,95	16	30	DIN 934	on request
07210-622	stainless steel A4	70	M22	35	18	32	DIN 934	on request
07210-624	stainless steel A4	70	M24	39,6	19	36	DIN 934	on request
07210-627	stainless steel A4	70	M27	45,2	22	41	DIN 934	on request
07210-630	stainless steel A4	70	M30	50,9	24	46	DIN 934	on request
07210-633	stainless steel A4	70	M33	55,4	26	50	DIN 934	on request
07210-636	stainless steel A4	70	M36	60,8	29	55	DIN 934	on request
