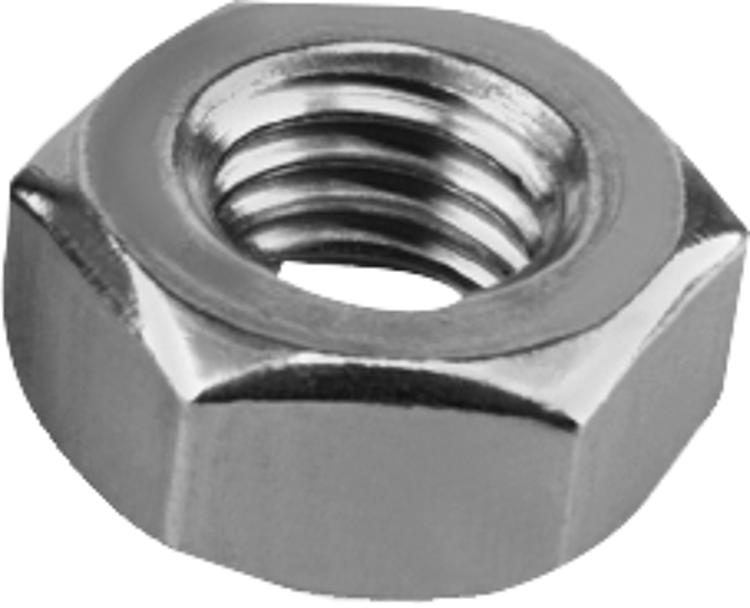

07210_ESHexagon nuts DIN 934, stainless steel |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Stainless steel A2 or stainless steel A4.Version:Stainless steel A2-70, bright.
Stainless steel A4-70, bright.On request:DIN ISO 272 spanner sizes.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Main
material | Grade | D
| E | H | SW | DIN | CAD | Acc. | Price | Order |
|---|
| 07210-1025 | stainless steel A2 | 70 | M2,5 | 5,45 | 2 | 5 | DIN 934 |  | | on request | | | 07210-103 | stainless steel A2 | 70 | M3 | 6,01 | 2,4 | 5,5 | DIN 934 | | | on request | | | 07210-104 | stainless steel A2 | 70 | M4 | 7,66 | 3,2 | 7 | DIN 934 | | | on request | | | 07210-105 | stainless steel A2 | 70 | M5 | 8,79 | 4 | 8 | DIN 934 | | | on request | | | 07210-106 | stainless steel A2 | 70 | M6 | 11,05 | 5 | 10 | DIN 934 | | | on request | | | 07210-108 | stainless steel A2 | 70 | M8 | 14,38 | 6,5 | 13 | DIN 934 | | | on request | | | 07210-110 | stainless steel A2 | 70 | M10 | 18,9 | 8 | 17 | DIN 934 | | | on request | | | 07210-112 | stainless steel A2 | 70 | M12 | 21,1 | 10 | 19 | DIN 934 | | | on request | | | 07210-116 | stainless steel A2 | 70 | M16 | 26,76 | 13 | 24 | DIN 934 | | | on request | | | 07210-120 | stainless steel A2 | 70 | M20 | 32,95 | 16 | 30 | DIN 934 | | | on request | | | 07210-130 | stainless steel A2 | 70 | M30 | 50,9 | 24 | 46 | DIN 934 | | | on request | | | 07210-136 | stainless steel A2 | 70 | M36 | 60,8 | 29 | 55 | DIN 934 | | | on request | | | 07210-114 | stainless steel A2 | 70 | M14 | 23,9 | 11 | 22 | DIN 934 | | | on request | | | 07210-122 | stainless steel A2 | 70 | M22 | 35 | 18 | 32 | DIN 934 | | | on request | | | 07210-124 | stainless steel A2 | 70 | M24 | 39,6 | 19 | 36 | DIN 934 | | | on request | | | 07210-127 | stainless steel A2 | 70 | M27 | 45,2 | 22 | 41 | DIN 934 | | | on request | | | 07210-133 | stainless steel A2 | 70 | M33 | 55,4 | 26 | 50 | DIN 934 | | | on request | | | 07210-5025 | stainless steel A4 | 70 | M2,5 | 5,45 | 2 | 5 | DIN 934 | | | on request | | | 07210-603 | stainless steel A4 | 70 | M3 | 6,01 | 2,4 | 5,5 | DIN 934 | | | on request | | | 07210-604 | stainless steel A4 | 70 | M4 | 7,66 | 3,2 | 7 | DIN 934 | | | on request | | | 07210-605 | stainless steel A4 | 70 | M5 | 8,79 | 4 | 8 | DIN 934 | | | on request | | | 07210-606 | stainless steel A4 | 70 | M6 | 11,05 | 5 | 10 | DIN 934 | | | on request | | | 07210-608 | stainless steel A4 | 70 | M8 | 14,38 | 6,5 | 13 | DIN 934 | | | on request | | | 07210-610 | stainless steel A4 | 70 | M10 | 18,9 | 8 | 17 | DIN 934 | | | on request | | | 07210-612 | stainless steel A4 | 70 | M12 | 21,1 | 10 | 19 | DIN 934 | | | on request | | | 07210-614 | stainless steel A4 | 70 | M14 | 23,9 | 11 | 22 | DIN 934 | | | on request | | | 07210-616 | stainless steel A4 | 70 | M16 | 26,76 | 13 | 24 | DIN 934 | | | on request | | | 07210-620 | stainless steel A4 | 70 | M20 | 32,95 | 16 | 30 | DIN 934 | | | on request | | | 07210-622 | stainless steel A4 | 70 | M22 | 35 | 18 | 32 | DIN 934 | | | on request | | | 07210-624 | stainless steel A4 | 70 | M24 | 39,6 | 19 | 36 | DIN 934 | | | on request | | | 07210-627 | stainless steel A4 | 70 | M27 | 45,2 | 22 | 41 | DIN 934 | | | on request | | | 07210-630 | stainless steel A4 | 70 | M30 | 50,9 | 24 | 46 | DIN 934 | | | on request | | | 07210-633 | stainless steel A4 | 70 | M33 | 55,4 | 26 | 50 | DIN 934 | | | on request | | | 07210-636 | stainless steel A4 | 70 | M36 | 60,8 | 29 | 55 | DIN 934 | | | on request | |
