        Linchpins DIN 11023

Item description/product images

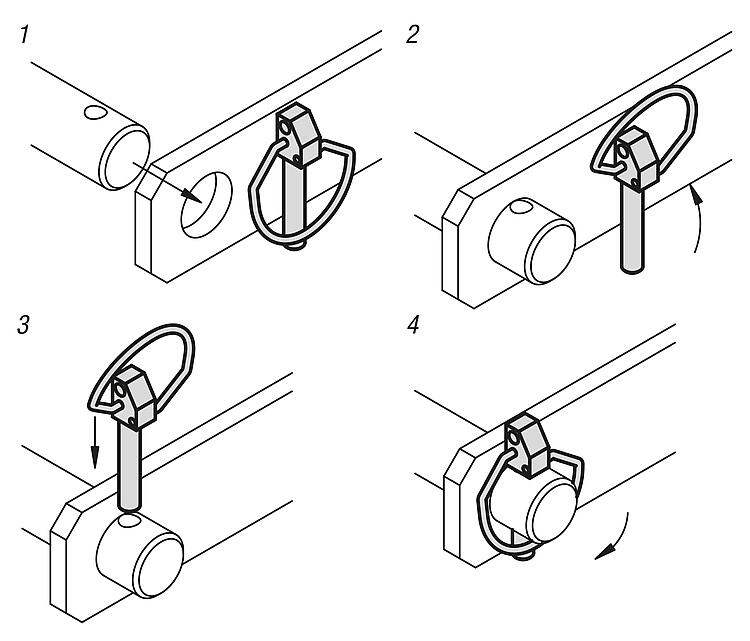

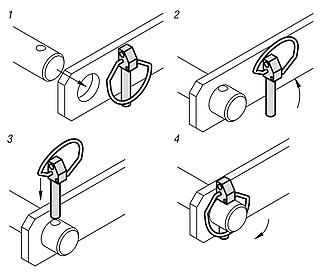

DescriptionMaterial:Steel.Version:Steel electro zinc-plated.Note:Linch pins are used to e.g. secure bolts, tubes and shafts. Linch pins can be manually installed and removed without extra tools in the shortest time.

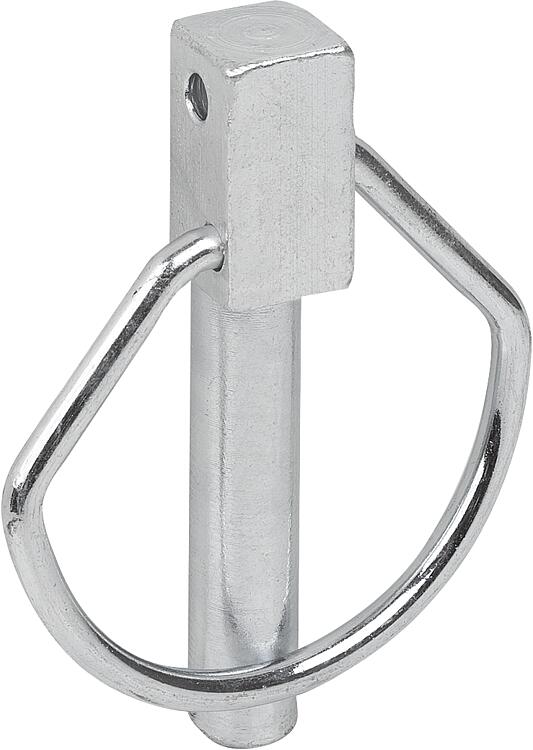

The appearance of the linch pins may differ from those shown in the drawing and illustration.
The nominal size 21x45 is preferred for connecting parts of three-point mounted appliances.

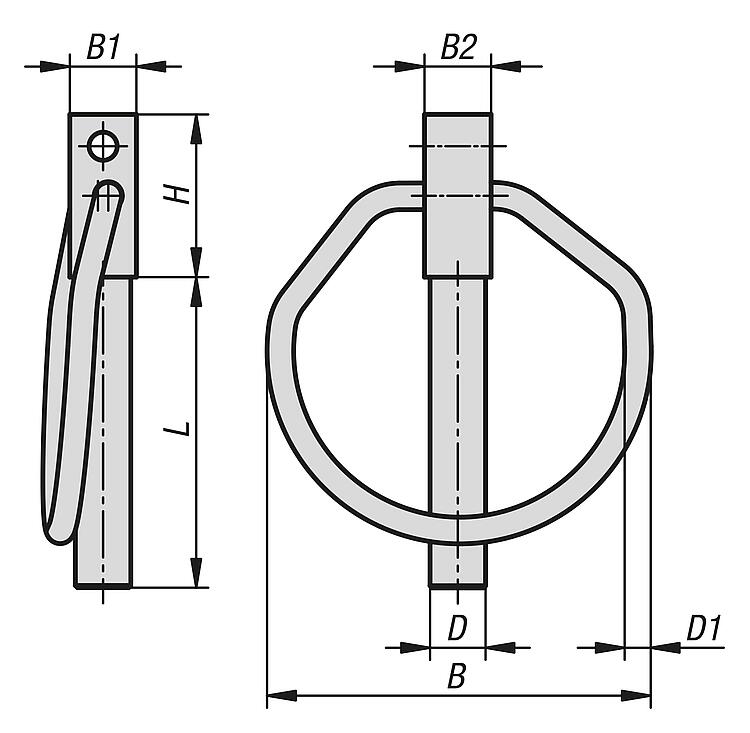

For dimension B max. it must be possible to flip the spring clip over the axle or shaft without hindrance.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07337-10 Linchpins DIN 11023

265 kB

Overview of standards for fasteners

687 kB

Drawings

Item selection/filter

Order No.	Nominal size	D	L	B max.	B1 max.	B2 max.	D1 min.	H max.	Price
07337-10-05X32	5x32	4,5 +0,3/-0,2	32	36	11,5	7	2,5	18	on request
07337-10-06X42	6x42	5,5 +0,3/-0,2	42	52	14	8	3,6	22	on request
07337-10-08X42	8x42	7,5 +0,3/-0,2	42	52	15	9	3,6	22	on request
07337-10-10X45	10x45	9,5 +0,3/-0,2	45	52	15	12	3,6	22	on request
07337-10-12X45	12x45	11 ±0,5	45	52	15	14	3,6	22	on request
07337-10-12X55	12x55	11 ±0,5	55	60	15	14	4	22	on request
