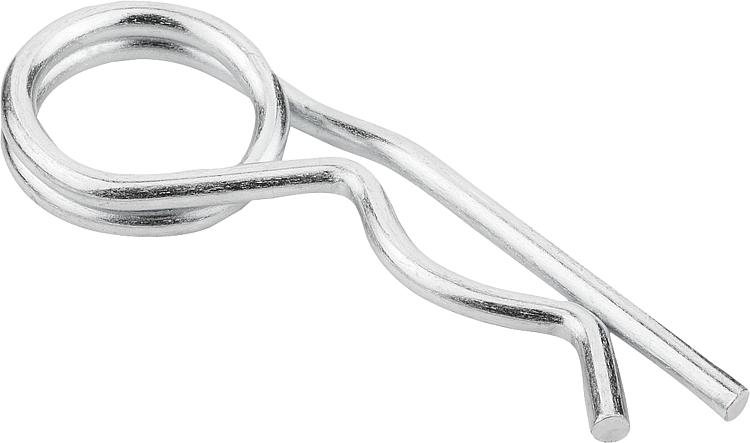

R-clips similar to DIN 11024, Form D, double coil

go back

Products
- Product overview
  - Flexible standard component system
    - Fasteners Ball-end thrust screws Thrust screws and thrust pads Grippers Torque bolts Threaded inserts Lifting bolts Swivel bales Ring bolts
      - Connecting elements
        R-clips similar to DIN 11024
        R-clips similar to DIN 11024, Form D, double coil

Item description/product images

DescriptionMaterial:Steel or stainless steel A2.Version:Steel electro zinc-plated.
Stainless steel bright.Note:R-clips are used for securing bolts and axles. They are easy to install and can be reused. The ends have no sharp edges.

Double coil R-clips have a flatter spring characteristics and are easier to install. The double coil allows a tether cable to be attached to prevent loss.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07337_D R-clips similar to DIN 11024, Form D, double coil

120 kB

Overview of standards for fasteners

687 kB

Drawings

Item selection/filter

Order No.	Form	Main material	D1	D2	D3	D4=for screw Ø	L1	L2	Price
07337-12225	D	steel	2,25	20	2,5	9-11,2	42	24	on request
07337-12280	D	steel	2,8	20	3,2	11,2-14	48	26	on request
07337-12360	D	steel	3,6	20	4	14-20	64	32	on request
07337-12450	D	steel	4,5	25	5	20-26	80	39	on request
07337-12560	D	steel	5,6	25	6,3	26-34	97	45	on request
07337-12630	D	steel	6,3	30	7	34-45	125	56	on request
07337-12700	D	steel	7	30	8	45-56	150	63	on request
07337-22225	D	stainless steel A2	2,25	20	2,5	7-9	42	24	on request
07337-22280	D	stainless steel A2	2,8	20	3,2	11-14	48	26	on request
07337-22360	D	stainless steel A2	3,6	20	4	14-20	64	32	on request
07337-22450	D	stainless steel A2	4,5	25	5	20-26	80	39	on request
07337-22560	D	stainless steel A2	5,6	25	6,3	26-34	97	45	on request
