        R-clips similar to DIN 11024

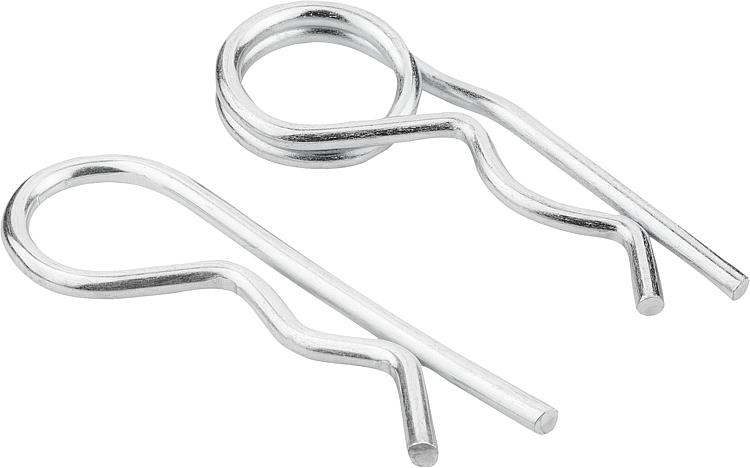

Item description/product images

Show/filter all items

DescriptionMaterial:Steel or stainless steel A2.Version:Steel electro zinc-plated.
Stainless steel bright.Note:R-clips are used for securing bolts and axles. They are easy to install and can be reused. The ends have no sharp edges.

Double coil R-clips have a flatter spring characteristics and are easier to install. The double coil allows a tether cable to be attached to prevent loss.Drawing reference:

Form E: with single coil.
Form D: with double coil (coil direction can differ from the drawing).

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07337 R-clips similar to DIN 11024

119 kB

Overview of standards for fasteners

687 kB

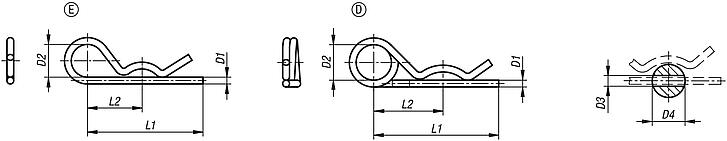

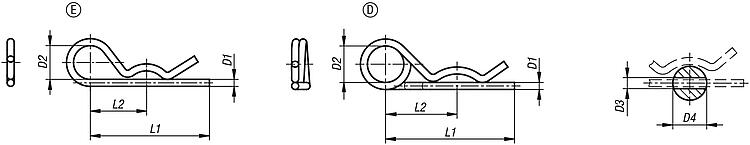

Drawings (total overview)

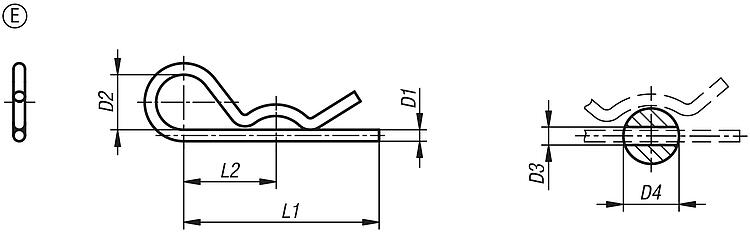

R-clips similar to DIN 11024, Form E, single coil

More information

Drawings

R-clips similar to DIN 11024, Form E, single coil

Item selection/filter

	E	steel stainless steel A2	2 3 4 5 6 7 2,5	10 18 20 24 30 11 16 19 26	2,5 3,5 4,5 6 7 8 3	9-14 10-16 16-20 20-28 28-40 28-45 7-8 16-18 18-20	50 60 85 105 40 46 64 82 110	25 28 30 40 50 24 34 36 45 60				Reset
Order No.	Form	Main material	D1	D2	D3	D4=for screw Ø	L1	L2	CAD	Acc.	Price	Order
07337-11200	E	steel	2	10	2,5	9-14	50	25			on request
07337-11300	E	steel	3	18	3,5	10-16	60	28			on request
07337-11400	E	steel	4	20	4,5	16-20	60	30			on request
07337-11500	E	steel	5	24	6	20-28	85	40			on request
07337-11600	E	steel	6	30	7	28-40	105	50			on request
07337-11700	E	steel	7	30	8	28-45	105	50			on request
07337-21200	E	stainless steel A2	2	10	2,5	7-8	40	25			on request
07337-21250	E	stainless steel A2	2,5	11	3	10-16	46	24			on request
07337-21300	E	stainless steel A2	3	16	3,5	16-18	60	34			on request
07337-21400	E	stainless steel A2	4	19	4,5	18-20	64	36			on request
07337-21500	E	stainless steel A2	5	26	6	20-28	82	45			on request
07337-21600	E	stainless steel A2	6	30	7	28-40	110	60			on request

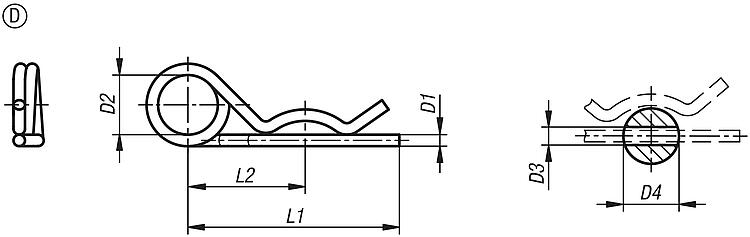

R-clips similar to DIN 11024, Form D, double coil

More information

Drawings

R-clips similar to DIN 11024, Form D, double coil

Item selection/filter

	D	steel stainless steel A2	2,25 2,8 3,6 4,5 5,6 6,3 7	20 25 30	2,5 3,2 4 5 6,3 7 8	9-11,2 11,2-14 14-20 20-26 26-34 34-45 45-56 7-9 11-14	42 48 64 80 97 125 150	24 26 32 39 45 56 63				Reset
Order No.	Form	Main material	D1	D2	D3	D4=for screw Ø	L1	L2	CAD	Acc.	Price	Order
07337-12225	D	steel	2,25	20	2,5	9-11,2	42	24			on request
07337-12280	D	steel	2,8	20	3,2	11,2-14	48	26			on request
07337-12360	D	steel	3,6	20	4	14-20	64	32			on request
07337-12450	D	steel	4,5	25	5	20-26	80	39			on request
07337-12560	D	steel	5,6	25	6,3	26-34	97	45			on request
07337-12630	D	steel	6,3	30	7	34-45	125	56			on request
07337-12700	D	steel	7	30	8	45-56	150	63			on request
07337-22225	D	stainless steel A2	2,25	20	2,5	7-9	42	24			on request
07337-22280	D	stainless steel A2	2,8	20	3,2	11-14	48	26			on request
07337-22360	D	stainless steel A2	3,6	20	4	14-20	64	32			on request
07337-22450	D	stainless steel A2	4,5	25	5	20-26	80	39			on request
07337-22560	D	stainless steel A2	5,6	25	6,3	26-34	97	45			on request
