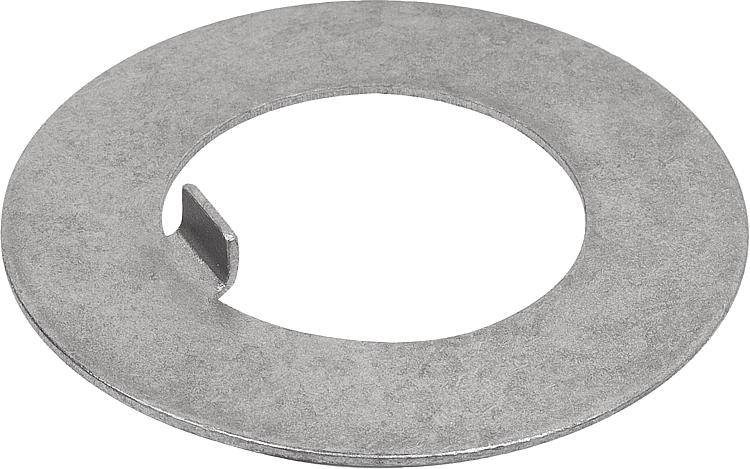

        Locking plate steel DIN 462

Item description/product images

DescriptionMaterial:Steel.Version:Bright.Note:DIN 462 locking plates are used to secure the DIN 1804 slotted round nuts. To use the locking plates, a keyway must first be cut into the screw thread.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07590-03 Locking plate steel DIN 462

212 kB

Overview of standards for fasteners

687 kB

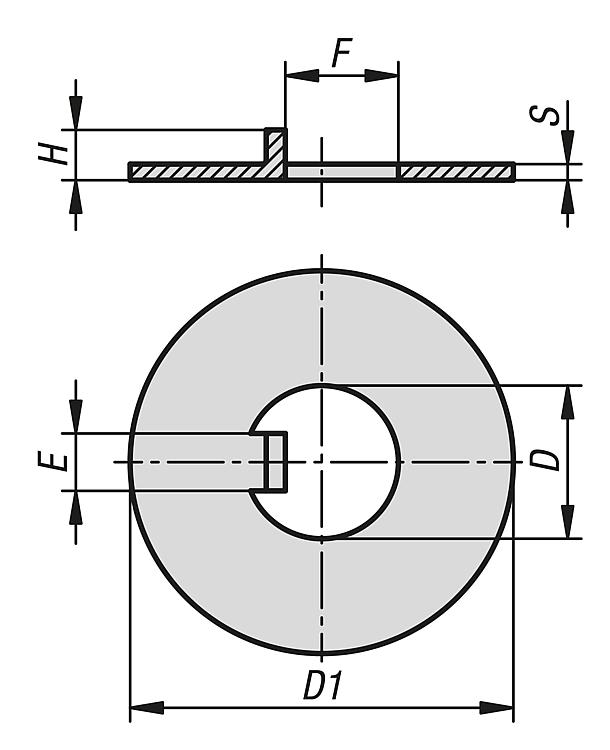

Drawings

Item selection/filter

	10 14 16 18 20 22 24 28 30 32 35 38 40 42	25 30 32 34 36 40 42 50 52 55 58 62	4 5 6 7 8	7,4 11,4 13,5 15,4 17,5 19,5 21,6 25,5 27,5 29,6 32,6 36,3 37,3 39,3	3 4 5	0,8 1 1,2	07590-110/07590-210 07590-112/07590-212 07590-114/07590-214 07590-116/07590-216 07590-118/07590-218 07590-120/07590-220 07590-122/07590-222 07590-124/07590-224 07590-126/07590-226 07590-128/07590-228 07590-130/07590-230 07590-132/07590-232 07590-135/07590-235 07590-138/07590-238				Reset
Order No.	D	D1	E	F	H	S	Suitable for	CAD	Acc.	Price	Order
07590-03-010	10	25	4	7,4	3	0,8	07590-110/07590-210			on request
07590-03-014	14	30	5	11,4	3	0,8	07590-112/07590-212			on request
07590-03-016	16	32	5	13,5	3	1	07590-114/07590-214			on request
07590-03-018	18	34	6	15,4	4	1	07590-116/07590-216			on request
07590-03-020	20	36	6	17,5	4	1	07590-118/07590-218			on request
07590-03-022	22	40	6	19,5	4	1	07590-120/07590-220			on request
07590-03-024	24	42	6	21,6	4	1	07590-122/07590-222			on request
07590-03-028	28	50	7	25,5	5	1	07590-124/07590-224			on request
07590-03-030	30	50	7	27,5	5	1,2	07590-126/07590-226			on request
07590-03-032	32	52	7	29,6	5	1,2	07590-128/07590-228			on request
07590-03-035	35	55	7	32,6	5	1,2	07590-130/07590-230			on request
07590-03-038	38	58	8	36,3	5	1,2	07590-132/07590-232			on request
07590-03-040	40	62	8	37,3	5	1,2	07590-135/07590-235			on request
07590-03-042	42	62	8	39,3	5	1,2	07590-138/07590-238			on request
