        Shaft collar, plastic

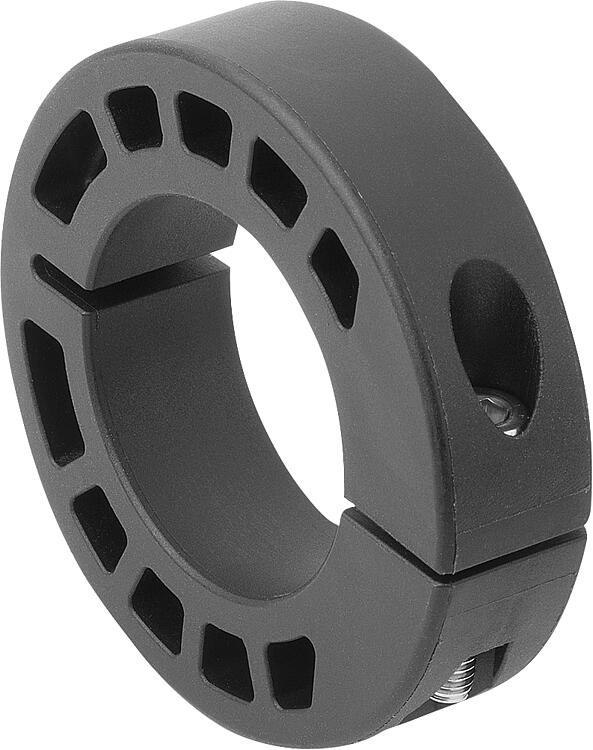

Item description/product images

DescriptionMaterial:Shaft collar plastic.
Screw and nut stainless steel.Note:These plastic shaft collars are an excellent solution for axially securing shafts.

They are light and easy to fit and can be mounted radially as a stop. These shaft collars are especially effective in combination with pillow block and flange block bearings.

The shaft collars are made from high-quality plastic and offer excellent resistance to corrosion and wear.

Clamping is achieved by reducing the slot width via the stainless steel tightening nut, which can be tightened or loosened using a standard spanner.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07810-05 Shaft collar, plastic

231 kB

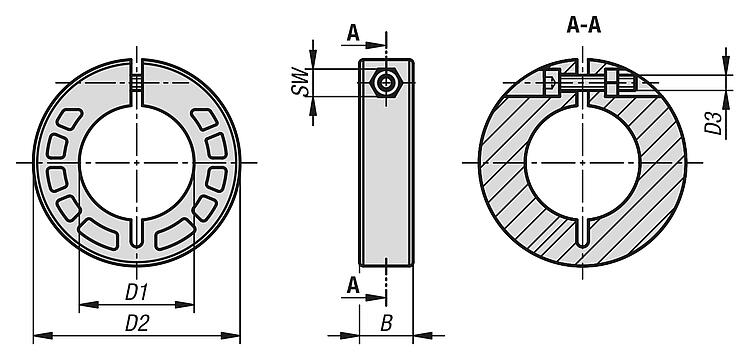

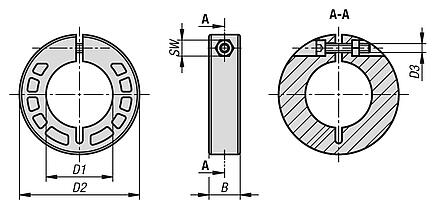

Drawings

Item selection/filter

	14 18	20 25 30 40 50	40 45 54 60 78	M4 M6	3 5				Reset
Order No.	B	D1	D2	D3	SW	CAD	Acc.	Price	Order
07810-05-20	14	20	40	M4	3			on request
07810-05-25	14	25	45	M4	3			on request
07810-05-30	14	30	54	M4	3			on request
07810-05-40	14	40	60	M4	3			on request
07810-05-50	18	50	78	M6	5			on request
