        Grub screws with thrust point, similar to DIN 6332

Item description/product images

DescriptionMaterial:Steel or stainless steel.Version:Steel: thrust point case-hardened, black.

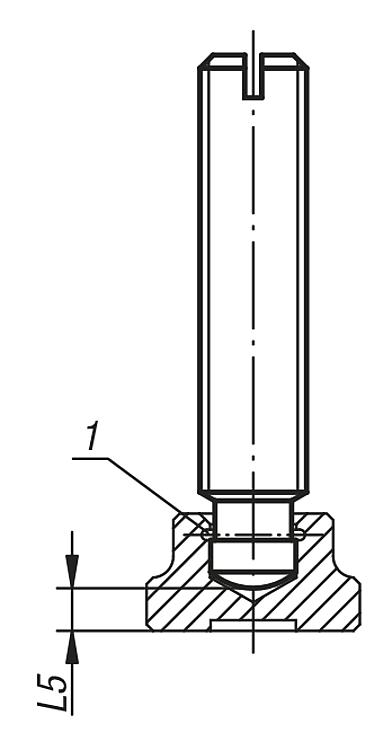

Stainless steel: bright.Note:The thrust pin of the DIN 6332 grub screws is designed for direct clamping and for use together with thrust pads 07140.Drawing reference:

1) snap ring

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07120 Grub screws with thrust point, similar to DIN 6332

141 kB

Overview of standards for fasteners

687 kB

Drawings

Overview of items (compressed)

Item selection/filter

	steel stainless steel	M6 M8 M10 M12 M14 M16 M20	30 35 40 50 45 60 55 65 80 70 100 125 90 150	4,5 6 8 10 12 15,5	4 5,4 7,2 9 11 14,4	24 29 34 44 27,5 32,5 37,5 42,5 52,5 41 46 51 56 71 50 55 60 70 90 48 68 88 53 58 113 66 76 86 111 136	6 7,5 9 10 12 14	2,5 3 4,5 5 5,5	2,2 3 3,6 4,5 5 5,3 5,6				Reset
Order No.	Main material	D1	L1	D2	D3	L	L2	L3	L5	CAD	Acc.	Price	Order
07120-06X30	steel	M6	30	4,5	4	24	6	2,5	2,2			on request
07120-06X35	steel	M6	35	4,5	4	29	6	2,5	2,2			on request
07120-06X40	steel	M6	40	4,5	4	34	6	2,5	2,2			on request
07120-06X50	steel	M6	50	4,5	4	44	6	2,5	2,2			on request
07120-08X35	steel	M8	35	6	5,4	27,5	7,5	3	3			on request
07120-08X40	steel	M8	40	6	5,4	32,5	7,5	3	3			on request
07120-08X45	steel	M8	45	6	5,4	37,5	7,5	3	3			on request
07120-08X50	steel	M8	50	6	5,4	42,5	7,5	3	3			on request
07120-08X60	steel	M8	60	6	5,4	52,5	7,5	3	3			on request
07120-10X50	steel	M10	50	8	7,2	41	9	4,5	3,6			on request
07120-10X55	steel	M10	55	8	7,2	46	9	4,5	3,6			on request
07120-10X60	steel	M10	60	8	7,2	51	9	4,5	3,6			on request
07120-10X65	steel	M10	65	8	7,2	56	9	4,5	3,6			on request
07120-10X80	steel	M10	80	8	7,2	71	9	4,5	3,6			on request
07120-12X60	steel	M12	60	8	7,2	50	10	4,5	4,5			on request
07120-12X65	steel	M12	65	8	7,2	55	10	4,5	4,5			on request
07120-12X70	steel	M12	70	8	7,2	60	10	4,5	4,5			on request
07120-12X80	steel	M12	80	8	7,2	70	10	4,5	4,5			on request
07120-12X100	steel	M12	100	8	7,2	90	10	4,5	4,5			on request
07120-14X60	steel	M14	60	10	9	48	12	5	5			on request
07120-14X80	steel	M14	80	10	9	68	12	5	5			on request
07120-14X100	steel	M14	100	10	9	88	12	5	5			on request
07120-16X65	steel	M16	65	12	11	53	12	5	5,3			on request
07120-16X70	steel	M16	70	12	11	58	12	5	5,3			on request
07120-16X80	steel	M16	80	12	11	68	12	5	5,3			on request
07120-16X100	steel	M16	100	12	11	88	12	5	5,3			on request
07120-16X125	steel	M16	125	12	11	113	12	5	5,3			on request
07120-20X80	steel	M20	80	15,5	14,4	66	14	5,5	5,6			on request
07120-20X90	steel	M20	90	15,5	14,4	76	14	5,5	5,6			on request
07120-20X100	steel	M20	100	15,5	14,4	86	14	5,5	5,6			on request
07120-20X125	steel	M20	125	15,5	14,4	111	14	5,5	5,6			on request
07120-20X150	steel	M20	150	15,5	14,4	136	14	5,5	5,6			on request
07120-061X30	stainless steel	M6	30	4,5	4	24	6	2,5	2,2			on request
07120-061X35	stainless steel	M6	35	4,5	4	29	6	2,5	2,2			on request
07120-061X40	stainless steel	M6	40	4,5	4	34	6	2,5	2,2			on request
07120-061X50	stainless steel	M6	50	4,5	4	44	6	2,5	2,2			on request
07120-081X35	stainless steel	M8	35	6	5,4	27,5	7,5	3	3			on request
07120-081X40	stainless steel	M8	40	6	5,4	32,5	7,5	3	3			on request
07120-081X45	stainless steel	M8	45	6	5,4	37,5	7,5	3	3			on request
07120-081X50	stainless steel	M8	50	6	5,4	42,5	7,5	3	3			on request
07120-081X60	stainless steel	M8	60	6	5,4	52,5	7,5	3	3			on request
07120-101X50	stainless steel	M10	50	8	7,2	41	9	4,5	3,6			on request
07120-101X55	stainless steel	M10	55	8	7,2	46	9	4,5	3,6			on request
07120-101X60	stainless steel	M10	60	8	7,2	51	9	4,5	3,6			on request
07120-101X65	stainless steel	M10	65	8	7,2	56	9	4,5	3,6			on request
07120-101X80	stainless steel	M10	80	8	7,2	71	9	4,5	3,6			on request
07120-121X60	stainless steel	M12	60	8	7,2	50	10	4,5	4,5			on request
07120-121X65	stainless steel	M12	65	8	7,2	55	10	4,5	4,5			on request
07120-121X70	stainless steel	M12	70	8	7,2	60	10	4,5	4,5			on request
07120-121X80	stainless steel	M12	80	8	7,2	70	10	4,5	4,5			on request
07120-121X100	stainless steel	M12	100	8	7,2	90	10	4,5	4,5			on request
07120-141X60	stainless steel	M14	60	10	9	48	12	5	5			on request
07120-141X80	stainless steel	M14	80	10	9	68	12	5	5			on request
07120-141X100	stainless steel	M14	100	10	9	88	12	5	5			on request
07120-161X65	stainless steel	M16	65	12	11	53	12	5	5,3			on request
07120-161X70	stainless steel	M16	70	12	11	58	12	5	5,3			on request
07120-161X80	stainless steel	M16	80	12	11	68	12	5	5,3			on request
07120-161X100	stainless steel	M16	100	12	11	88	12	5	5,3			on request
07120-161X125	stainless steel	M16	125	12	11	113	12	5	5,3			on request
07120-201X80	stainless steel	M20	80	15,5	14,4	66	14	5,5	5,6			on request
07120-201X90	stainless steel	M20	90	15,5	14,4	76	14	5,5	5,6			on request
07120-201X100	stainless steel	M20	100	15,5	14,4	86	14	5,5	5,6			on request
07120-201X125	stainless steel	M20	125	15,5	14,4	111	14	5,5	5,6			on request
07120-201X150	stainless steel	M20	150	15,5	14,4	136	14	5,5	5,6			on request
