Magnets deep pot AlNiCo without fitting tolerance

09061

Magnets deep pot AlNiCo without fitting tolerance

Products
- Product overview
  - Flexible standard component system
    - Magnets
      - Magnets deep pot AlNiCo without fitting tolerance

Item description/product images

DescriptionMaterial:Housing, steel.
Magnetic core AlNiCo.Version:Electro zinc-plated.Note:Shielded system. Diameter “D” without fitting tolerance. Fastening possibilities are press-in, shrink-fitting or gluing.

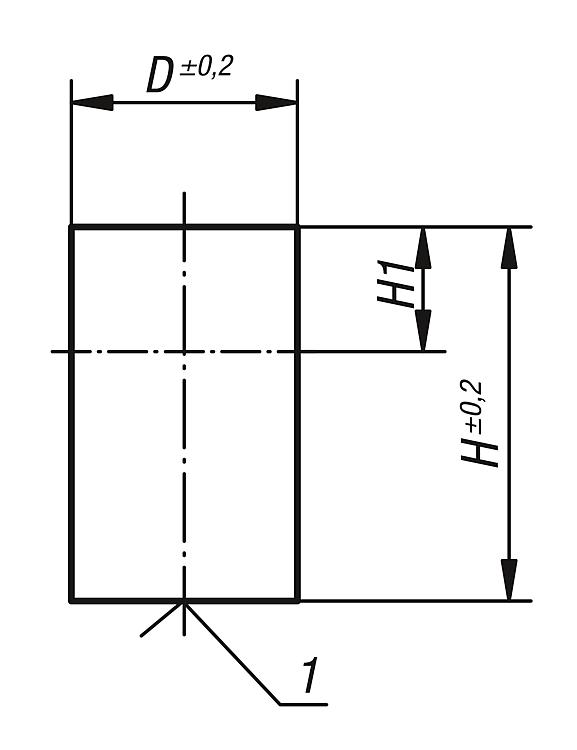

Deep pot magnets can be shortened by the dimension “H1” with no loss of magnetic force.Temperature range:max. 450°C.Drawing reference:

1) magnetic face

Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 09061 Magnets deep pot AlNiCo without fitting tolerance

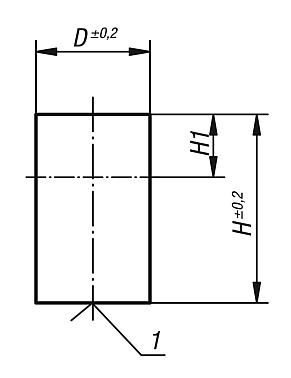

Drawings

Magnets deep pot AlNiCo without fitting tolerance

Item selection/filter

Order No.	D	H	H1	Magnetic force N	CAD	Acc.	Price	Order
09061-01	6	20	12	1,5			on request
09061-02	8	20	11	3,5			on request
09061-03	10	20	10	7			on request
09061-04	13	20	9	10			on request
09061-05	16	20	5	18			on request
09061-06	20	25	6	42			on request
09061-07	25	35	10	96			on request
09061-08	32	40	8	180			on request
09061-09	40	50	10	240			on request
