Magnets shallow pot hard ferrite

go back

Products
- Product overview
  - Flexible standard component system
    - Magnets
      - Magnets shallow pot hard ferrite

Item description/product images

DescriptionMaterial:Housing, steel.
Magnetic core hard ferrite.Version:Housing, electro zinc-plated.Note:Shallow pot magnets without threaded bush. These magnets are pressed or glued into the receiving holes.

Hairline cracks in the magnetic material are unavoidable for technical reasons in the D=80 version. They do not impair the attracting function of the magnets in any way.Temperature range:max. 200°C.Drawing reference:

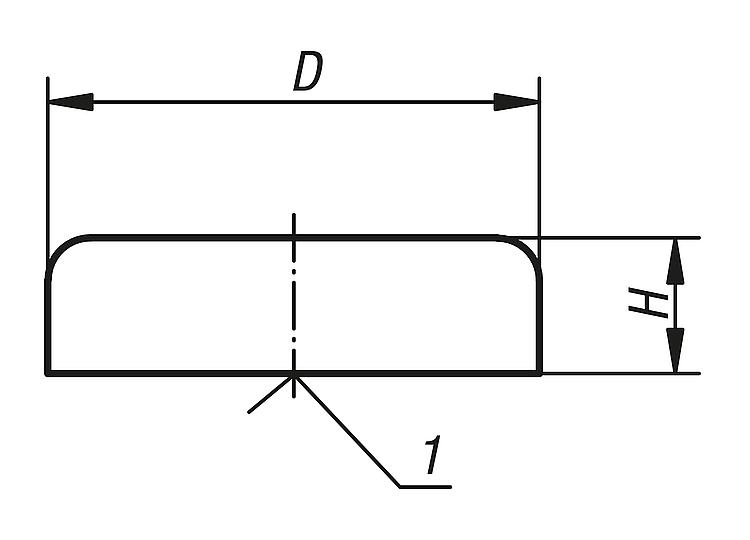

1) magnetic face

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 09064 Magnets shallow pot hard ferrite

136 kB

Drawings

Item selection/filter

	10 ±0,15 13 ±0,15 16 ±0,15 20 ±0,15 25 ±0,15 32 ±0,20 40 ±0,20 50 ±0,20 63 ±0,20 80 ±0,25	4,5 6 7 8 10 14 18	4 10 18 30 40 80 125 220 350 600				Reset
Order No.	D	H	Magnetic force N	CAD	Acc.	Price	Order
09064-01	10 ±0,15	4,5	4			on request
09064-02	13 ±0,15	4,5	10			on request
09064-03	16 ±0,15	4,5	18			on request
09064-04	20 ±0,15	6	30			on request
09064-05	25 ±0,15	7	40			on request
09064-06	32 ±0,20	7	80			on request
09064-07	40 ±0,20	8	125			on request
09064-08	50 ±0,20	10	220			on request
09064-09	63 ±0,20	14	350			on request
09064-10	80 ±0,25	18	600			on request
