        Risers Form E

Item description/product images

DescriptionMaterial:Carbon steel.Version:Black oxidised.
Contact faces ground.Note:Riser blocks are used to achieve a certain support height. The additional tapped holes in the risers are for mounting further fixture elements.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 01247-05 Risers Form E

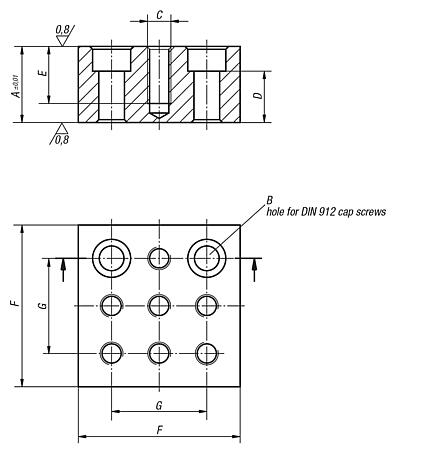

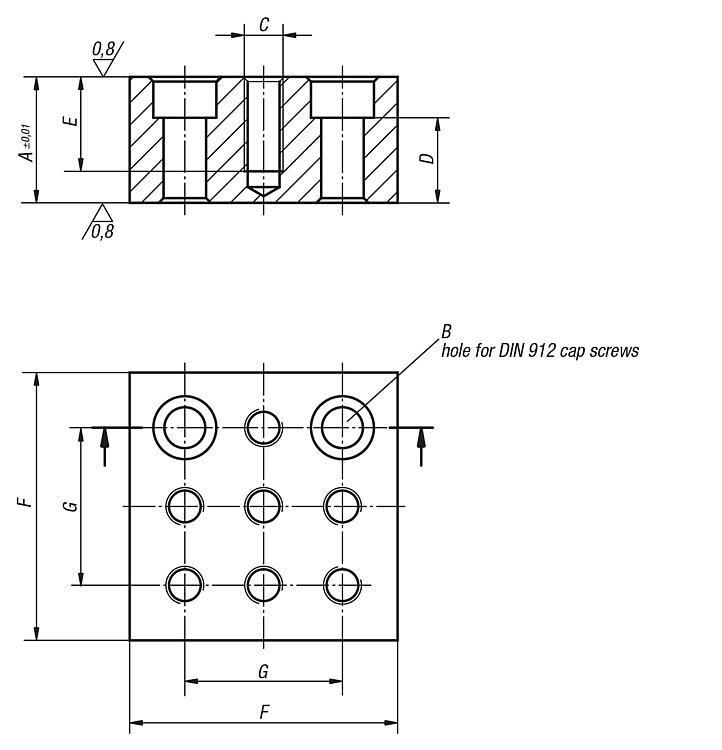

Drawings

Risers Form E

Item selection/filter

Order No.	A	B hole for DIN 912 screw	C	D	E	F	G	weight kg	CAD	Acc.	Price	Order
01247-05-14212025	25	M12	M12	12	25	85	50	1.208			on request
01247-05-14212032	32	M12	M12	19	25	85	50	1.52			on request
01247-05-14212040	40	M12	M12	27	30	85	50	1.95			on request
01247-05-14212050	50	M12	M12	37	30	85	50	2.454			on request
01247-05-14216025	25	M16	M16	8	25	85	50	1.005			on request
01247-05-14216032	32	M16	M16	15	32	85	50	1.289			on request
01247-05-14216040	40	M16	M16	23	35	85	50	1.68			on request
01247-05-14216050	50	M16	M16	33	35	85	50	2.18			on request
