        Ball transfer units with steel housing

Item description/product images

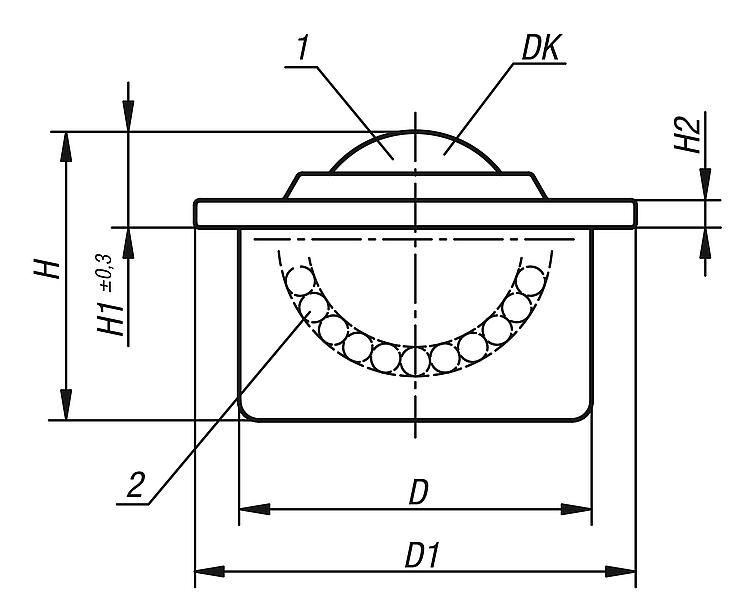

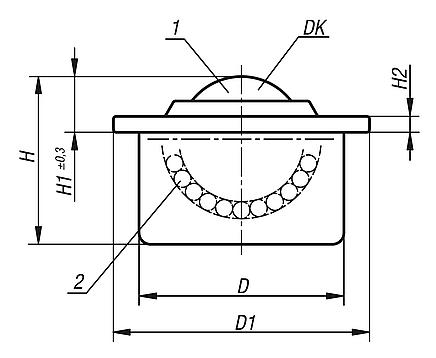

DescriptionMaterial:Electro zinc-plated steel or stainless steel.Note:95150-115 has no felt seal.Drawing reference:

1) load ball
2) bearing balls

Form B: cap and housing electro zinc-plated, balls steel
Form C: cap and housing electro zinc-plated, balls stainless steel
Form D: cap, housing and balls stainless steel

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 95150 Ball transfer units with steel housing

252 kB

Drawings

Item selection/filter

Order No.	Form	DK	D	D1	H	H1	H2	Load rating C (N)	Suitable tolerance ring	Price
95150-115	B	15,8	24±0,2	31	21	9,5	2,8	600	95164-024	on request
95150-122	B	22,2	36±0,2	45	30	9,8	2,8	1600	95164-036	on request
95150-130	B	30	45±0,2	55	37	13,8	4	3000	95164-045	on request
95150-145	B	44,5	62±0,2	75	53,5	19	4	6100	95164-062	on request
95150-215	C	15,8	24±0,2	31	21	9,5	2,8	600	95164-024	on request
95150-222	C	22,2	36±0,2	45	30	9,8	2,8	1600	95164-036	on request
95150-230	C	30	45±0,2	55	37	13,8	4	3000	95164-045	on request
95150-245	C	44,5	62±0,2	75	53,5	19	4	6100	95164-062	on request
95150-315	D	15,8	24±0,2	31	21	9,5	2,8	380	95164-024	on request
95150-322	D	22,2	36±0,2	45	30	9,8	2,8	1000	95164-036	on request
95150-330	D	30	45±0,2	55	37	13,8	4	2000	95164-045	on request
