Item description/product images |
|
|
DescriptionMaterial:Spring band steelNote:The use of tolerance rings allows for a greater tolerance range between the parts being assemble.

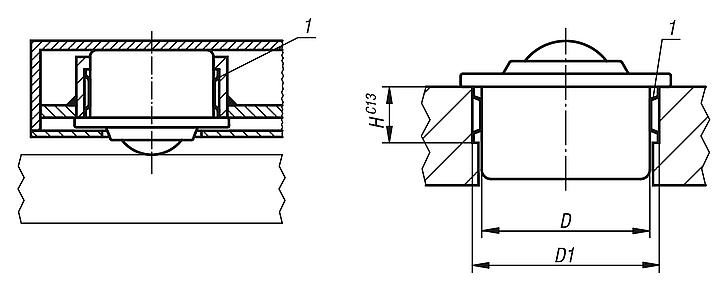

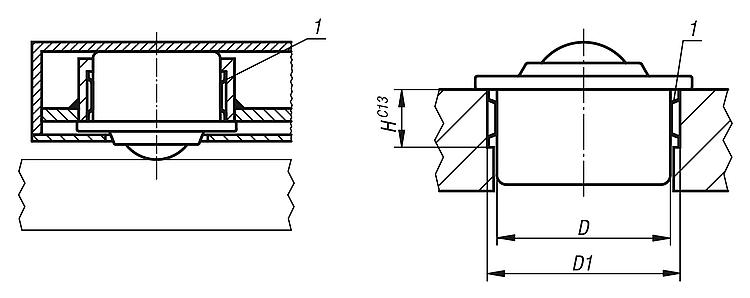

The ball transfer units can be fitted quickly and cost effectively.Drawing reference:Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| | | -
- 25,7 +0,2
- 37,7 +0,2
- 46,7 +0,2
- 64,1 +0,3
- 102,5 +0,35
| | | | | Reset |
|---|
Order No.
| D | Assembly dimensions
D1 | Assembly dimensions
H | CAD | Acc. | Price | Order |
|---|
| 95164-024 | 24 | 25,7 +0,2 | 7 |  | | on request | | | 95164-036 | 36 | 37,7 +0,2 | 12 | | | on request | | | 95164-045 | 45 | 46,7 +0,2 | 12 | | | on request | | | 95164-062 | 62 | 64,1 +0,3 | 15 | | | on request | | | 95164-100 | 100 | 102,5 +0,35 | 19 | | | on request | |
