        Ball transfer units mini

Item description/product images

DescriptionMaterial:Steel version:
Load ball steel.
Bearing balls steel.
Housing electro zinc-plated steel.
Cover electro zinc-plated steel.

Stainless steel version:
Load ball stainless steel.
Bearing balls stainless steel.
Housing stainless steel.
Cover aluminium.Note:The ball transfer units comprise a housing with integrated bearing shell, a cover, a load ball and several supporting balls. For use in measuring instruments, material conveyance in clean rooms and miniature mechanisms.Drawing reference:

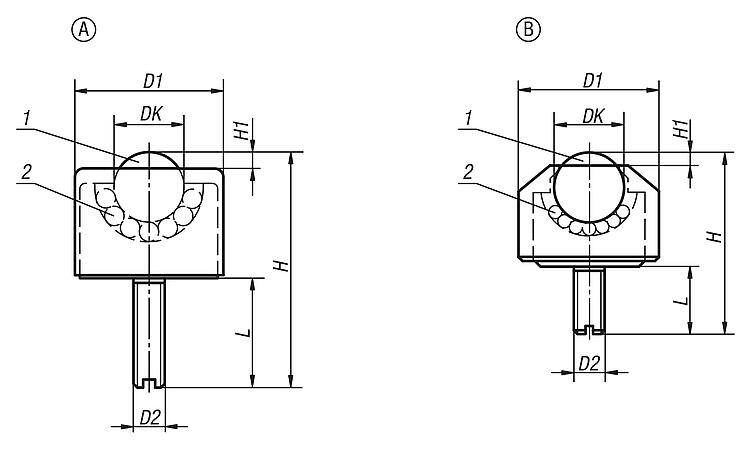

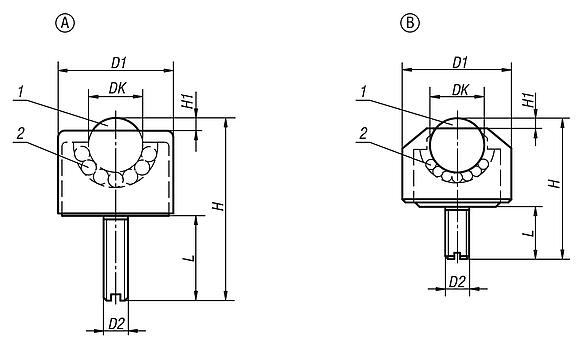

1) load ball
2) bearing balls

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 95180 Ball transfer units mini

162 kB

Drawings

Item selection/filter

	A B	steel stainless steel	4,8 6,4 7,9 9,6 12,7 15,8	13 17 18 23 28 24 8 15	M6 M8 M2 M3 M4	24 26 32 40 48 32,5 8,5 16,5 20,5	1 2 3,5 4	15 18 20 23 12 2,5 6 8	100 200 300 400 500 700 50 150				Reset
Order No.	Form	Main material	DK	D1	D2	H	H1	L	Load rating C (N)	CAD	Acc.	Price	Order
95180-1105	A	steel	4,8	13	M6	24	1	15	100			on request
95180-1106	A	steel	6,4	17	M6	26	2	15	200			on request
95180-1108	A	steel	7,9	18	M8	32	2	18	300			on request
95180-1110	A	steel	9,6	23	M8	40	2	20	400			on request
95180-1113	A	steel	12,7	28	M8	48	3,5	23	500			on request
95180-1216	B	steel	15,8	24	M6	32,5	4	12	700			on request
95180-2205	B	stainless steel	4,8	8	M2	8,5	1	2,5	50			on request
95180-2206	B	stainless steel	6,4	13	M3	16,5	2	6	100			on request
95180-2208	B	stainless steel	7,9	15	M4	20,5	2	8	150			on request
