31152

Joint blocks

go back

Products
- Product overview
  - Measuring and testing components
    - Inspection tables Gauge stands Gauge joints
      - Joint blocks

Item description/product images

DescriptionMaterial:Carbon steel.Version:Black oxidised.Drawing reference:

1) hole only in 31152-0708

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 31152 Joint blocks

207 kB

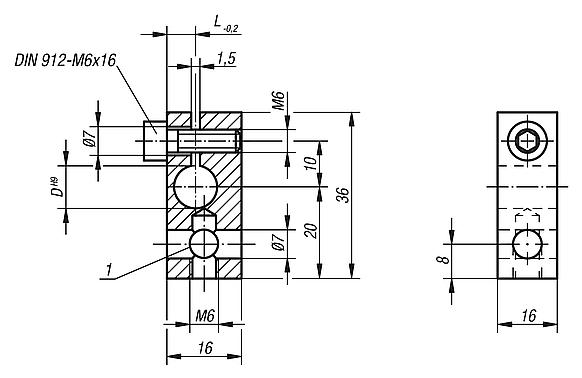

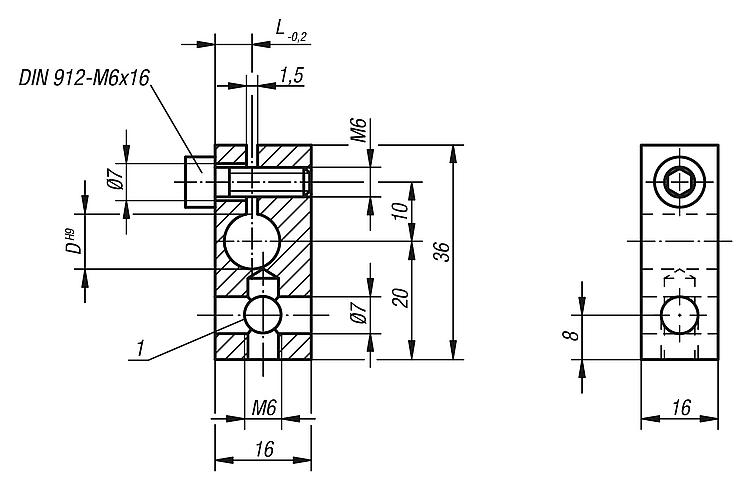

Drawings

Item selection/filter

Order No.	D	L	Price
31152-0708	8	5	on request
31152-0710	10	6	on request
31152-0712	12	7	on request
