DescriptionMaterial:Body aluminium. Shaft stainless steel.Version:Body hard-coated.Note:The rotatable quick-action clamps can be mounted on the basic quick-action clamps, base plates or positioning stages tool-free and can be combined and connected with all products with quick-release mounts.
The quick-action clamp can be rotated. The infinite rotation range is 360°. It is locked using a knurled screw. The angular adjustment is scaled to within 2°.Accessory:Baseplates 34031. Positioning stage 34031-05. Basic quick-action clamp 33227-05. Basic quick-action clamp 34006. Basic quick-action clamp 34021. Cross table 34031-10. Quick-action clamp with angle element 33227-10. Rotatable quick-action clamp with angle element 34007. Precision vice 33225-5003511. Precision centric vice 34010. Adapter 33225-20. Precision 3-jaw chuck 34011. Adapter 33226-05. Needle support 33227. Small part clamp 34012. Magnetic V-block 34013. V-block with spring finger 34013-05. V-block 34013-10.Drawing reference:

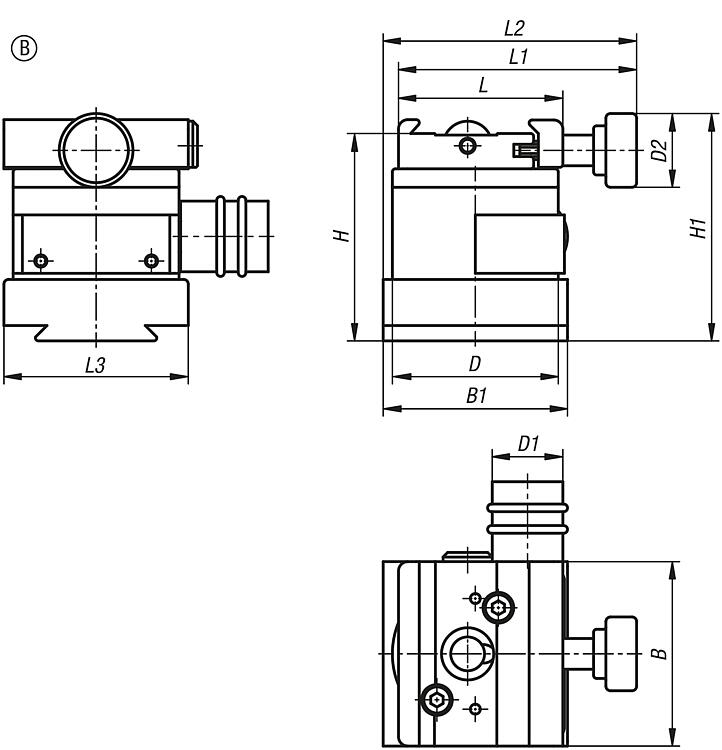

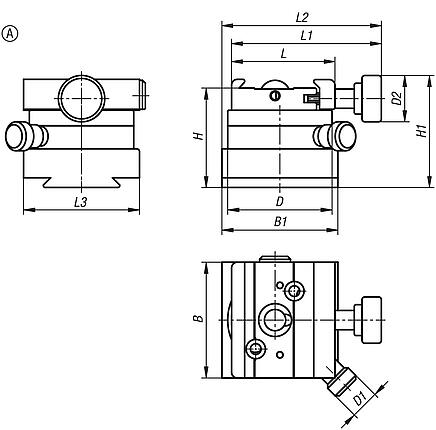

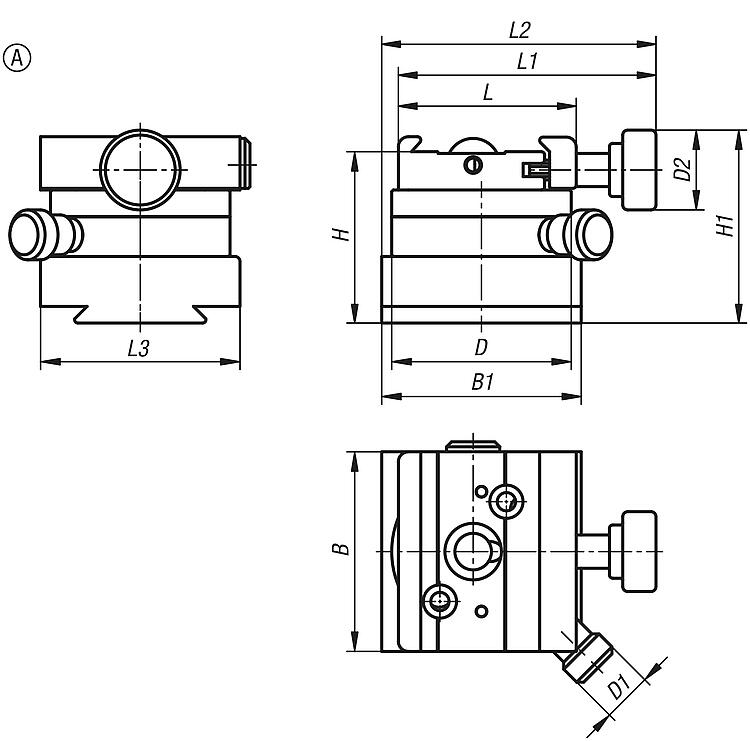

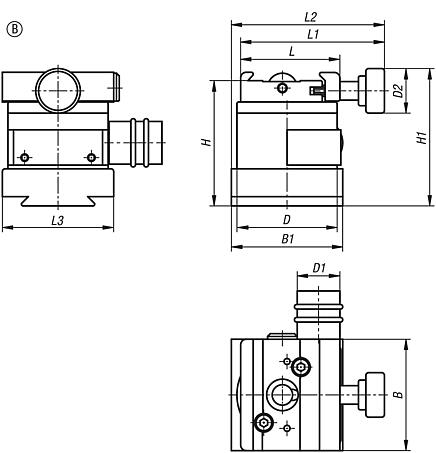

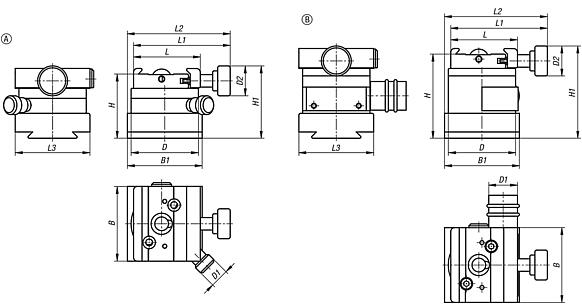

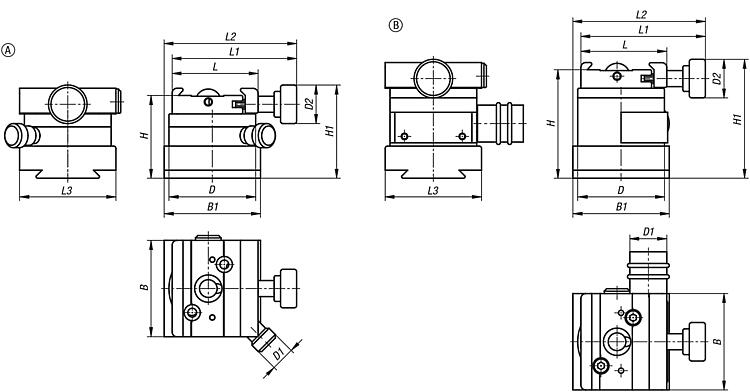

Form A: with 90° indexing Form B: with fine adjustment
