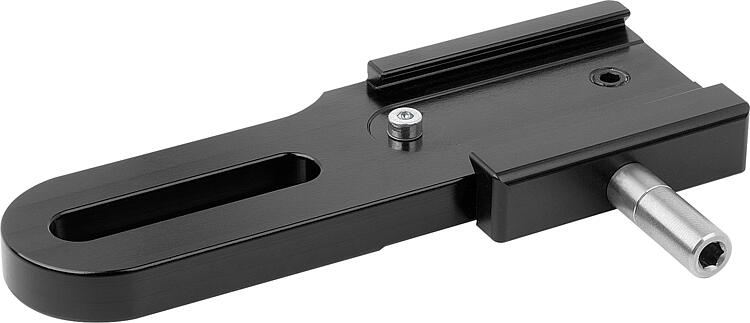

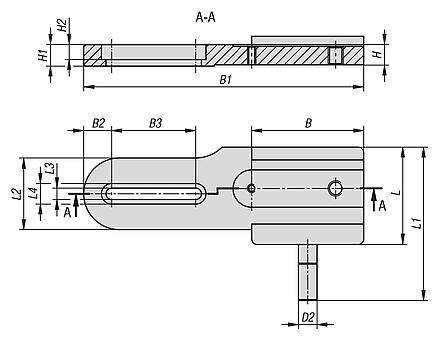

34021Basic quick-action clamp, aluminium with extension |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Aluminium.
Screw stainless steel.Version:Hard anodised.
Screws bright.Note:The quick-action clamps serve as the basis of a quick-change system. The quick-action clamps can be mounted directly on the machine table or baseplate via the extension and positioned individually using the slotted hole. The quick-action clamps can be connected tool-free to all products which have a quick-release mount.Accessory:Quick-action clamp with angle element 33227-10.
Rotatable quick-action clamp with angle element 34007.
Rotatable quick-action clamp 34007-02.
Precision vice 33225-5003511.
Precision centric vice 34010.
Precision 3-jaw chuck 34011.
Adapter 33226-05.
Needle support 33227.
Small part clamp 34012.
Magnetic V-block 34013.
V-block with spring finger 34013-05.
V-block 34013-10.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

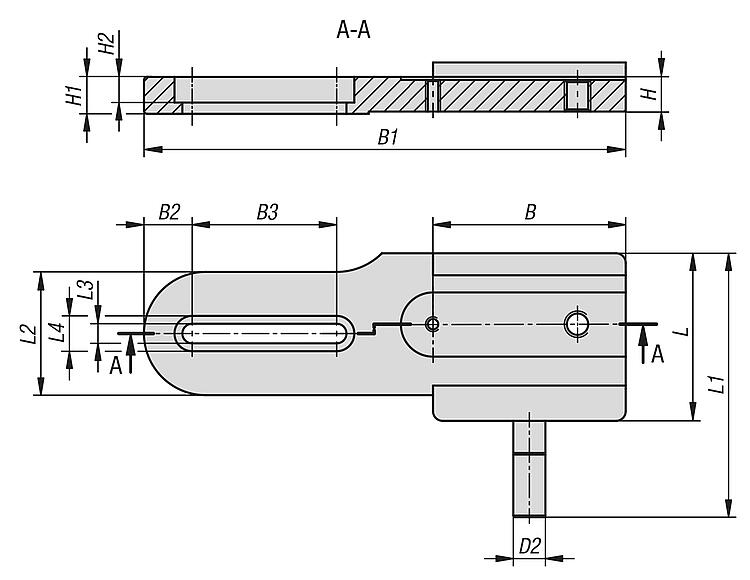

| Order No. | B
| B1 | B2 | B3 | D2 | H | H1 | H2 | L | L1 | L2 | L3 | L4 | CAD | Acc. | Price | Order |
|---|
| 34021-15038 | 60 | 150 | 15 | 45 | 10 | 10,8 | 11,5 | 8 | 53,5 | 83,6 | 38,4 | 6,1 | 11 |  | | on request | |
