DescriptionMaterial:Body: die-cast zinc.
Slide elements: plastic POM.
Attachment parts: electro zinc-plated steel.
O-ring: EPDM.Note:Metal profile slider with clipped-on plastic slide element. Profile sliders enable low-wear linear movement of type I aluminium profiles with 8 mm slots. The absence of lubrication makes the system extremely insensitive to dirt.
The maximum permissible load for a profile slider is Fmax. = 50 N.
Slide guides with several slide carriages must be constructed as a combination of fixed bearing (Form F) and floating bearing (Form L). This compensates for form tolerances and ensures light movement.

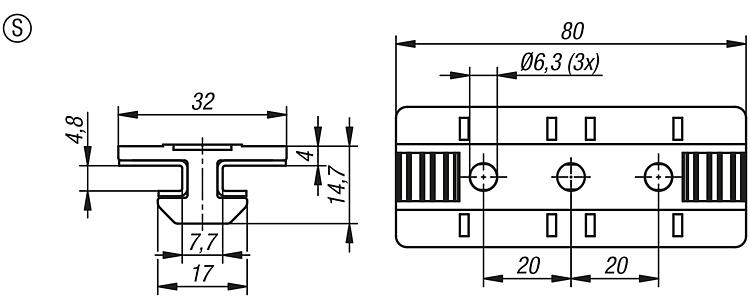

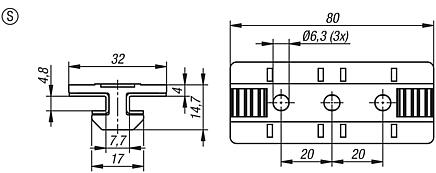

Form S: A set for connecting any add-on elements.

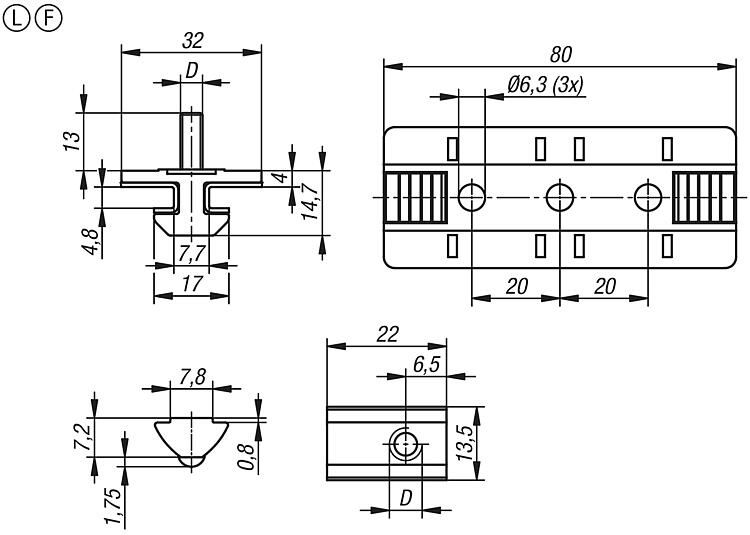

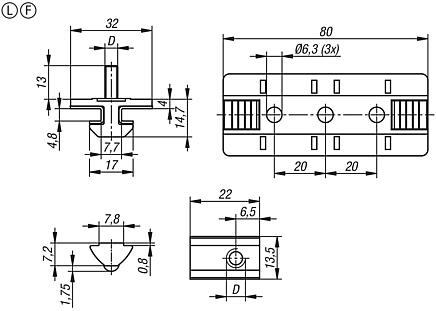

Form L: A set to use as a floating bearing.
Form F: A set to use as a fixed bearing.Supplied withStyle S: Profile slider with slide elements.
2x DIN 439 B M6 hex nuts.
Style L: Profile slider with slide elements.
2x ISO 7380 - M5x25 panhead screws.
2x DIN 3771 - 5x1,5 O-rings.
2x M5 slot keys for 8mm slots.
Style F: Profile slider with slide elements.
2x ISO 7380 M6x25 panhead screws.
2x DIN 3771 5x1,5 O-rings.
2x M6 slot keys for 8 mm slots.
Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

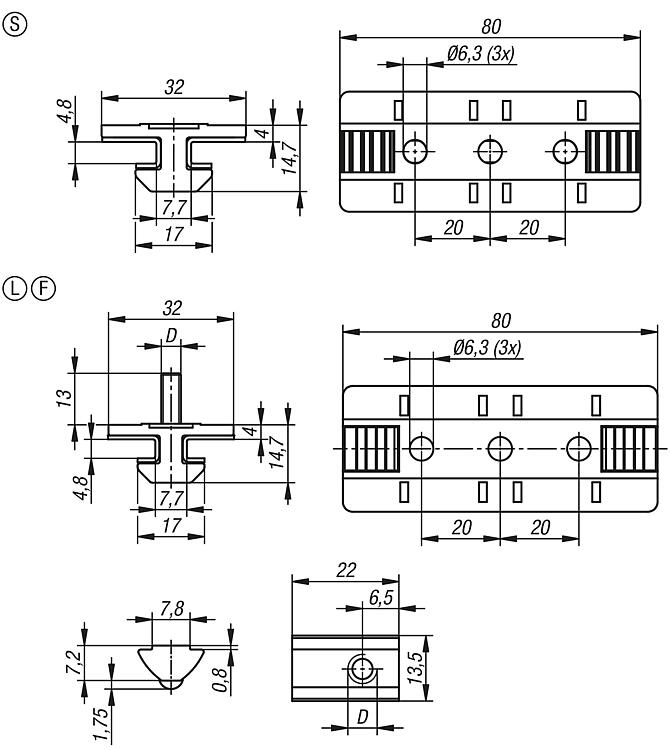

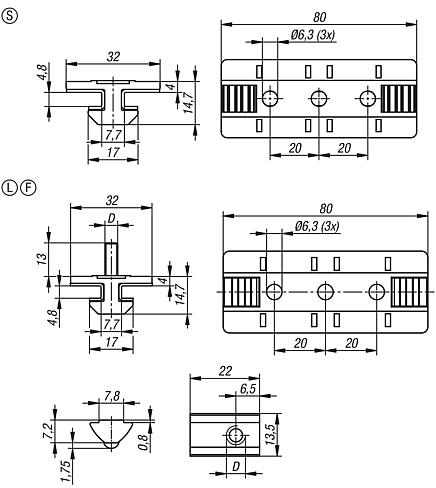

Drawings (total overview) |
Order No.
| Form | Form definition | CAD | Acc. | Price | Order |
|---|
| 10449-1000 | S | standard |  | | on request | |
|
| Order No. | Form | Form definition | D
| CAD | Acc. | Price | Order |
|---|
| 10449-2050 | L | floating bearing | M5 | | | on request | |
|
| Order No. | Form | Form definition | D
| CAD | Acc. | Price | Order |
|---|
| 10449-3060 | F | fixed bearing | M6 | | | on request | |
|
