        Linear modules pneumatic with two round guides

Item description/product images

DescriptionMaterial:Body and flange plate EN AW-5754.
Guide shafts steelVersion:Body, hard-coated
Flange plates, anodised.
Guide shaft, hardened.Note:Maintenance-free pneumatic linear modules with two precision steel shafts and ball guide bushing with wipers. Double acting cylinder drive. All fastening threads have threaded inserts. The as accessory available shock absorbers and proximity switches can be integrated (no protruding edges). Positive fit construction for hundred per cent reproducibility. Combinations in all sizes and stroke variants are feasible without adapter plates.
Repeat accuracies of ±0.01 mm are possible.
Specified loads apply by centred carriages.Temperature range:+5 °C up to +80 °COn request:Available with locking cartridge as stroke deviation safeguard.Accessory:See table for shock absorber, proximitiy switch and plug connector.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 20000 Pneumatic linear modules with two round guides

408 kB

Technical information for pneumatic linear modules with round guides

1,7 MB

Drawings

Overview of items (compressed)

Item selection/filter

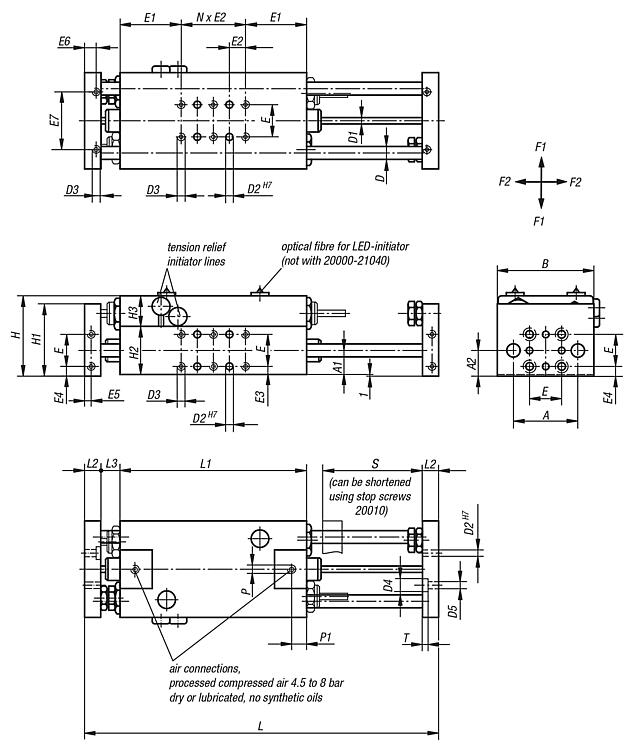

Order No.	Size	A	A1	A2	B	D	D1	D2	D3	D4	D5	E	E1	E2	E3	E4	E5	E6	E7	Travel S	Price
20000-21040	1	40	15	16	60	8	4	4	M4	8	4,5	20	38	10	5	6	4	9	36	40	on request
20000-21060	1	40	15	16	60	8	4	4	M4	8	4,5	20	38	10	5	6	4	9	36	60	on request
20000-21080	1	40	15	16	60	8	4	4	M4	8	4,5	20	38	10	5	6	4	9	36	80	on request
20000-21100	1	40	15	16	60	8	4	4	M4	8	4,5	20	38	10	5	6	4	9	36	100	on request
20000-22060	2	55	20	21	82	12	6	5	M5	10	5,5	30	45	15	5	6	5	11	50	60	on request
20000-22090	2	55	20	21	82	12	6	5	M5	10	5,5	30	45	15	5	6	5	11	50	90	on request
20000-22120	2	55	20	21	82	12	6	5	M5	10	5,5	30	45	15	5	6	5	11	50	120	on request
20000-22150	2	55	20	21	82	12	6	5	M5	10	5,5	30	45	15	5	6	5	11	50	150	on request
20000-23080	3	70	25	26	100	16	8	6	M6	11	6,6	40	50	20	5	6	6	14	70	80	on request
20000-23120	3	70	25	26	100	16	8	6	M6	11	6,6	40	50	20	5	6	6	14	70	120	on request
20000-23160	3	70	25	26	100	16	8	6	M6	11	6,6	40	50	20	5	6	6	14	70	160	on request
20000-23200	3	70	25	26	100	16	8	6	M6	11	6,6	40	50	20	5	6	6	14	70	200	on request
20000-25120	5	104	38	39	150	25	12	10	M10	18	11	60	72	30	8	9	8	17	96	120	on request
20000-25180	5	104	38	39	150	25	12	10	M10	18	11	60	72	30	8	9	8	17	96	180	on request
20000-25240	5	104	38	39	150	25	12	10	M10	18	11	60	72	30	8	9	8	17	96	240	on request
20000-25300	5	104	38	39	150	25	12	10	M10	18	11	60	72	30	8	9	8	17	96	300	on request

Order No.	Size	H	H1	H2	H3	L	L1	L2	L3	N (number)	P	P1	T	F1 max. kN	F2 max. kN	Piston force at 6 bar (N)	Cylinder Ø	Air consumption per cycle at 6 bar (ccm)	Price
20000-21040	1	50	45	30	19	180	96	12	10	2	M5	9,3	3	0,14	0,38	100	16	11,3	on request
20000-21060	1	50	45	30	19	220	116	12	10	4	M5	9,3	3	0,09	0,26	100	16	17	on request
20000-21080	1	50	45	30	19	260	136	12	10	6	M5	9,3	3	0,05	0,18	100	16	22,6	on request
20000-21100	1	50	45	30	19	300	156	12	10	8	M5	9,3	3	0,025	0,125	100	16	28,3	on request
20000-22060	2	64	60	40	23	254	120	16	21	2	G1/8	9,9	5,7	0,3	0,61	250	25	56	on request
20000-22090	2	64	60	40	23	314	150	16	21	4	G1/8	9,9	5,7	0,16	0,35	250	25	84	on request
20000-22120	2	64	60	40	23	374	180	16	21	6	G1/8	9,9	5,7	0,08	0,24	250	25	112	on request
20000-22150	2	64	60	40	23	434	210	16	21	8	G1/8	9,9	5,7	0,045	0,16	250	25	140	on request
20000-23080	3	77	70	50	26	300	140	20	20	2	G1/8	9,5	5	0,46	0,84	407	32	118	on request
20000-23120	3	77	70	50	26	380	180	20	20	4	G1/8	9,5	5	0,24	0,52	407	32	178	on request
20000-23160	3	77	70	50	26	460	220	20	20	6	G1/8	9,5	5	0,12	0,32	407	32	236	on request
20000-23200	3	77	70	50	26	540	260	20	20	8	G1/8	9,5	5	0,07	0,2	407	32	295	on request
20000-25120	5	112	100	76	35	420	204	25	23	2	G1/4	14	7	0,75	1,08	660	40	354,6	on request
20000-25180	5	112	100	76	35	540	264	25	23	4	G1/4	14	7	0,42	0,7	660	40	531,8	on request
20000-25240	5	112	100	76	35	660	324	25	23	6	G1/4	14	7	0,25	0,48	660	40	709,1	on request
20000-25300	5	112	100	76	35	780	384	25	23	8	G1/4	14	7	0,16	0,36	660	40	886,4	on request
