DescriptionMaterial:Stainless steel 1.4301. Note:The centring rings are used to precisely join modules, or to mount the modules indirectly using adapter plates.
The internal thread is used to pull the centring rings out.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

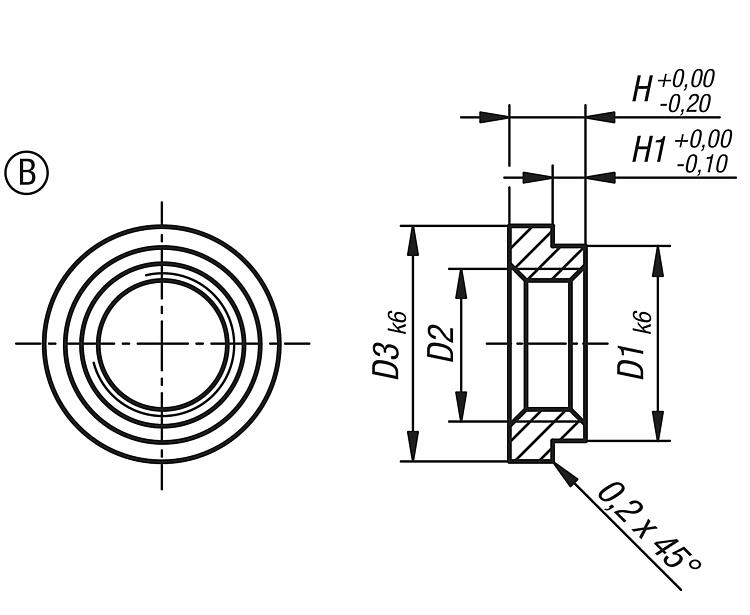

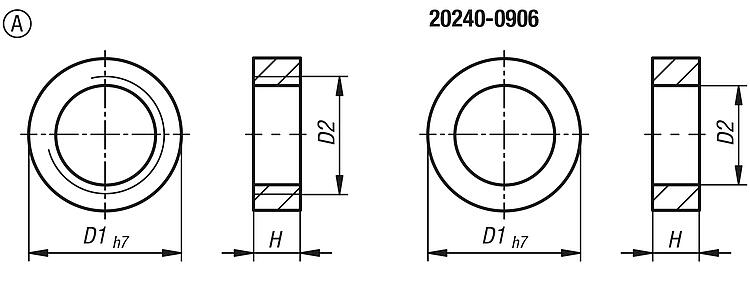

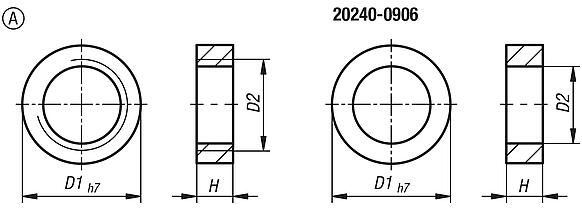

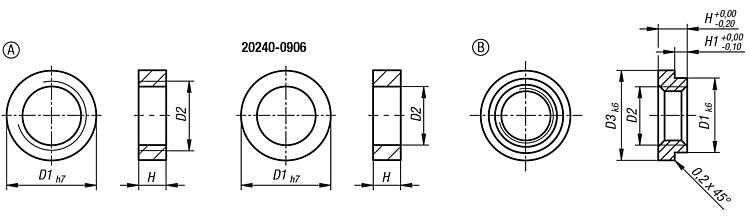

Drawings (total overview) |
|
| | | | | | | | | | | Reset |
|---|
| Order No. | Form | D1
| D2 | D3 | H | H1 | CAD | Acc. | Price | Order |
|---|
| 20240-070905 | B | 7 | M5 | 9 | 3,5 | 1,5 |  | | on request | | | 20240-091206 | B | 9 | M6 | 12 | 4 | 2 | | | on request | |
|
