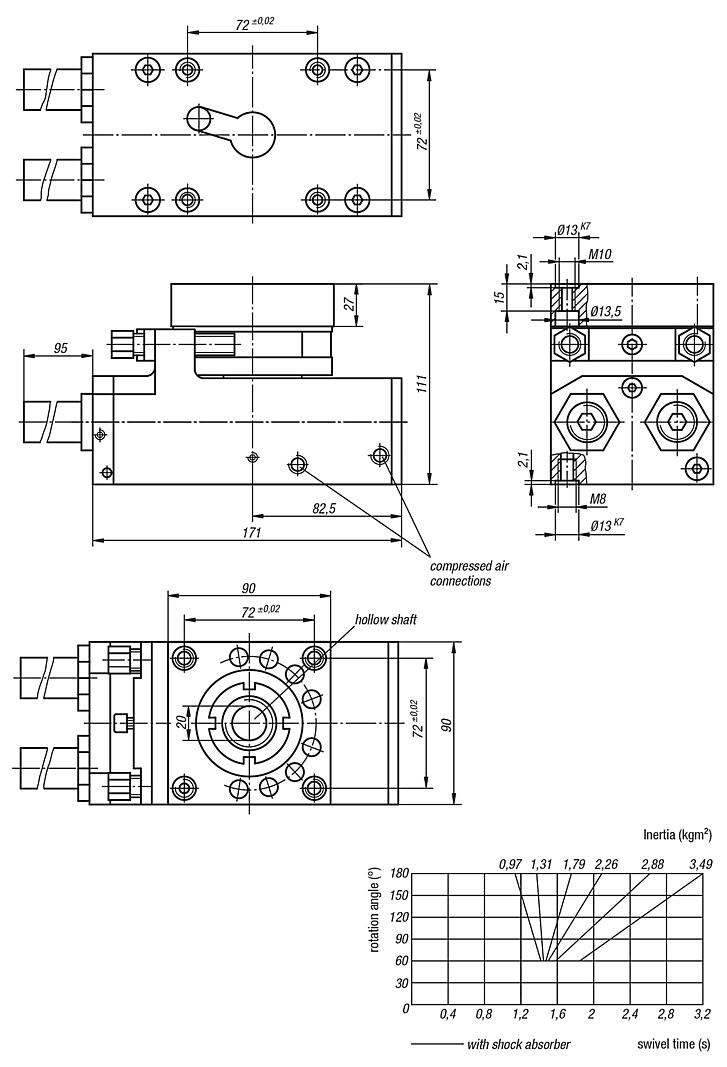

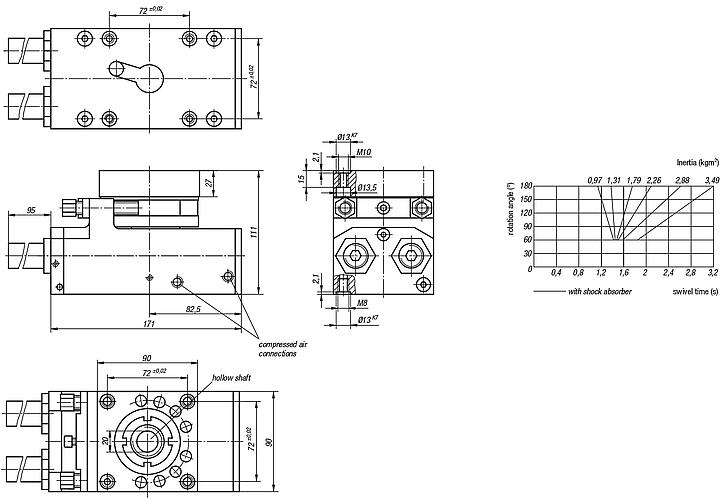

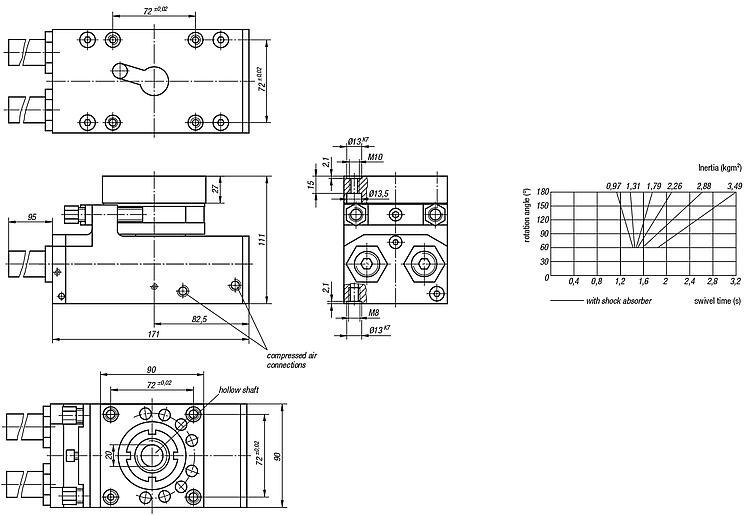

20064Rotary module pneumatic |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Housing high-strength aluminium.
Stop system steel.Version:Housing anodised.
Stop system hardened and black oxidised.Note:Maintenance-free pneumatic rotary module with double actuated drive cylinder. Control by 4/2 or 5/2 directional valve. Pneumatic drive, 4-8 bar, constant, filtered (10 µm), dried, oiled or unoiled. Compressed air connection R1/8.
Modules of the same size can be combined with one another without adapter plates via the precise centring system by means of centring rings 20240.
The 0° – 190° rotation angle is infinitely adjustable.
Repeat accuracy ±0.01°.
Shock absorbers are supplied.Accessory:See table for proximity switches and plug connectors.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
