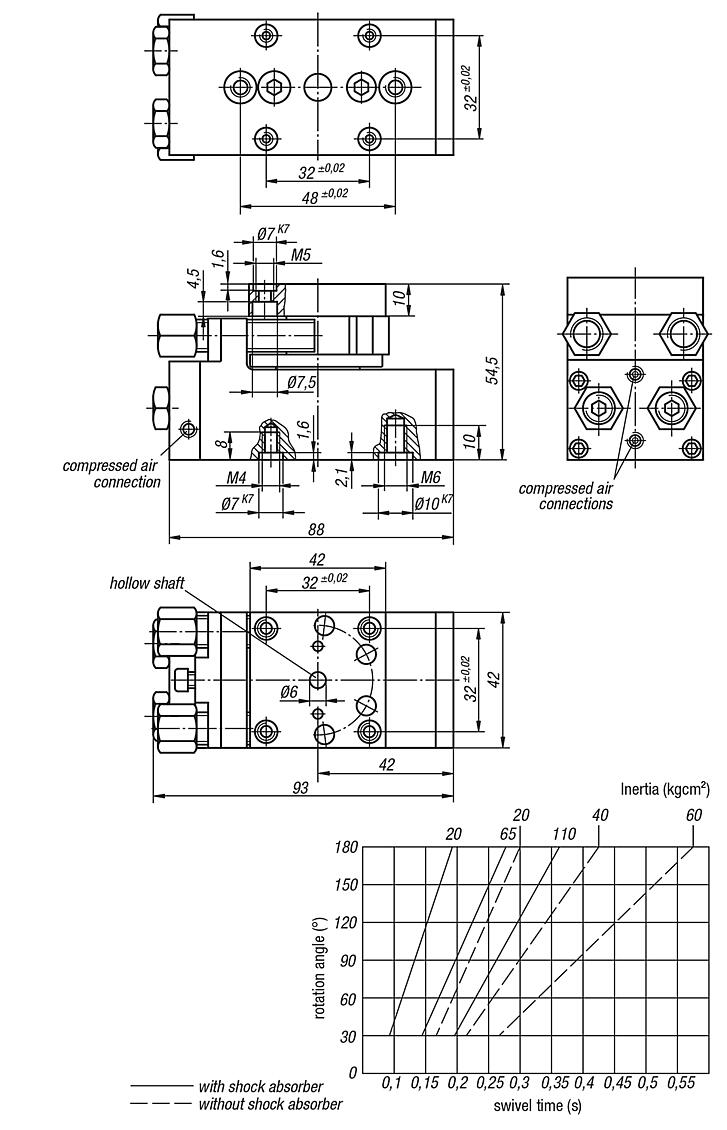

20060Rotary module pneumatic |
go back |
|

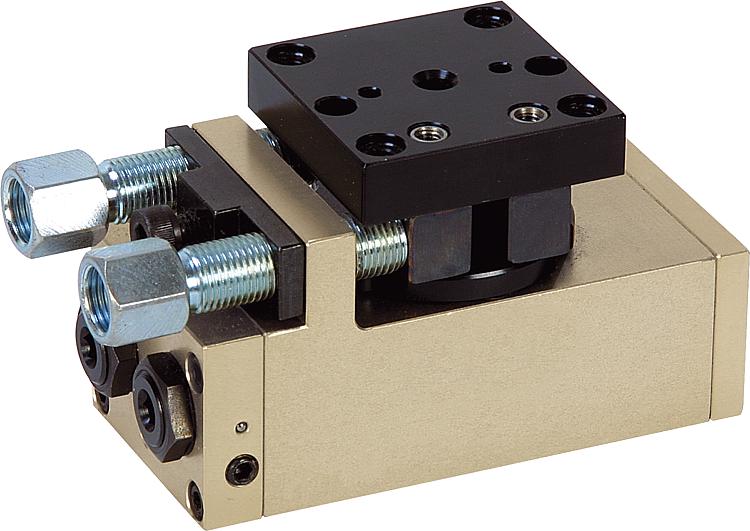

Item description/product images |
|
|
DescriptionMaterial:Housing high-strength aluminium.
Stop system steel.Version:Housing anodised.
Stop system hardened and black oxidised.Note:Maintenance-free pneumatic rotary module with double actuated drive cylinder. Control by 4/2 or 5/2 directional valve. Pneumatic drive, 4-8 bar, constant, filtered (10 µm), dried, oiled or unoiled. Compressed air connection M5.
Modules of the same size can be combined with one another without adapter plates via the precise centring system by means of centring rings 20240.
The 0° – 190° rotation angle is infinitely adjustable.

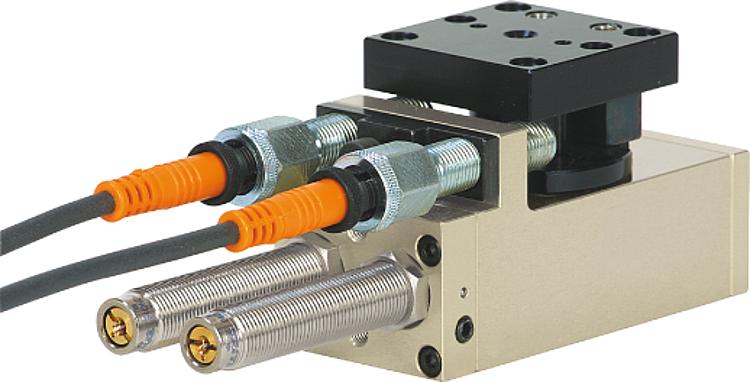

Repeat accuracy ±0.01°.Accessory:See table for shock absorber, proximitiy switch and plug connector.Special features: DownloadHere is all the information as a PDF datasheet:

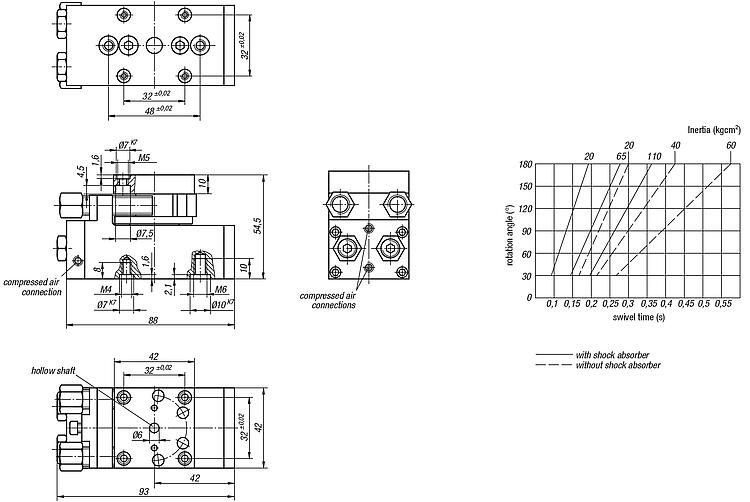

Are you looking for CAD data? These can be found directly in the product table.
|
