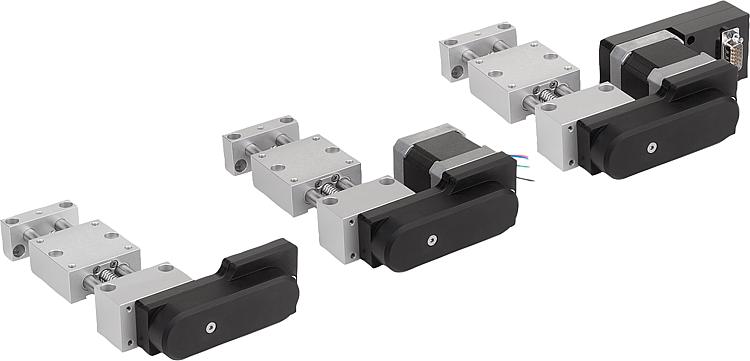

Positioning stages long with lateral electric drive
Item description/product images

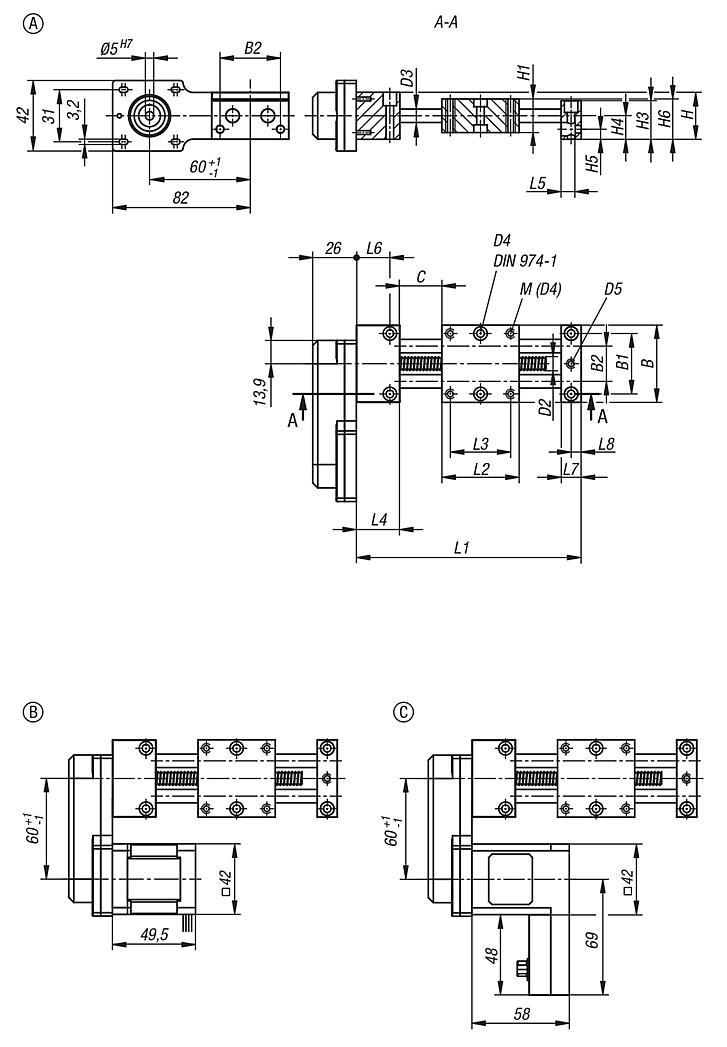

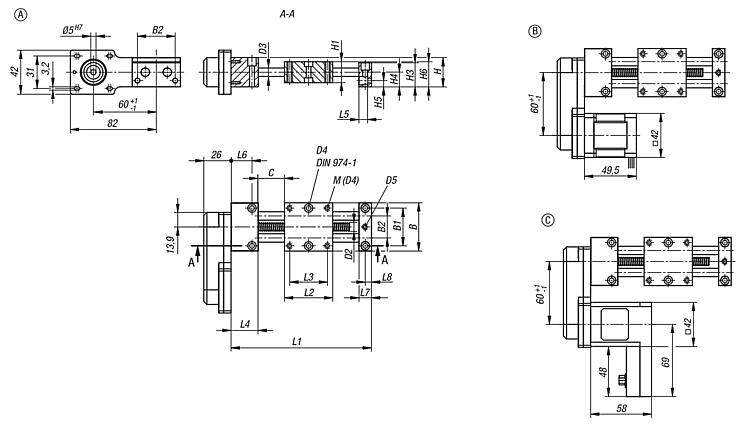

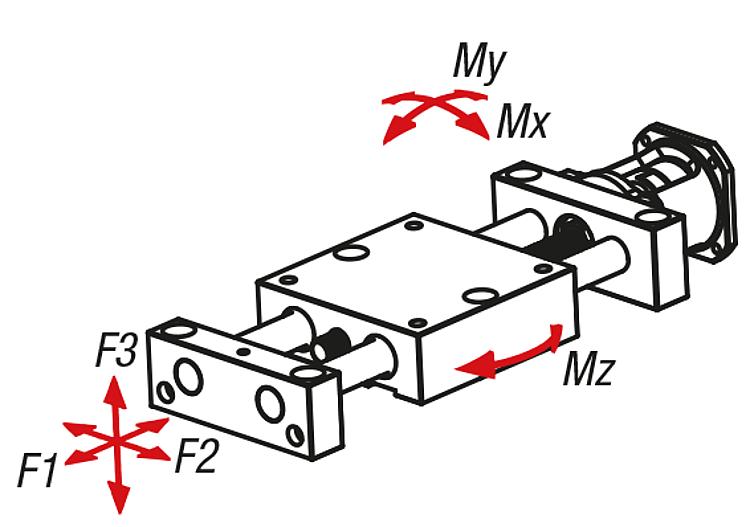

DescriptionMaterial:Bearing block and carriage aluminium alloy. Guide column and threaded spindle stainless steel. Plain bearing for guide columns and spindle nut high-quality special plastic. Toothed belts neoprene, profile 3M.Version:Aluminium alloy anodised. Stainless steel hardened and ground. Threaded spindle with ball bearing.Note for ordering:The unit is supplied with the position of the drive unit, cable outlet or control unit as shown in the drawing.Note:Positioning stages for motorised adjustment and positioning tasks. The plain bearings and spindle nuts are suitable for dry running, however lubrication with a grease for plastic plain bearings is recommended. The suitable programming software and interface cable for the stepper motor with positioning control are available as accessories (25000-15). The stepper motor with a resolution of 200 increments per rotation allows a single direction calculated positioning accuracy of 0.005 mm. The absolute single direction positioning accuracy is 0.01 mm. The system can be operated with a duty cycle of 100%.
Can be combined with all other parts of the same size.Technical data:Threaded spindle pitch: 2 mm Axial backlash of threaded spindle: <0.04 mm Radial play of guides: <0.02 mm Max. input speed: 600 rpm Max. travel speed: 20 mm/s Max. duty cycle: 100 % Application temperature: +10 °C to +50 °C
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
