        Rotary discs

Item description/product images

DescriptionMaterial:Body and rotary disc Al alloy.
Shaft stainless steel.Version:Body and rotary disc anodised.Note:Loosen the clamping lever to revolve the rotary disc on the body. Rotates through 360°. The rotary disc indexes every 90° (21150-25 every 45°). Indexing is carried out by a ball plunger which can be easily removed.
Angular adjustment is set by a scale accurate to within 2°.

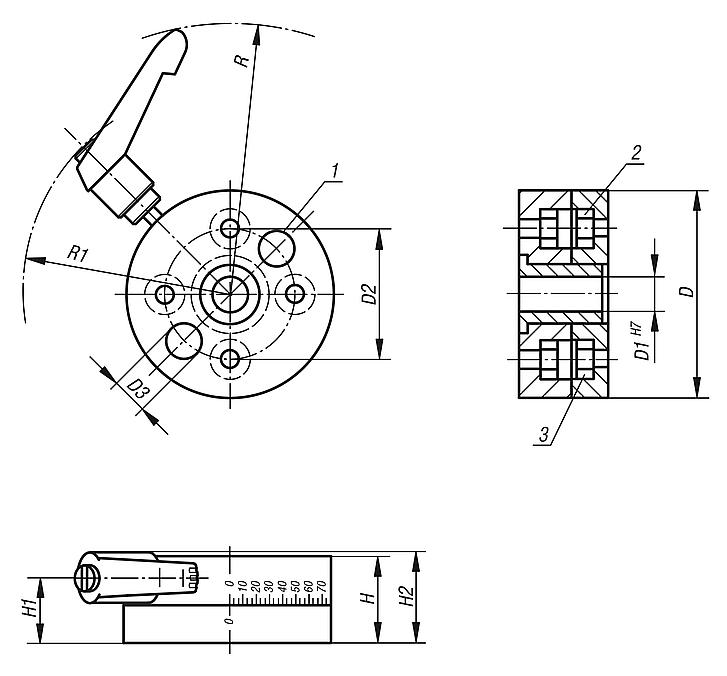

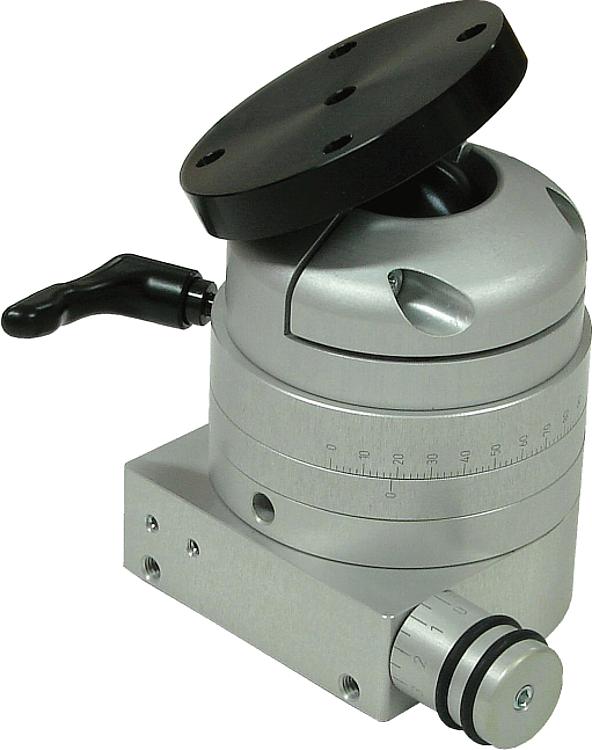

The rotary disc can be easily combined with other modules of the same size. Drawing reference:

1) Assembly hole for pressing out the nut
2) DIN 934 nut (x8) can be pressed out M (D4)
3) DIN 974-1 countersink (D4)

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 21150 Rotary discs

297 kB

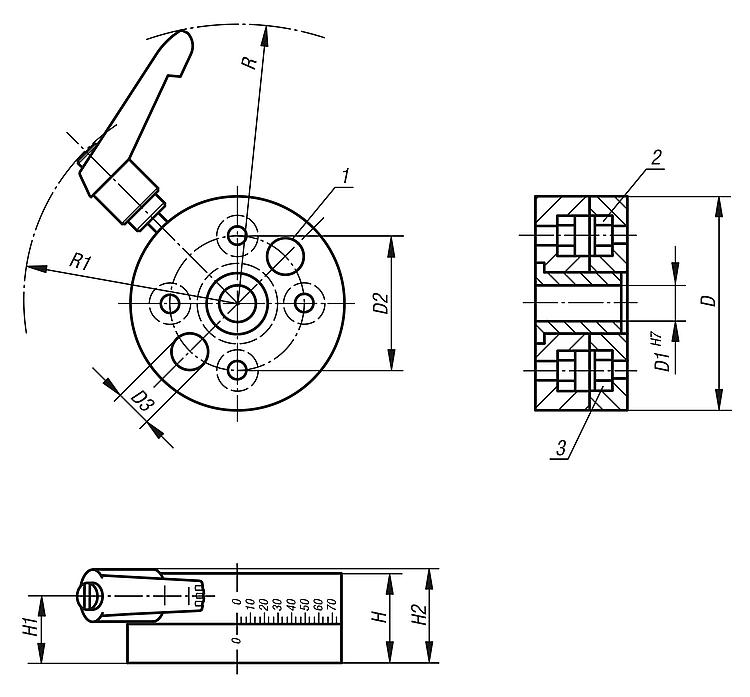

Drawings

Item selection/filter

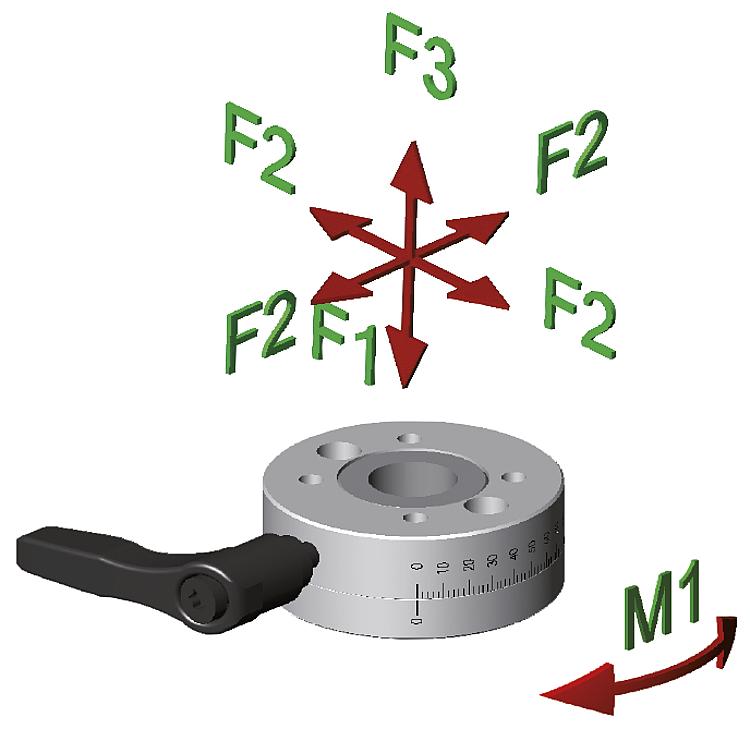

Order No.	D	D1	D2	D3	D4	H	H1	H2	R	R1	F1 N	F2 N	F3 N	M1 Nm	Price
21150-04	35	6	22	6	3	15	9,5	16,5	64	44	50	30	50	2	on request
21150-08	54	16	36	8	4	20	13,5	20,5	73	56	100	70	100	10	on request
21150-12	80	25	60	13	6	25	17,5	24,5	85	69	150	100	150	15	on request
21150-25	150	55	130	18,5	10	40	26	35,5	139	110	300	200	300	50	on request
