        Swivel angles

Item description/product images

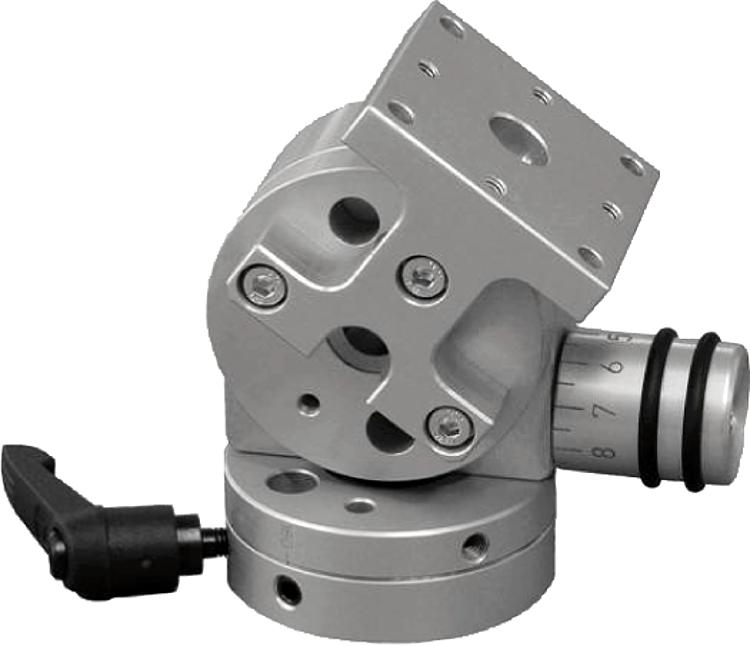

DescriptionMaterial:Aluminium alloy.Version:Milled and anodisedNote:The swivel angle is mounted on a rotary positioning table and offers further mounting possibilities.

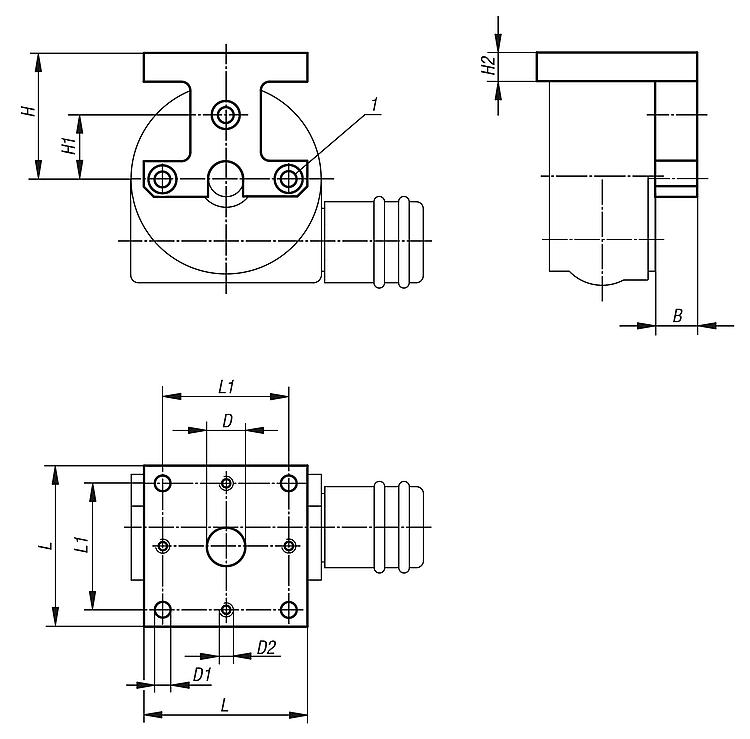

Suitable for 21160 in matching sizes.Drawing reference:

1) D3 for socket head screw ISO 4762

Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 21162 Swivel angles

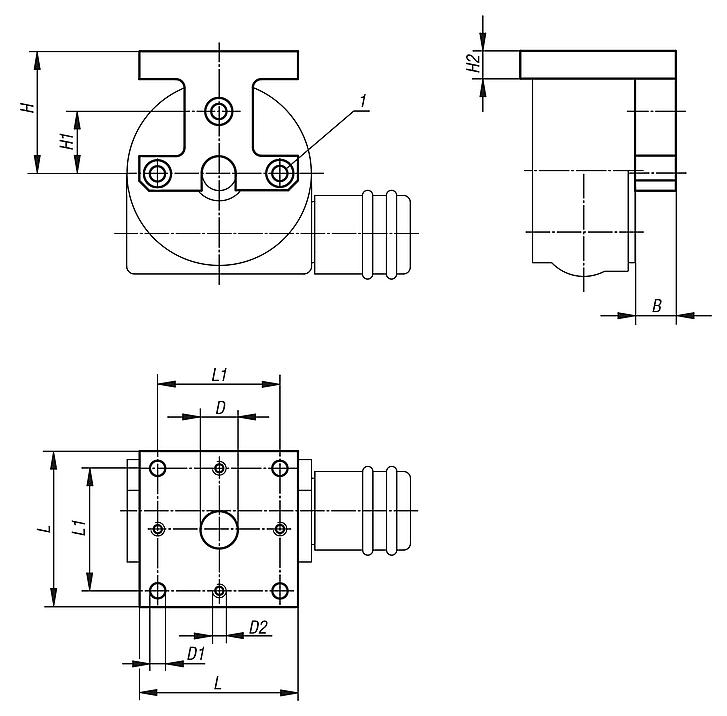

Drawings

Swivel angles

Item selection/filter

Order No.	B	D	D1	D2	D3	H	H1	H2	L	L1	CAD	Acc.	Price	Order
21162-04	7	6	3,3	M3	M3	22	11	6	29	22			on request
21162-08	12	11	4,5	M4	M4	36	18	8	46	36			on request
21162-12	20	16	6,5	M6	M6	51	30	10	75	60			on request
21162-25	25	40	11	M10	M10	98	65	20	150	130			on request
