Base plates
 21180

Base plates

 go back

Item description/product images
DescriptionMaterial:Aluminium alloy.Version:anodised.Note:Suitable for 21100, 21102, 21120, 21122, 21150, 21160, 21162 and 21190 in the respective size.Drawing reference:
All counterbores to DIN 974-1 (D),
all threads M (D).
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 21180 Base plates 151 kB

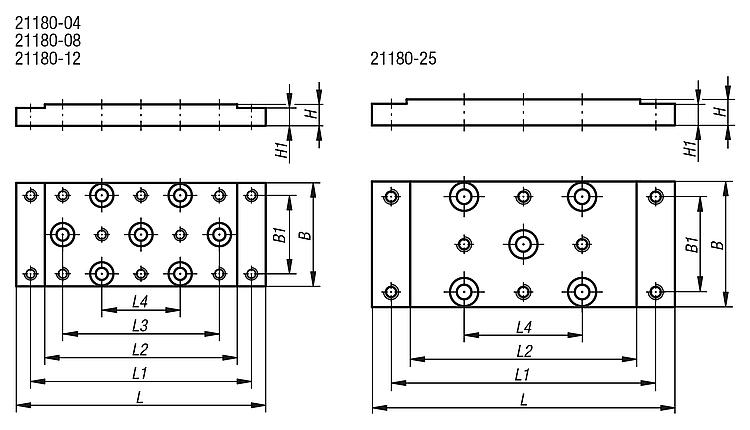

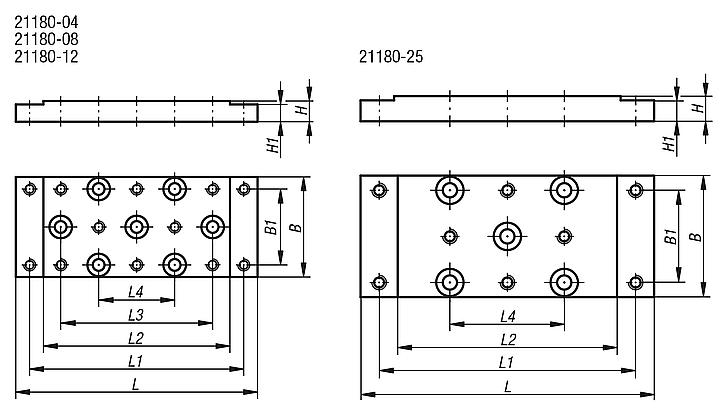

Drawings

Base plates

Item selection/filter


  •
  • 29
  • 46
  • 75
  • 150

  •
  • 22
  • 36
  • 60
  • 130

  •
  • 3
  • 4
  • 6
  • 10

  •
  • 6
  • 8
  • 12
  • 20

  •
  • 5
  • 6
  • 10
  • 18

  •
  • 70
  • 120
  • 180
  • 290

  •
  • 62
  • 108
  • 165
  • 265

  •
  • 54
  • 96
  • 150
  • 240

  •
  • 44
  • 72
  • 120
  • -

  •
  • 22
  • 36
  • 60
  • 130

Reset
Order No.BB1D

HH1LL1L2L3L4CADAcc.PriceOrder
21180-0429223657062544422  on request
21180-084636486120108967236  on request
21180-1275606121018016515012060  on request
21180-25150130102018290265240-130  on request
