Item description/product images |
|
|

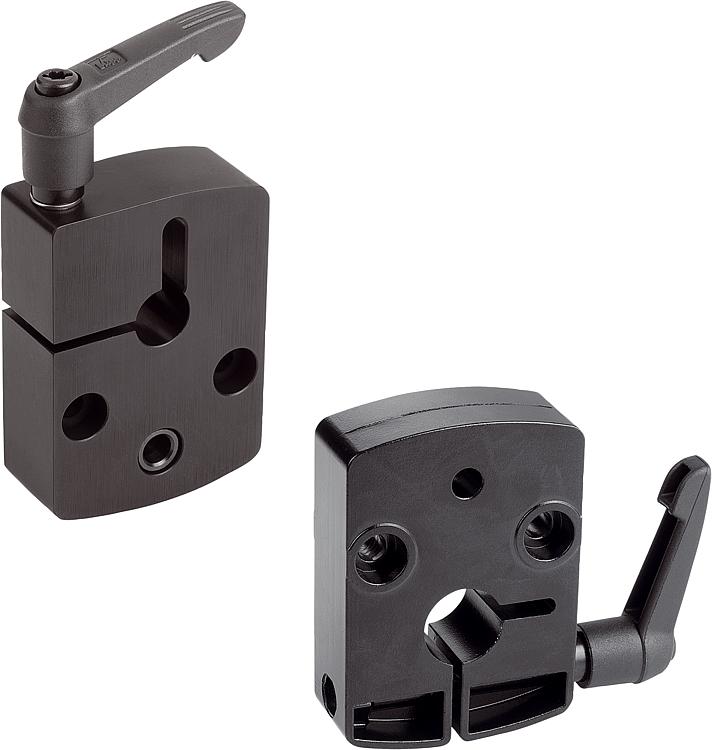

DescriptionProduct description:Mounting brackets form a compact unit with position indicators. They guarantee reliable spindle clamping without additional construction work.Material:Mounting position 1, housing die-cast zinc
Mounting position 3, housing aluminium.
Clamping lever plastic.Version:Installed position 1, housing, painted.
Installed position 3, housing anodised.
Clamping lever dark grey.
Note:Due to the simple assembly, the mounting bracket is also suitable for retrofitting to existing systems. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

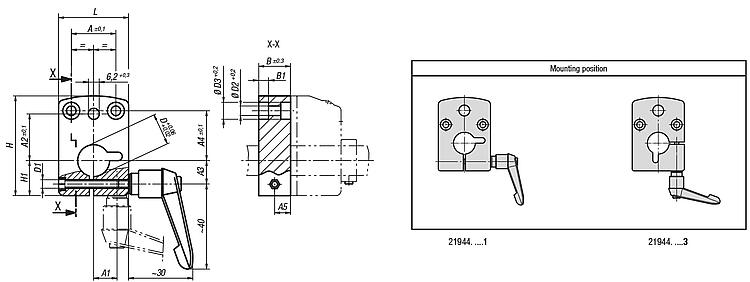

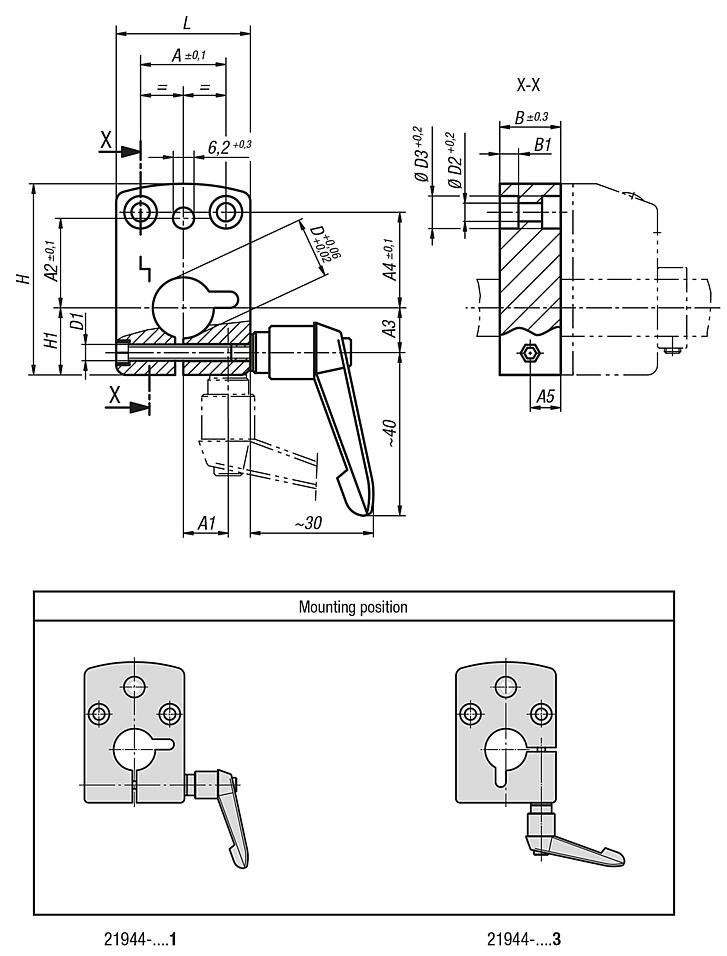

Order No.
Assembly
position 1 | Order No.
Assembly
position 3 | A | A1 | A2 | A3 | A4 | A5 | B | B1 | D | D1
| D2 | D3 | H | H1 | L | Suitable
for position
indicator | Filter |
|---|
| 21944-04081 | 21944-04083 | 21 | -/11 | 22 | 11/- | 23,5 | 7,5 | 15 | 4,6 | 8 | M4 | 4,5 | 8 | 47 | 16,5 | 33 | - |  | | 21944-04101 | 21944-04103 | 21 | -/11 | 22 | 11/- | 23,5 | 7,5 | 15 | 4,6 | 10 | M4 | 4,5 | 8 | 47 | 16,5 | 33 | - | | | 21944-04121 | 21944-04123 | 21 | -/11 | 22 | 11/- | 23,5 | 7,5 | 15 | 4,6 | 12 | M4 | 4,5 | 8 | 47 | 16,5 | 33 | - | | | 21944-04141 | 21944-04143 | 21 | -/11 | 22 | 11/- | 23,5 | 7,5 | 15 | 4,6 | 14 | M4 | 4,5 | 8 | 47 | 16,5 | 33 | - | | | 21944-09121 | 21944-09123 | 34 | -/17 | 30 | 17/- | 17 | 10 | 20 | 5,5 | 12 | M5 | 5,5 | 10 | 67,5 | 25,5 | 48 | - | | | 21944-09141 | 21944-09143 | 34 | -/17 | 30 | 17/- | 17 | 10 | 20 | 5,5 | 14 | M5 | 5,5 | 10 | 67,5 | 25,5 | 48 | - | | | 21944-09161 | 21944-09163 | 34 | -/17 | 30 | 17/- | 17 | 10 | 20 | 5,5 | 16 | M5 | 5,5 | 10 | 67,5 | 25,5 | 48 | - | | | 21944-09201 | 21944-09203 | 34 | -/17 | 30 | 17/- | 17 | 10 | 20 | 5,5 | 20 | M5 | 5,5 | 10 | 67,5 | 25,5 | 48 | - | |
