22201Connecting links duplex DIN ISO 606 |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel.Note:Connecting links for DIN ISO 606 duplex roller chains.

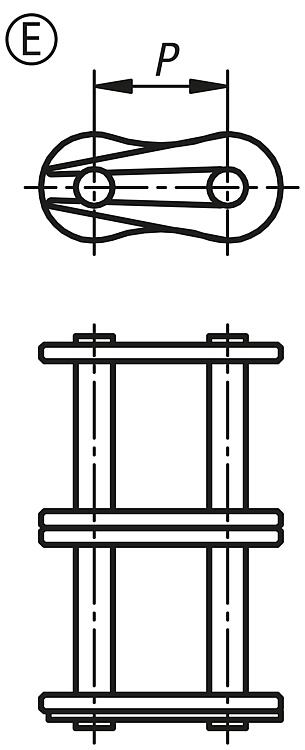

By Form E, the spring clip must be mounted with the closed end facing the direction of movement.
Offset links are required to close the chain if there is an odd number of links. Using offset links reduces the power and tensile strength by 20%.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

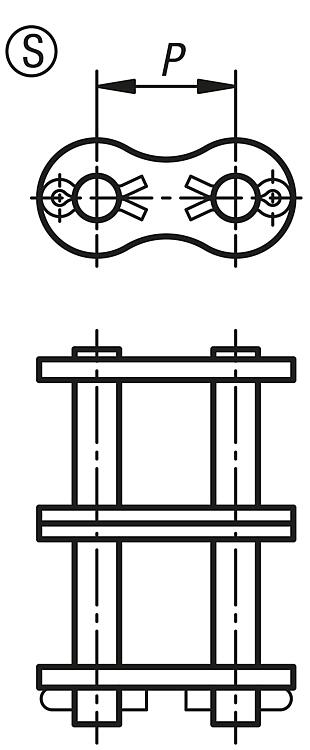

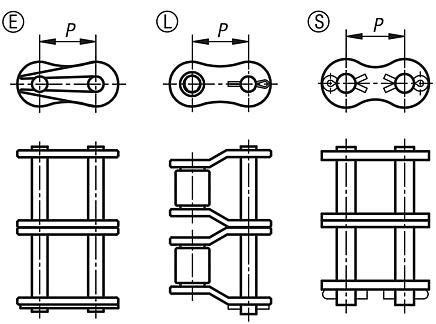

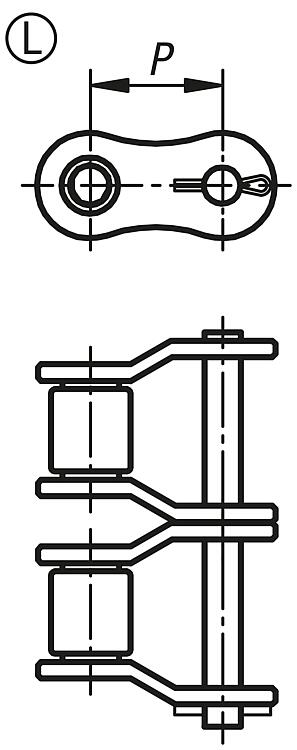

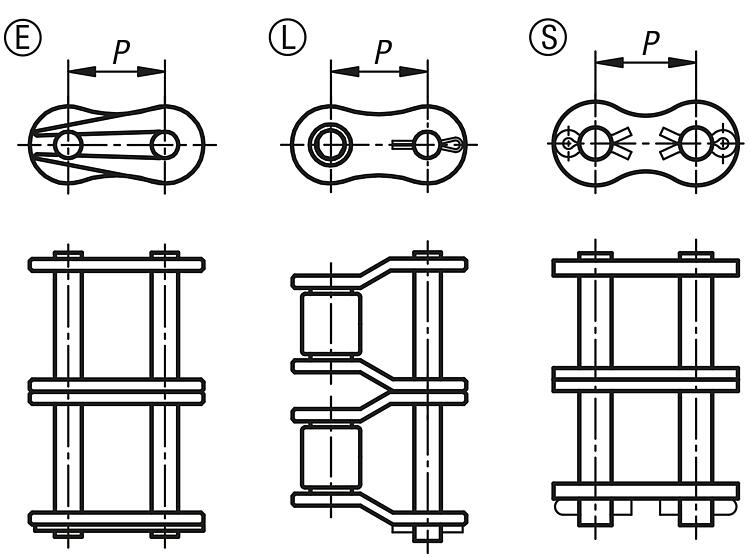

Drawings (total overview) |
|
Order No.
| ISO No. | P | Suitable for
chains | CAD | Acc. | Price | Order |
|---|
| 22201-40800030 | 05 B-2 | 8 | 8,0 x 3,0mm |  | | on request | | | 22201-40380732 | 06 B-2 | 9,525 | 3/8 x 7/32 | | | on request | | | 22201-40120516 | 08 B-2 | 12,7 | 1/2 x 5/16 | | | on request | | | 22201-40580308 | 10 B-2 | 15,875 | 5/8 x 3/8 | | | on request | | | 22201-40340716 | 12 B-2 | 19,05 | 3/4 x 7/16 | | | on request | | | 22201-41001702 | 16 B-2 | 25,4 | 1 x 17,02 mm | | | on request | | | 22201-41140340 | 20 B-2 | 31,75 | 1 1/4 x 3/4 | | | on request | | | 22201-41121000 | 24 B-2 | 38,1 | 1 1/2 x 1 | | | on request | |
|
Order No.
| ISO No. | P | Suitable for
chains | CAD | Acc. | Price | Order |
|---|
| 22201-51140340 | 20 B-2 | 31,75 | 1 1/4 x 3/4 | | | on request | | | 22201-51121000 | 24 B-2 | 38,1 | 1 1/2 x 1 | | | on request | |
|
