Links DIN ISO 606
 22208

Links DIN ISO 606

 go back

Item description/product images

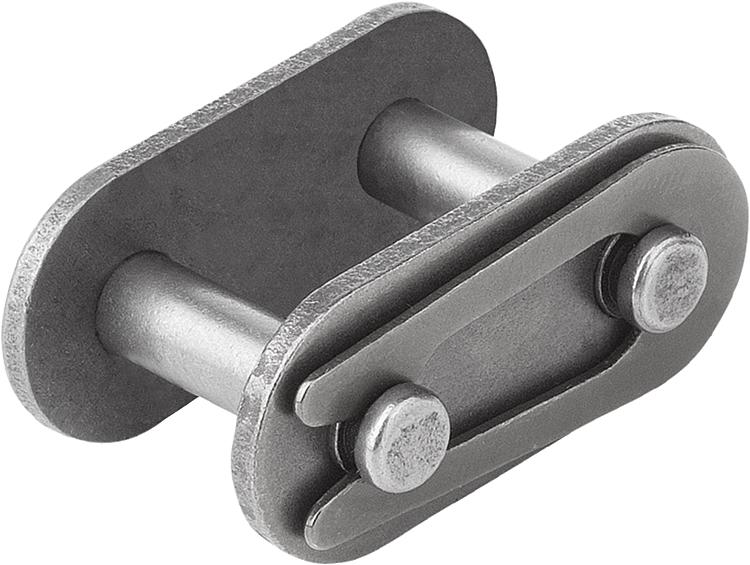

DescriptionMaterial:Steel.Note:Links for single roller chains acc. to DIN ISO 606.

The spring clips must be mounted with the closed end pointing in the direction of travel.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 22208 Links DIN ISO 606 172 kB
Technical information for roller chains 188 kB

Drawings

Links DIN ISO 606

Overview of items (compressed)

 Item selection/filter
Order No.

ISO No.PSuitable for
chains		CADAcc.PriceOrder
22208-3012051608 B-112,71/2 x 5/16 on request
22208-3058030810 B-115,8755/8 x 3/8 on request
22208-3034071612 B-119,053/4 x 7/16 on request
22208-3100170216 B-125,41 x 17,02 mm on request
