        Toothed belt pulleys profile HTD 3M

Item description/product images

Show/filter all items

DescriptionMaterial:Aluminium.Version:Bright.Note:Standard HTD profile with metric graduation (semicircular toothing). At least one toothed belt pulley must have a rim flange. The toothed belt pulleys have a centre bore. This centre bore can be customised with a reamed hole, reamed hole with keyway or a tapped hole by the customer.
To reduce weight, the toothed belt pulleys may have a recess on one face.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 22004 Toothed belt pulleys profile HTD 3M

216 kB

Technical information for toothed belts 22062

725 kB

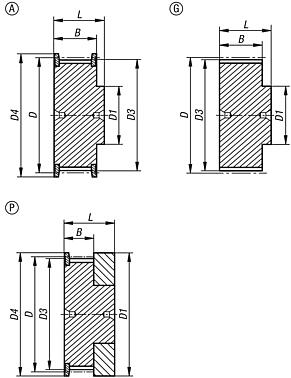

Drawings (total overview)

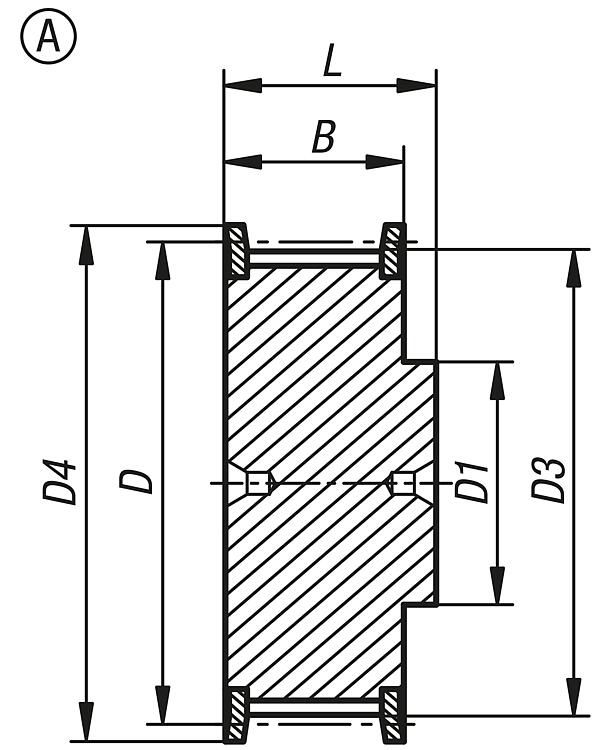

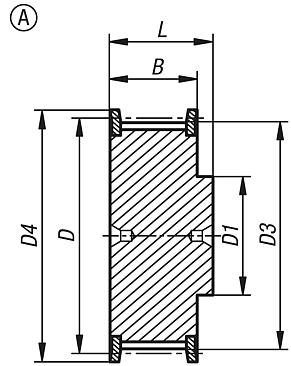

Toothed pulley profile HTD 3M, Form A

More information

Drawings

Item selection/filter

	A	HTD3M	12,8 13,4 19,5 20	15,28 17,19 19,1 20,05 21,01 22,92 24,83 26,74 28,65 30,56 34,38 38,2 42,02	10 11 13 14 16 18 20 22 26 28 33	14,52 16,43 18,34 19,29 20,25 22,16 24,07 25,98 27,89 29,8 33,62 37,44 41,26	17,5 20 23 25 28 32 36 39 42 48	20,6 22,2 26 30	9 15	16 18 20 21 22 24 26 28 30 32 36 40 44				Reset
Order No.	Form	Profile	B	D	D1 max.	D3	D4 max.	L	belt width	No. of teeth	CAD	Acc.	Price	Order
22004-030916	A	HTD3M	12,8	15,28	10	14,52	17,5	20,6	9	16			on request
22004-030918	A	HTD3M	12,8	17,19	11	16,43	20	20,6	9	18			on request
22004-030920	A	HTD3M	12,8	19,1	13	18,34	23	20,6	9	20			on request
22004-030921	A	HTD3M	12,8	20,05	13	19,29	25	20,6	9	21			on request
22004-030922	A	HTD3M	12,8	21,01	13	20,25	25	20,6	9	22			on request
22004-030924	A	HTD3M	12,8	22,92	14	22,16	25	20,6	9	24			on request
22004-030926	A	HTD3M	12,8	24,83	16	24,07	28	20,6	9	26			on request
22004-030928	A	HTD3M	12,8	26,74	18	25,98	32	20,6	9	28			on request
22004-030930	A	HTD3M	12,8	28,65	20	27,89	32	20,6	9	30			on request
22004-030932	A	HTD3M	12,8	30,56	22	29,8	36	20,6	9	32			on request
22004-030936	A	HTD3M	13,4	34,38	26	33,62	39	22,2	9	36			on request
22004-030940	A	HTD3M	13,4	38,2	28	37,44	42	22,2	9	40			on request
22004-030944	A	HTD3M	13,4	42,02	33	41,26	48	22,2	9	44			on request
22004-031516	A	HTD3M	19,5	15,28	10	14,52	17,5	26	15	16			on request
22004-031518	A	HTD3M	19,5	17,19	11	16,43	20	26	15	18			on request
22004-031520	A	HTD3M	19,5	19,1	13	18,34	23	26	15	20			on request
22004-031521	A	HTD3M	19,5	20,05	13	19,29	25	26	15	21			on request
22004-031522	A	HTD3M	19,5	21,01	13	20,25	25	26	15	22			on request
22004-031524	A	HTD3M	19,5	22,92	14	22,16	25	26	15	24			on request
22004-031526	A	HTD3M	19,5	24,83	16	24,07	28	26	15	26			on request
22004-031528	A	HTD3M	19,5	26,74	18	25,98	32	26	15	28			on request
22004-031530	A	HTD3M	19,5	28,65	20	27,89	32	26	15	30			on request
22004-031532	A	HTD3M	19,5	30,56	22	29,8	36	26	15	32			on request
22004-031536	A	HTD3M	20	34,38	26	33,62	39	30	15	36			on request
22004-031540	A	HTD3M	20	38,2	28	37,44	42	30	15	40			on request
22004-031544	A	HTD3M	20	42,02	33	41,26	48	30	15	44			on request

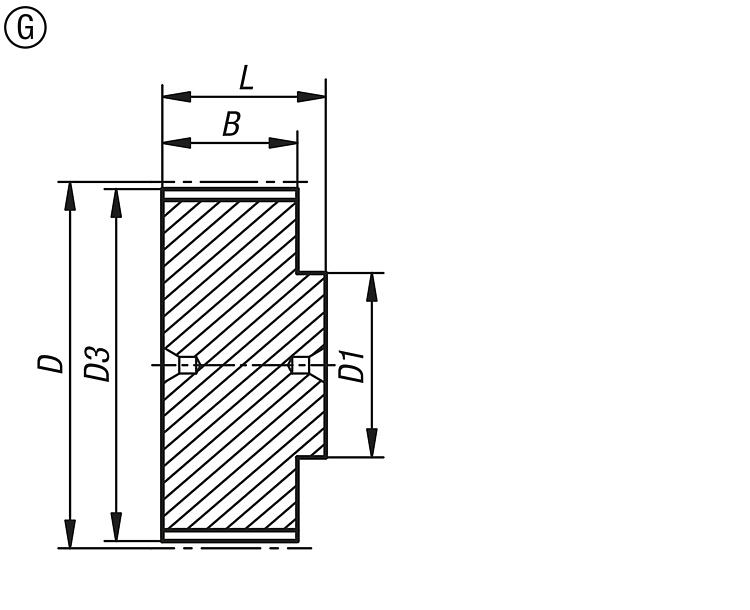

Toothed pulley profile HTD 3M, Form G

More information

Drawings

Item selection/filter

	G	HTD3M	13,4 20	45,84 57,3 68,75	33	45,08 56,54 67,99	22,2 30	9 15	48 60 72				Reset
Order No.	Form	Profile	B	D	D1 max.	D3	L	belt width	No. of teeth	CAD	Acc.	Price	Order
22004-030948	G	HTD3M	13,4	45,84	33	45,08	22,2	9	48			on request
22004-030960	G	HTD3M	13,4	57,3	33	56,54	22,2	9	60			on request
22004-030972	G	HTD3M	13,4	68,75	33	67,99	22,2	9	72			on request
22004-031548	G	HTD3M	20	45,84	33	45,08	30	15	48			on request
22004-031560	G	HTD3M	20	57,3	33	56,54	30	15	60			on request
22004-031572	G	HTD3M	20	68,75	33	67,99	30	15	72			on request

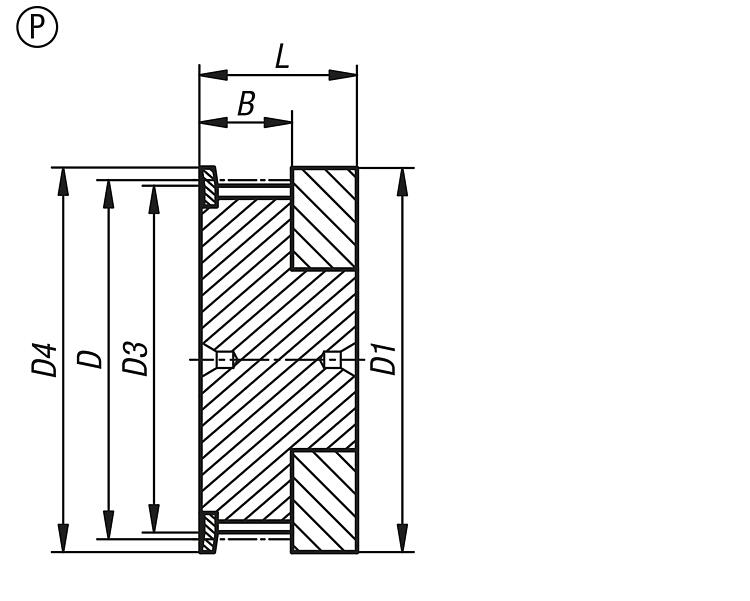

Toothed pulley profile HTD 3M, Form P

More information

Drawings

Item selection/filter

	P	HTD3M	10,2 17	9,55 11,46 13,37 14,32	13 15 18	8,79 10,7 12,61 13,56	13 15 16 17,5	17,5 26	9 15	10 12 14 15				Reset
Order No.	Form	Profile	B	D	D1 max.	D3	D4 max.	L	belt width	No. of teeth	CAD	Acc.	Price	Order
22004-030910	P	HTD3M	10,2	9,55	13	8,79	13	17,5	9	10			on request
22004-030912	P	HTD3M	10,2	11,46	15	10,7	15	17,5	9	12			on request
22004-030914	P	HTD3M	10,2	13,37	18	12,61	16	17,5	9	14			on request
22004-030915	P	HTD3M	10,2	14,32	18	13,56	17,5	17,5	9	15			on request
22004-031510	P	HTD3M	17	9,55	13	8,79	13	26	15	10			on request
22004-031512	P	HTD3M	17	11,46	15	10,7	15	26	15	12			on request
22004-031514	P	HTD3M	17	13,37	18	12,61	16	26	15	14			on request
22004-031515	P	HTD3M	17	14,32	18	13,56	17,5	26	15	15			on request
