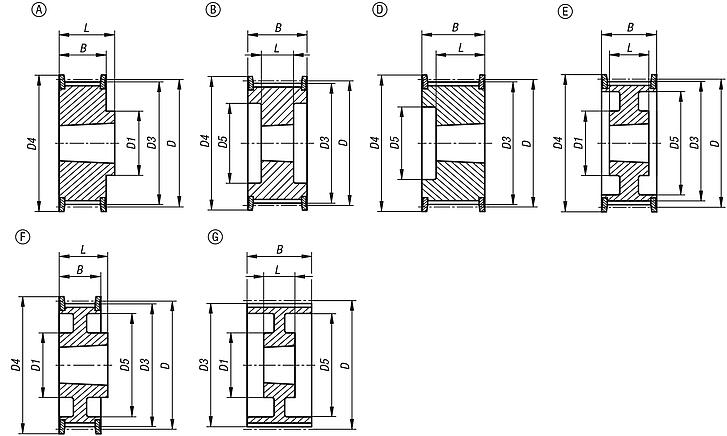

        Toothed pulleys profile HTD 8M, for assembly with taper clamping bushes

Item description/product images

Show/filter all items

DescriptionMaterial:Cast Iron.Version:PhosphatedNote:Standard HTD profile with metric pitch (rounded toothing). At least one toothed belt pulley must have a rim flange. Conical hole for taper clamping bushes. The taper clamping bushes must be ordered separately and are available for various shaft diameters. Pulleys with a taper hole are statically balanced as per ISO 1940 grade G16.Accessory:Taper clamping bushes 23200.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 22005 Toothed pulleys profile HTD 8M, for assembly with taper clamping bushes

297 kB

Technical information for toothed belts 22062

725 kB

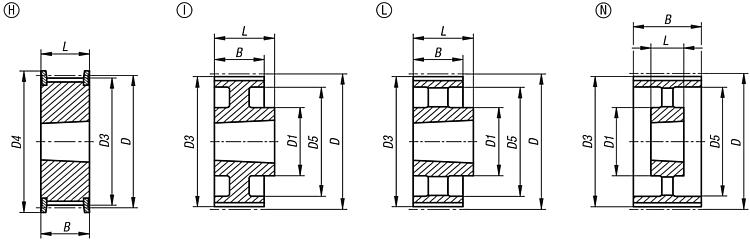

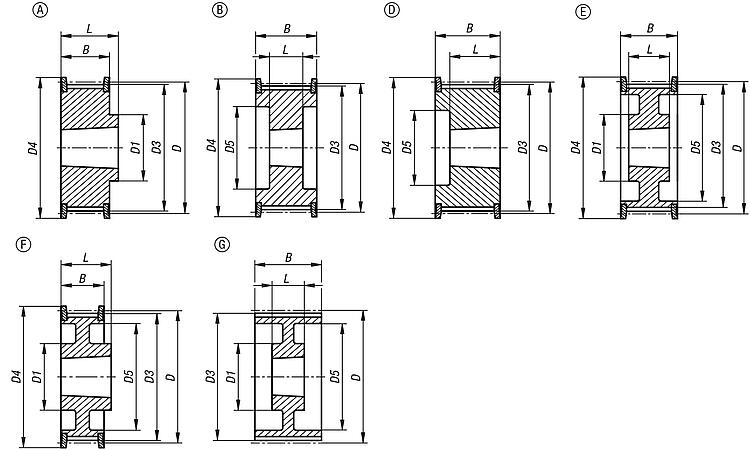

Drawings (total overview)

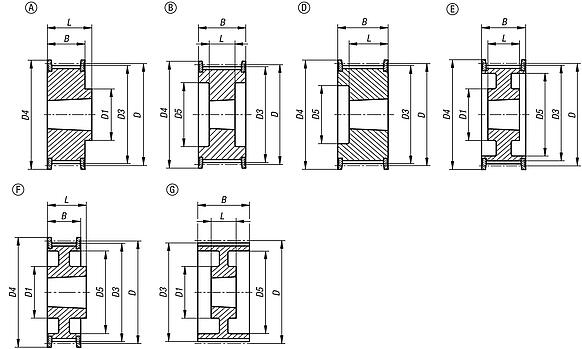

Toothed pulleys profile HTD 8M, for assembly with taper clamping bushes for belt width 20 mm

More information

Drawings

Item selection/filter

Order No.	Form	Main material	Version 2	No. of teeth	D	D1 max.	D3	D4 max.	D5	B	L	Price
22005-0820022	D	grey cast iron	for taper bush 1008	22	56,02	-	54,65	62	38	28	22	on request
22005-0820024	D	grey cast iron	for taper bush 1108	24	61,12	-	59,74	67	42	28	22	on request
22005-0820026	D	grey cast iron	for taper bush 1108	26	66,21	-	64,84	73	45	28	22	on request
22005-0820028	D	grey cast iron	for taper bush 1108	28	71,3	-	69,93	77	52	28	22	on request
22005-0820030	D	grey cast iron	for taper bush 1108	30	76,39	-	75,02	84	56	28	22	on request
22005-0820032	D	grey cast iron	for taper bush 1610	32	81,49	-	80,12	88	65	28	25	on request
22005-0820034	D	grey cast iron	for taper bush 1610	34	86,58	-	85,21	94	66	28	25	on request
22005-0820036	D	grey cast iron	for taper bush 1610	36	91,67	-	90,3	98	68	28	25	on request
22005-0820038	D	grey cast iron	for taper bush 1610	38	96,77	-	95,39	104	76	28	25	on request
22005-0820040	D	grey cast iron	for taper bush 1610	40	101,86	-	100,49	108	80	28	25	on request
22005-0820044	A	grey cast iron	for taper bush 2012	44	112,05	99	110,67	121	-	28	32	on request
22005-0820048	A	grey cast iron	for taper bush 2012	48	122,23	105	120,86	129	-	28	32	on request
22005-0820056	A	grey cast iron	for taper bush 2012	56	142,6	110	141,23	150	-	28	32	on request
22005-0820064	F	grey cast iron	for taper bush 2012	64	162,97	110	161,6	168	140	28	32	on request
22005-0820072	F	grey cast iron	for taper bush 2012	72	183,35	110	181,97	192	158	28	32	on request
22005-0820080	I	grey cast iron	for taper bush 2012	80	203,74	110	202,35	-	178	28	32	on request
22005-0820090	L	grey cast iron	for taper bush 2012	90	229,18	110	227,81	-	204	28	32	on request

Toothed pulleys profile HTD 8M, for mounting with taper clamping bushes, for 30 mm wide belts

More information

Drawings

Item selection/filter

Order No.	Form	Main material	Version 2	No. of teeth	D	D1 max.	D3	D4 max.	D5	B	L	Price
22005-0830022	D	grey cast iron	for taper bush 1008	22	56,02	-	54,65	62	38	38	22	on request
22005-0830024	D	grey cast iron	for taper bush 1108	24	61,12	-	59,74	67	42	38	22	on request
22005-0830026	D	grey cast iron	for taper bush 1108	26	66,21	-	64,84	73	45	38	22	on request
22005-0830028	D	grey cast iron	for taper bush 1108	28	71,3	-	69,93	77	52	38	22	on request
22005-0830030	H	grey cast iron	for taper bush 1615	30	76,39	-	75,02	84	-	38	38	on request
22005-0830032	H	grey cast iron	for taper bush 1615	32	81,49	-	80,12	88	-	38	38	on request
22005-0830034	H	grey cast iron	for taper bush 1615	34	86,58	-	85,21	94	-	38	38	on request
22005-0830036	H	grey cast iron	for taper bush 1615	36	91,67	-	90,3	98	-	38	38	on request
22005-0830038	H	grey cast iron	for taper bush 1615	38	96,77	-	95,39	104	-	38	38	on request
22005-0830040	H	grey cast iron	for taper bush 1615	40	101,86	-	100,49	108	-	38	38	on request
22005-0830044	B	grey cast iron	for taper bush 2012	44	112,05	-	110,67	121	90	38	32	on request
22005-0830048	B	grey cast iron	for taper bush 2012	48	122,23	-	120,86	129	98	38	32	on request
22005-0830056	B	grey cast iron	for taper bush 2012	56	142,6	-	141,23	150	118	38	32	on request
22005-0830064	F	grey cast iron	for taper bush 2517	64	162,97	125	161,6	168	140	38	45	on request
22005-0830072	F	grey cast iron	for taper bush 2517	72	183,35	125	181,97	192	158	38	45	on request
22005-0830080	I	grey cast iron	for taper bush 2517	80	203,74	125	202,35	-	178	38	45	on request
22005-0830090	L	grey cast iron	for taper bush 2517	90	229,18	125	227,81	-	204	38	45	on request
22005-0830112	L	grey cast iron	for taper bush 2517	112	285,21	125	283,83	-	260	38	45	on request
22005-0830144	L	grey cast iron	for taper bush 2517	144	366,69	125	365,32	-	341	38	45	on request

Toothed pulleys profile HTD 8M, for mounting with taper clamping bushes, for 50 mm wide belts

More information

Drawings

Item selection/filter

Order No.	Form	Main material	Version 2	No. of teeth	D	D1 max.	D3	D4 max.	D5	B	L	Price
22005-0850028	B	grey cast iron	for taper bush 1108	28	71,3	-	69,93	77	52	60	22	on request
22005-0850030	D	grey cast iron	for taper bush 1615	30	76,39	-	75,02	84	58	60	38	on request
22005-0850032	D	grey cast iron	for taper bush 1615	32	81,49	-	80,12	88	60	60	38	on request
22005-0850034	D	grey cast iron	for taper bush 1615	34	86,58	-	85,21	94	66	60	38	on request
22005-0850036	D	grey cast iron	for taper bush 1615	36	91,67	-	90,3	98	68	60	38	on request
22005-0850038	D	grey cast iron	for taper bush 1615	38	96,77	-	95,39	104	75	60	38	on request
22005-0850040	B	grey cast iron	for taper bush 2012	40	101,86	-	100,49	108	80	60	32	on request
22005-0850044	B	grey cast iron	for taper bush 2012	44	112,05	-	110,67	121	90	60	32	on request
22005-0850048	B	grey cast iron	for taper bush 2012	48	122,23	-	120,86	129	100	60	32	on request
22005-0850056	B	grey cast iron	for taper bush 2517	56	142,6	-	141,23	150	120	60	45	on request
22005-0850064	E	grey cast iron	for taper bush 2517	64	162,97	120	161,6	168	138	60	45	on request
22005-0850072	E	grey cast iron	for taper bush 2517	72	183,35	125	181,97	192	158	60	45	on request
22005-0850080	G	grey cast iron	for taper bush 3020	80	203,74	170	202,35	-	178	60	51	on request
22005-0850090	G	grey cast iron	for taper bush 3020	90	229,18	170	227,81	-	204	60	51	on request
22005-0850112	N	grey cast iron	for taper bush 3020	112	285,21	170	283,83	-	260	60	51	on request
22005-0850144	N	grey cast iron	for taper bush 3020	144	366,69	170	365,32	-	341	60	51	on request
22005-0850168	N	grey cast iron	for taper bush 3020	168	427,8	198	426,42	-	402	60	51	on request
22005-0850192	N	grey cast iron	for taper bush 3020	192	488,92	198	487,54	-	462	60	51	on request
