DescriptionMaterial:Housing die-cast zinc. Bevel gears steel.Version:Housing bright. Bevel gears surface hardened. Ball bearing with sealing washer RS.Note:Universally applicable and maintenance-free bevel gear, particularly suitable for drives with electric motors. The housing is sealed to prevent grease leakage and keep dust out. Can be mounted in any position. The rotation direction is arbitrary.
Drive and output over a hexagon socket.

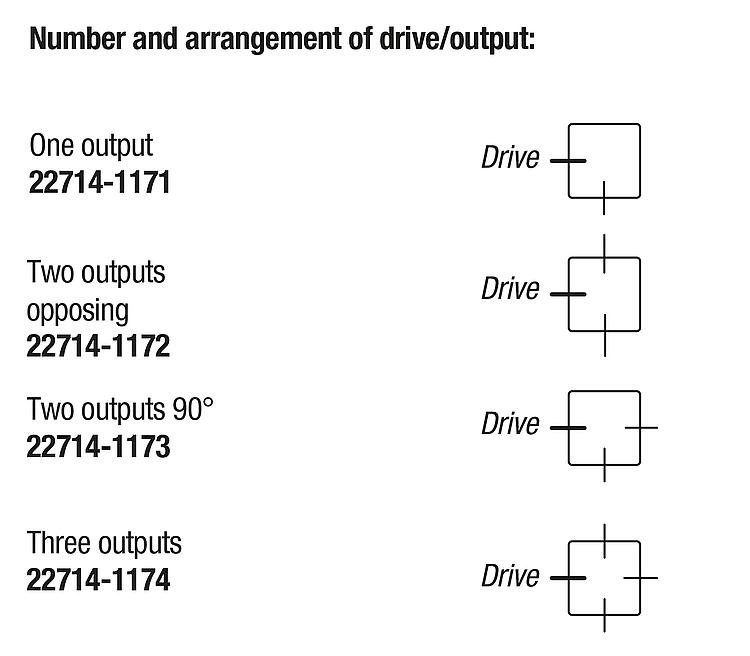

This bevel gear transmission is ideal for use as a diversion drive, distribution transmission or gear reducer for electric motors; e.g. for louvre or actuators in special machine constructions.Technical data:Duty cycle: 20% (at 5 min.)Temperature range:-20 °C to +40 °C.Drawing reference:
1) For DIN 7500 M5 self-tapping screws.
Special features:
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
