        Elastomer dog couplings with conical hub and clamping ring (similar to DIN 69002)

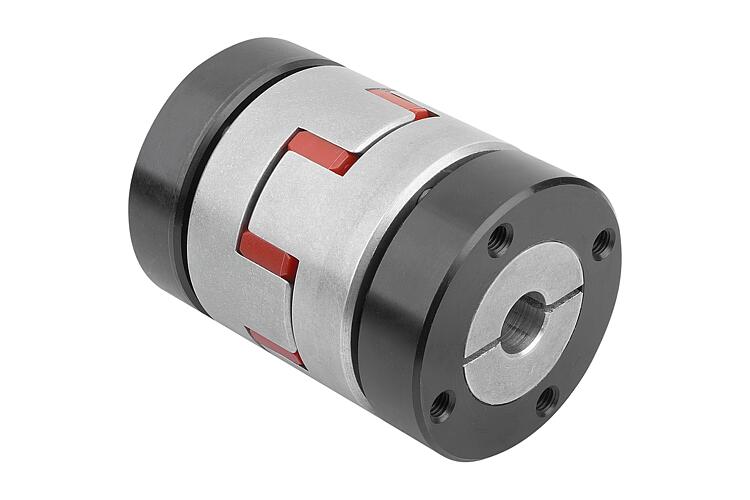

Item description/product images

DescriptionMaterial:Spider polyurethane hardness Shore 98A.
Hub aluminium.
Conical ring carbon steel.Note:This coupling series is particularly suitable for use in high speed main spindle or drill spindle drives. Before the plug-in assembly, both clamping ring hubs must be fastened to the shafts with the correct tightening torque. Lightly oil the spider to ease assembly.Assembly:The shaft to hub bore fit should be a transition fit. The play should be max. 0.02 mm. i.e:
shaft Ø 25 k6
bore Ø 25 G6.
Bores smaller than D1/D2 min. are possible, however an optimal transfer of the nominal torque is no longer guaranteed.

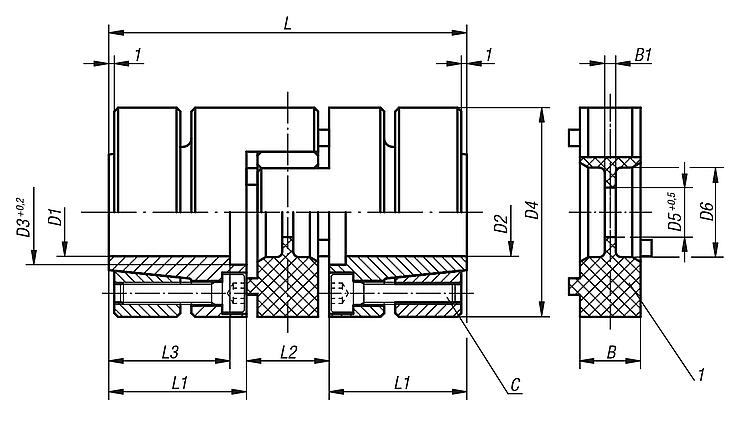

On request:Hub bores D1 and D2 with separate tolerance class or range.Drawing reference:

1) elastomer spider

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 23021 Elastomer dog couplings with conical hub and clamping ring (similar to DIN 69002)

169 kB

Technical information about shaft couplings

2,3 MB

Drawings

Overview of items (compressed)

Item selection/filter

	10 17 43 60 150 320 500 700	10 17 43 60 150 320 500 700	0,015 0,05 0,19 0,28 0,65 2 5,6 13	0,04 0,24 0,4 0,6 1,05 2 5,8 8	0,5 1	0,1 0,12 0,15	600 2100 2500 2600 3300 4500 5900 7000	2 3 6 30 50 100	30000 24000 19000 17500 15000 12000 9500 8000				Reset
Order No.	Size	Nominal torque Nm	Moment of inertia (10⁻³ kgm²)	Static resistance to torsion Nm/arcmin	Max. axial shaft displacement ±	Max. lateral shaft displacement	Radial spring stiffness N/mm	Tightening torque of screws Nm	max. rpm	CAD	Acc.	Price	Order
23021-010	10	10	0,015	0,04	0,5	0,1	600	2	30000			on request
23021-017	17	17	0,05	0,24	0,5	0,1	2100	3	24000			on request
23021-043	43	43	0,19	0,4	0,5	0,1	2500	6	19000			on request
23021-060	60	60	0,28	0,6	0,5	0,1	2600	6	17500			on request
23021-150	150	150	0,65	1,05	1	0,1	3300	6	15000			on request
23021-320	320	320	2	2	1	0,12	4500	30	12000			on request
23021-500	500	500	5,6	5,8	1	0,15	5900	50	9500			on request
23021-700	700	700	13	8	1	0,15	7000	100	8000			on request

	6 9 10 12 18 20 24	6 9 12 17 20 22 25	14 19 24 26 36 40 48 60	17 22 29 30 40 46 58 72	32 40 50 55 65 80 100 120	8,5 9,5 12,5 14,5 16,5 20,5 22,5	10,5 18 27 30 38 47 58	50 66 78 90 114 138 155	18,5 25 30 35 45 55 61	13 16 18 20 24 28 33	15,5 21 25 30 40 49 54	10 12 14 15 18 22 25	2 3 4 5 6	4x M3 6x M4 4x M5 8x M5 4x M8 4x M10 4x M12				Reset
Order No.	D1/D2 predrilled	D1/D2 min.	D1/D2 max.	D3	D4	D5	D6	L	L1	L2	L3	B	B1	C (DIN 912-12.9)	CAD	Acc.	Price	Order
23021-010	6	6	14	17	32	8,5	10,5	50	18,5	13	15,5	10	2	4x M3			on request
23021-017	9	9	19	22	40	9,5	18	66	25	16	21	12	3	6x M4			on request
23021-043	10	12	24	29	50	12,5	27	78	30	18	25	14	3	4x M5			on request
23021-060	12	12	26	30	55	12,5	27	78	30	18	25	14	3	4x M5			on request
23021-150	12	17	36	40	65	14,5	30	90	35	20	30	15	4	8x M5			on request
23021-320	18	20	40	46	80	16,5	38	114	45	24	40	18	4	4x M8			on request
23021-500	20	22	48	58	100	20,5	47	138	55	28	49	22	5	4x M10			on request
23021-700	24	25	60	72	120	22,5	58	155	61	33	54	25	6	4x M12			on request
