        Elastomer dog couplings with radial clamping hub

Item description/product images

DescriptionMaterial:Spider polyurethane hardness Shore 98A.
Hub aluminium.Version:Bright.Note:Radial clamping of the hub for short mounting times. The couplings can be mounted completely assembled or a plug-in assembly is also possible. Lightly oil the spider to ease assembly. Take note of the require tightening torque for the clamping screw.Assembly:The shaft to hub bore fit is a transition fit. The play should be min. 0.01 mm and max. 0.04 mm i.e.
shaft: Ø 28 k6
hub: Ø 28 F6

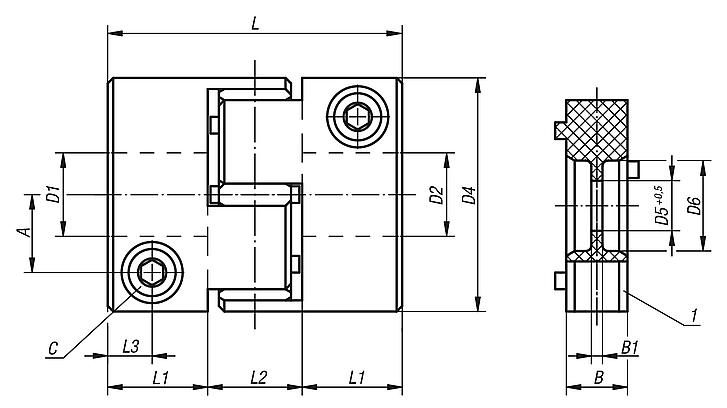

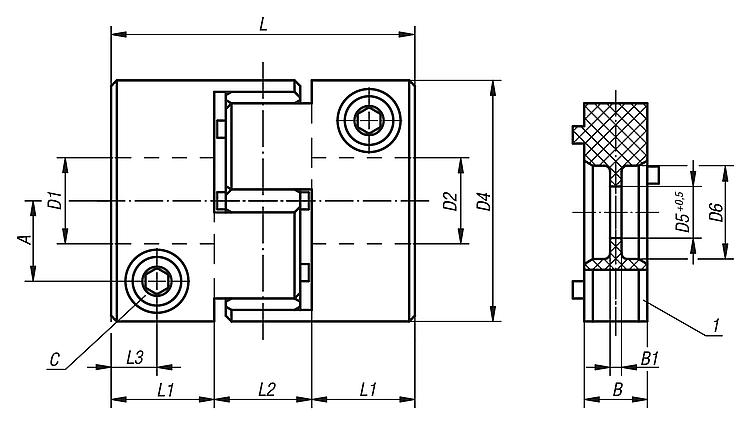

Bores smaller than D1/D2 min. are possible, however an optimal transfer of the couplings nominal torque is no longer guaranteed.On request:Hub bores D1 and D2 with separate tolerance class or range.Drawing reference:

1) elastomer spider

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 23022 Elastomer dog couplings with radial clamping hub

150 kB

Technical information about shaft couplings

2,3 MB

Drawings

Overview of items (compressed)

Item selection/filter

	2 5 8 15 30 60 150 300 500 700	2 5 8 15 30 60 150 300 500 700	0,00016 0,0011 0,01 0,03 0,09 0,18 0,38 1 2,2 5,2	0,007 0,016 0,04 0,24 0,41 0,61 1,05 2 5,8 8	0,6 0,8 0,5 1	0,1 0,12 0,15	405 510 600 2100 2500 2600 3300 4500 5900 7000	0,5 1 4 8 14 35 67 115 185				Reset
Order No.	Size	Nominal torque Nm	Moment of inertia (10⁻³ kgm²)	Static resistance to torsion Nm/arcmin	Max. axial shaft displacement ±	Max. lateral shaft displacement	Radial spring stiffness N/mm	Tightening torque of screws Nm	CAD	Acc.	Price	Order
23022-002	2	2	0,00016	0,007	0,6	0,1	405	0,5			on request
23022-005	5	5	0,0011	0,016	0,8	0,1	510	1			on request
23022-008	8	8	0,01	0,04	0,5	0,1	600	4			on request
23022-015	15	15	0,03	0,24	0,5	0,1	2100	8			on request
23022-030	30	30	0,09	0,41	0,5	0,1	2500	14			on request
23022-060	60	60	0,18	0,61	0,5	0,1	2600	35			on request
23022-150	150	150	0,38	1,05	1	0,1	3300	67			on request
23022-300	300	300	1	2	1	0,12	4500	115			on request
23022-500	500	500	2,2	5,8	1	0,15	5900	115			on request
23022-700	700	700	5,2	8	1	0,15	7000	185			on request

	3 5 6 7 9 12 15 18 20 24	3 5 8 10 13 15 22 30 38 40	5 8 15 20 26 29 33 42 56 70	14 20 32 40 50 60 70 85 100 120	- 8,5 9,5 12,5 14,5 16,5 20,5 22,5	- 10,5 18 27 30 38 47 58	4 6,5 10,5 13,5 16,5 19,5 23 29 36 44	22 30 40 50 58 62 73 86 94 109	7 10 13,5 17 20 22 26,5 31 33 38	8 10 13 16 18 20 24 28 33	3,5 5 6 8 9 10 12 14 16 18	6 8 10 12 14 15 18 22 25	- 2 3 4 5 6	M2 M2,5 M4 M5 M6 M8 M10 M12 M14				Reset
Order No.	D1/D2 predrilled	D1/D2 min.	D1/D2 max.	D4	D5	D6	A	L	L1	L2	L3	B	B1	C DIN 912-10.9	CAD	Acc.	Price	Order
23022-002	3	3	5	14	-	-	4	22	7	8	3,5	6	-	M2			on request
23022-005	5	5	8	20	-	-	6,5	30	10	10	5	8	-	M2,5			on request
23022-008	6	8	15	32	8,5	10,5	10,5	40	13,5	13	6	10	2	M4			on request
23022-015	7	10	20	40	9,5	18	13,5	50	17	16	8	12	3	M5			on request
23022-030	9	13	26	50	12,5	27	16,5	58	20	18	9	14	3	M6			on request
23022-060	12	15	29	60	12,5	27	19,5	62	22	18	10	14	3	M8			on request
23022-150	15	22	33	70	14,5	30	23	73	26,5	20	12	15	4	M10			on request
23022-300	18	30	42	85	16,5	38	29	86	31	24	14	18	4	M12			on request
23022-500	20	38	56	100	20,5	47	36	94	33	28	16	22	5	M12			on request
23022-700	24	40	70	120	22,5	58	44	109	38	33	18	25	6	M14			on request
