        Thrust washers

Item description/product images

DescriptionMaterial:Base material, steel.
Intermediate layer sintered bronze.
Bearing surface PTFE.Version:Steel tin-plated.Note:Maintenance-free steel composite bearings particularly suitable for dry running. Also highly suitable for lubricated applications (oil lubrication). They take up axial loads by rotating movements. The axial loads that occur can be both cyclic or permanent. Very low wear and friction, no stick-slip effect. High chemical resistance, low water absorption.Technical data:Static load: max. 250 N/mm²
Dynamic load: max. 140 N/mm²
Friction coefficient, dry: 0.03 to 0.20
Sliding speed, dry: max. 2 m/s
Sliding speed, oil lubricated: max. 5 m/s
Thermal conductivity: 42 W(m*K)-1
Thermal expansion coefficient: 11*10-6 K-1
Temperature range: -195°C to +280°CSpecial features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 23732 Thrust washers

206 kB

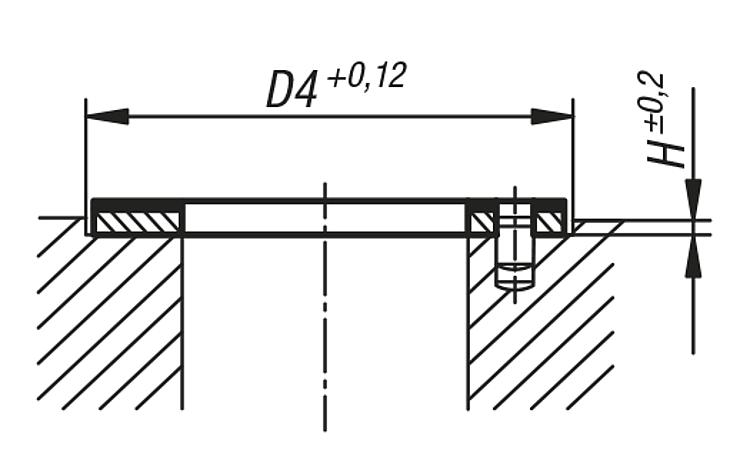

Drawings

Item selection/filter

Order No.	D	D1	D2	D3	D4	H	S	Price
23732-01002015	10	20	15	1,5	20	1	1,5	on request
23732-01202415	12	24	18	1,5	24	1	1,5	on request
23732-01402615	14	26	20	2	26	1	1,5	on request
23732-01603015	16	30	23	2	30	1	1,5	on request
23732-01803215	18	32	25	2	32	1	1,5	on request
23732-02003615	20	36	28	3	36	1	1,5	on request
23732-02203815	22	38	30	3	38	1	1,5	on request
23732-02404215	24	42	33	3	42	1	1,5	on request
23732-02604415	26	44	35	3	44	1	1,5	on request
23732-02804815	28	48	38	4	48	1	1,5	on request
23732-03205415	32	54	43	4	54	1	1,5	on request
23732-03806215	38	62	50	4	62	1	1,5	on request
23732-04206615	42	66	54	4	66	1	1,5	on request
23732-04807420	48	74	61	4	74	1,5	2	on request
23732-05207820	52	78	65	4	78	1,5	2	on request
23732-06209020	62	90	76	4	90	1,5	2	on request
